Long belt polishing machine by pad for flat surfaces
Feature

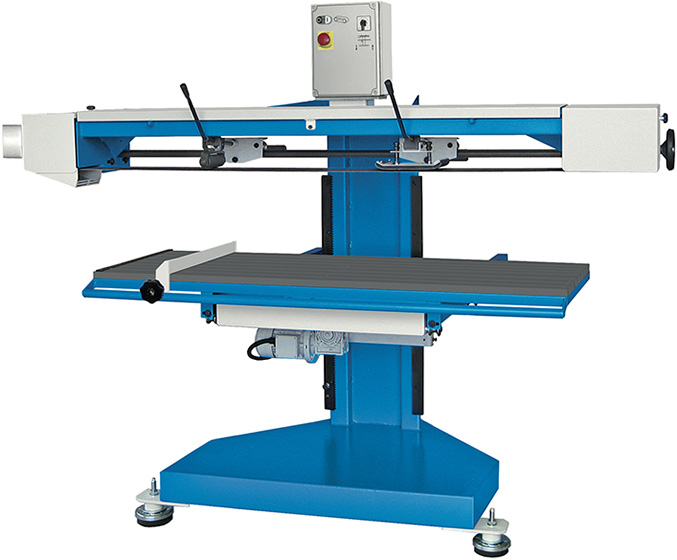

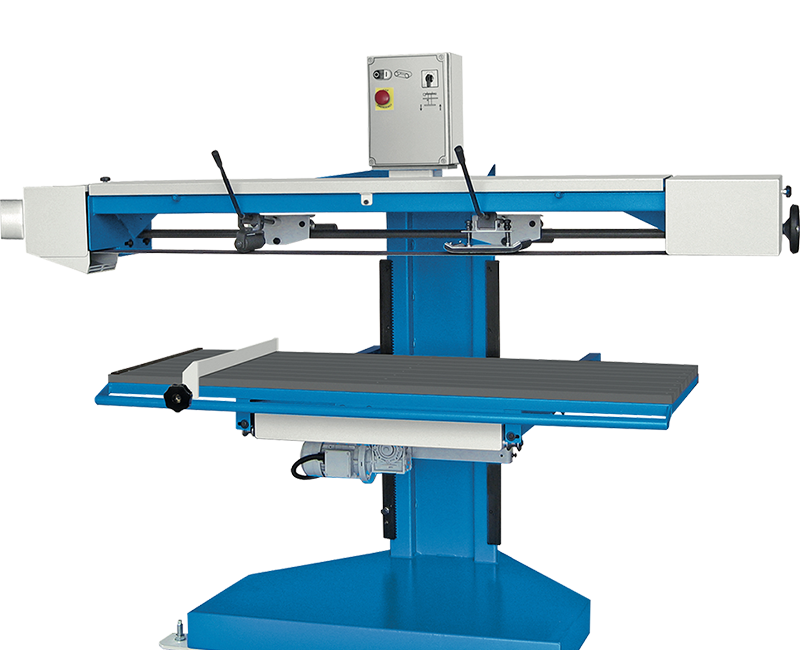

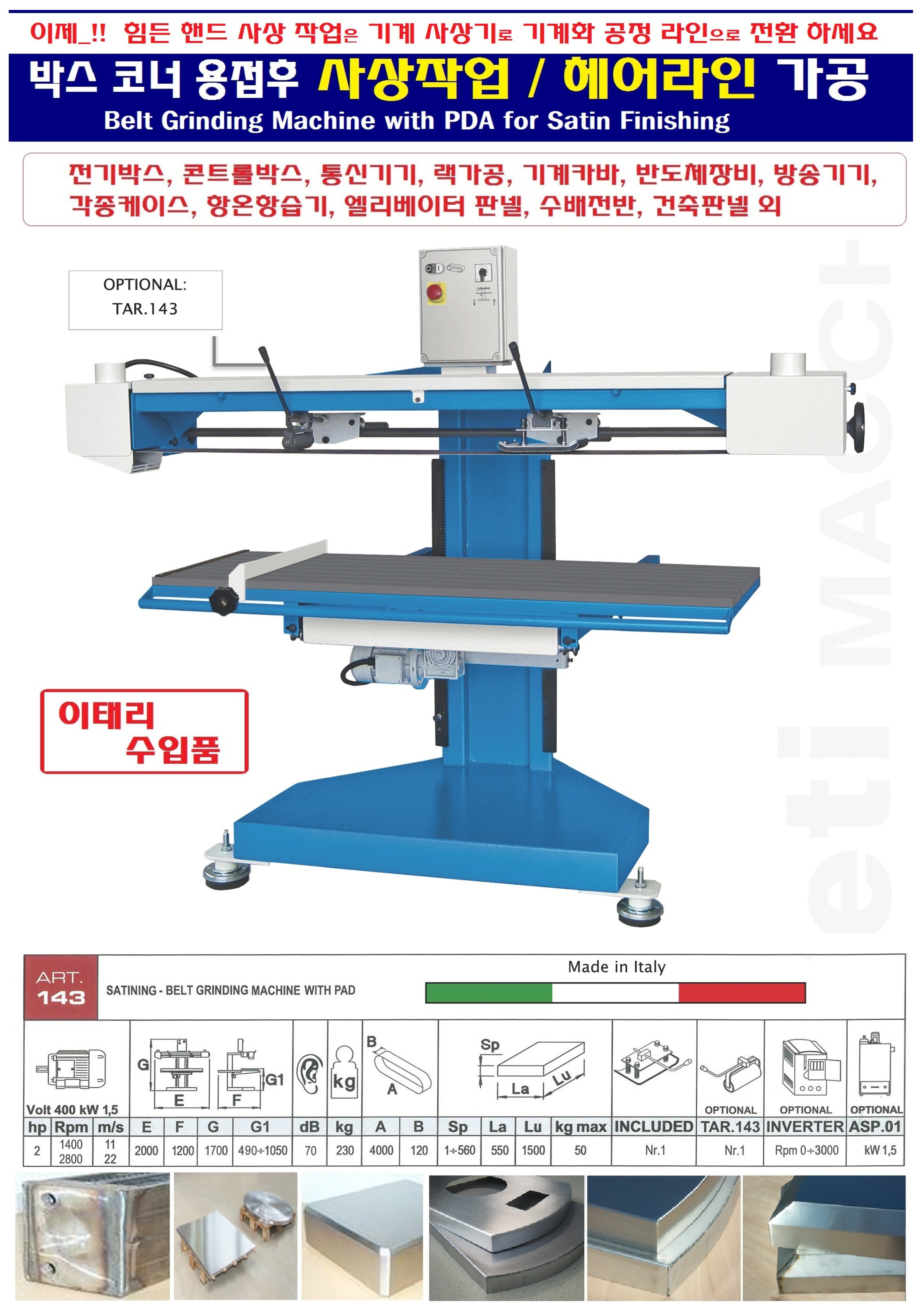

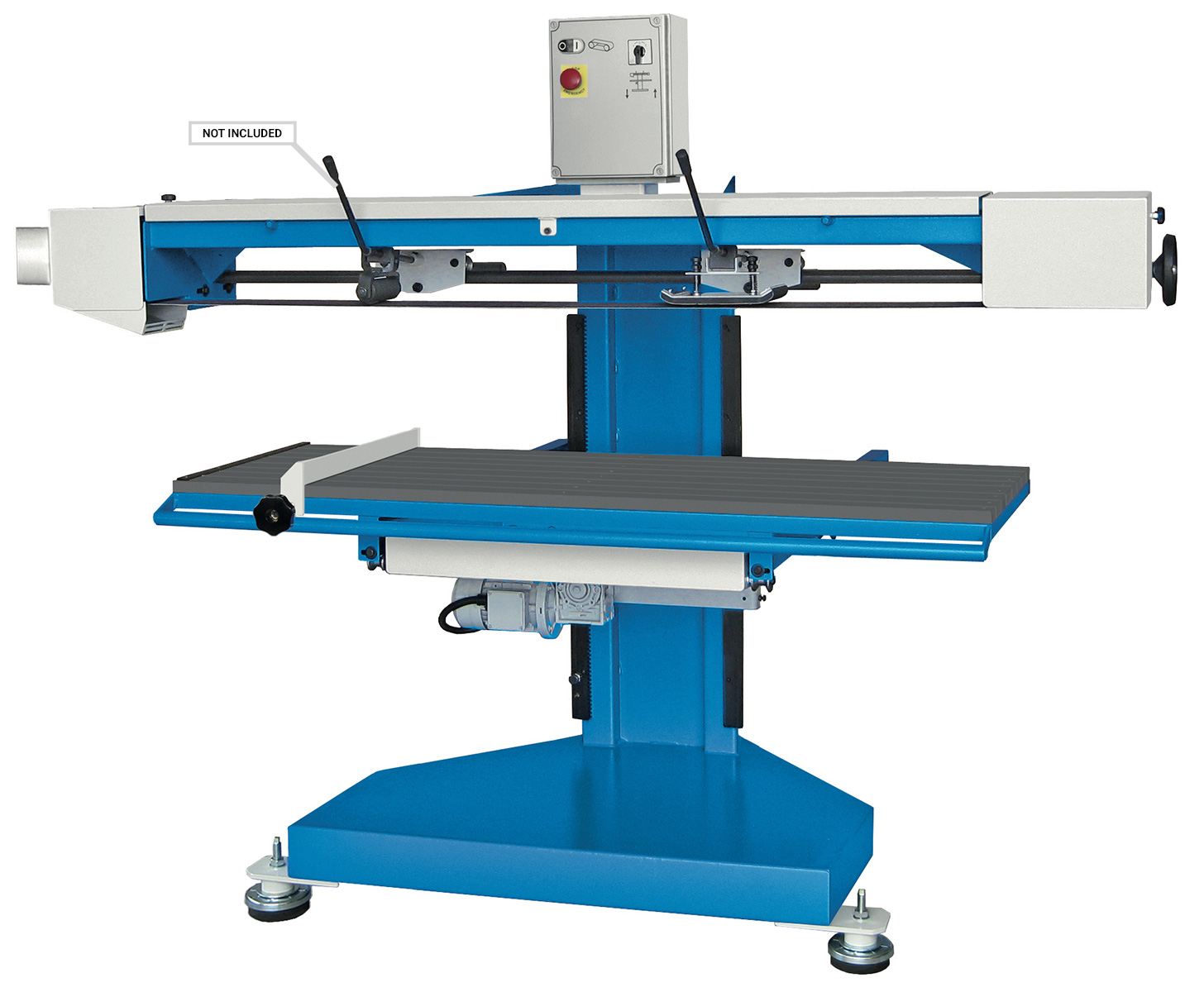

The ART.143 pad polishing machine allows to carry out finishing and satin finishing operations on flat surfaces such as plates and sheets, bars and tubulars with square or rectangular section, and above all of large dimensions such as carters, boxes, fairings. In addition to sanding, satin finishing and finishing in general, it is possible to carry out grinding and deburring operations on shear cut parts or with thermal cutting such as oxy-fuel and laser cutting. It is also possible to carry out deburring to remove weld seams on molded boxes and fairings. Belts of any type of abrasive grain (corundum, zirconium, ceramic, diamond, agglomerate, cork, Trizact, Scotch-Brite etc. etc.) can be mounted to obtain different finishing qualities. The processing of the details takes place by means of an abrasive belt and a pad that is moved manually by the operator. The parts to be machined are positioned on the support table which is covered with fireproof material and is electrically motorized to adjust the height according to the thickness of the parts. The machine can be equipped with various options in addition to all the various ones
Single belt grinding machine type for lighter work pieces
The starter machine for ergonomic grinding of smaller parts and lot sizes.

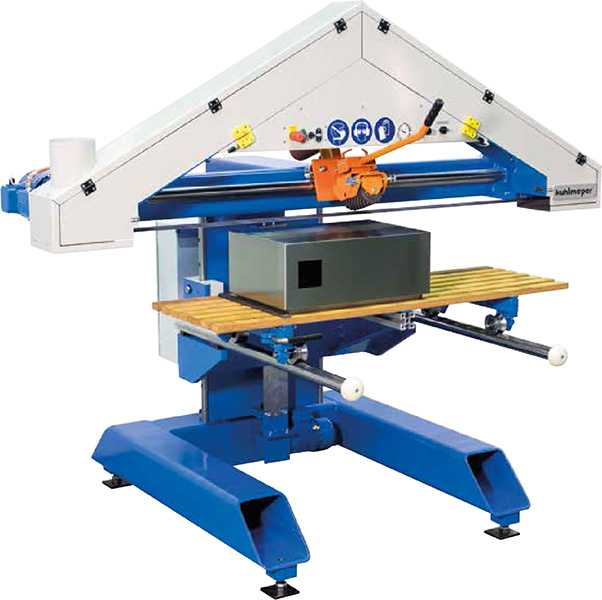

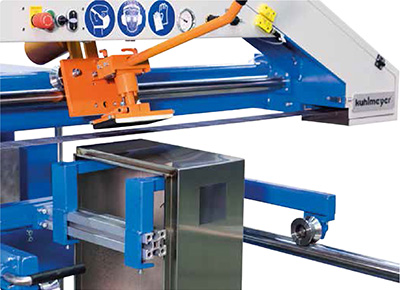

The EBS-Compact is designed for grinding welded edges, corners and surfaces of smaller components. By easy replacement of the grinding belt the machineis rapidly changed between roughing and nishing process. The compact design allows the integration of the machine into existing production areas. The main advantage is the easy and ergonomic grinding with the maximum quality by the precise Kuhlmeyer-technology and experience.

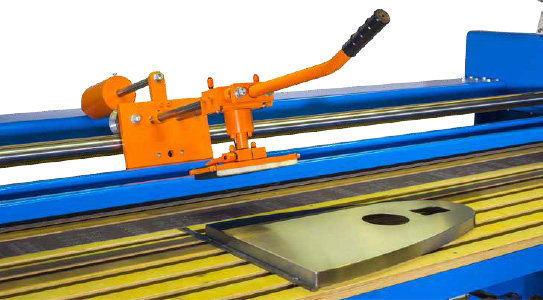

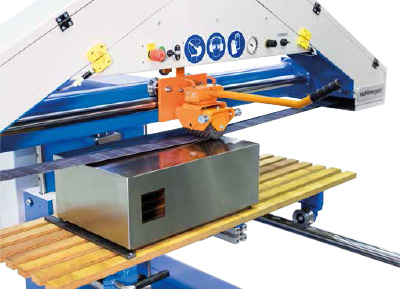

Working area with jib table, removable wooden bars and contact drum.Flat pressure piece changeable by quick coupling, jib arm with workpiece fixture.

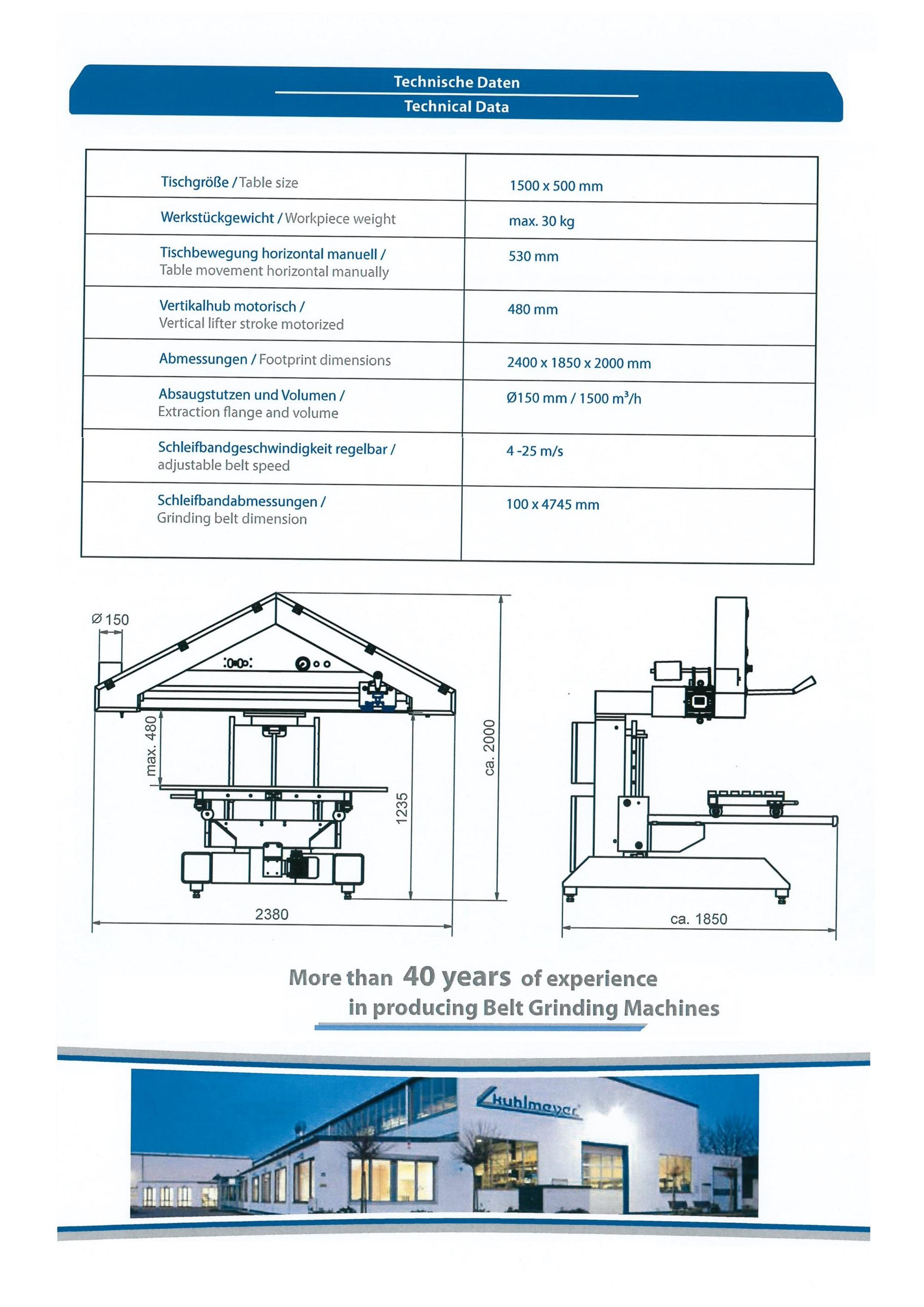

항목
사양
Table size
1,500 × 500 ㎜
Workpiece weigh
Max. 30㎏
Table movement horizontal manually
530 ㎜
Vertical lifter stroke motorized
480 ㎜
Footprint dimensions
2,400 × 1,850 × 2,000 ㎜
Extraction flange and volume
Ø150㎜ und 1,500m³/h
Adjustable belt speed
4~25 m/s
Grinding belt dimension
100 × 4,745 ㎜
Deburring Unit
Additional carriage with deburring unit
Unit with flange diameter 125 mm and quick connection for di fferent brushing heads
Twin belt grinding machine with work piece handling device

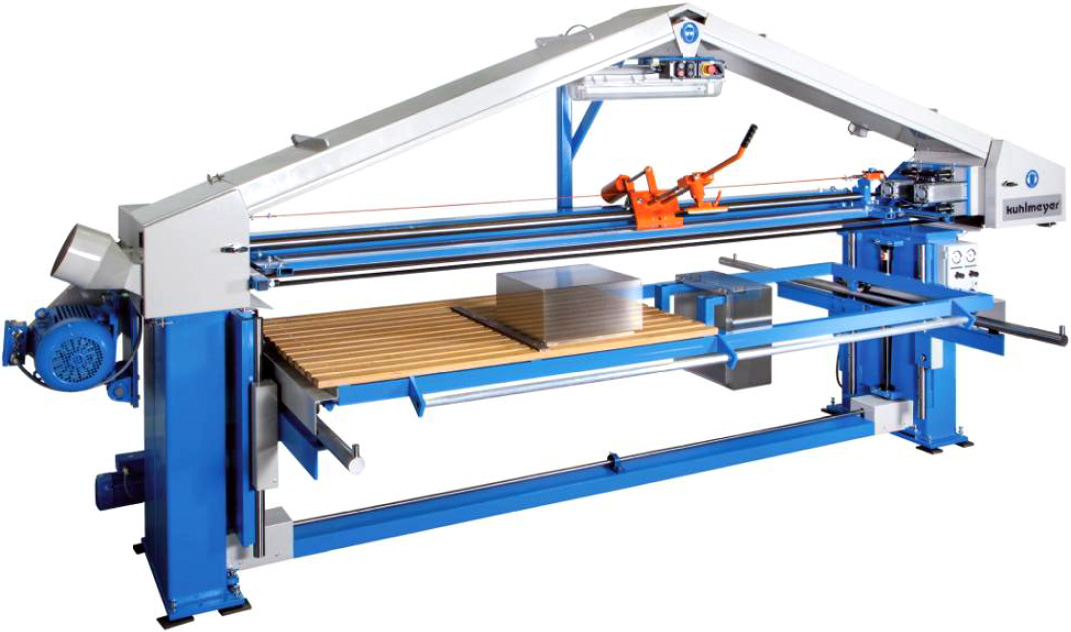

The Twin Belt Grinding Machine is built for the roughing and finishing on welded edges, corners and surfaces on flat and mid-size workpieces out of steel, stainless steel, and aluminum, i.e. doors, frames, cabinets, housings, hoods, furniture parts, frame parts in automotive and aircraft – manufacturing, round bins, cylinders, heaters etc.
Twin-Belt grinding machinee with work piece handling device

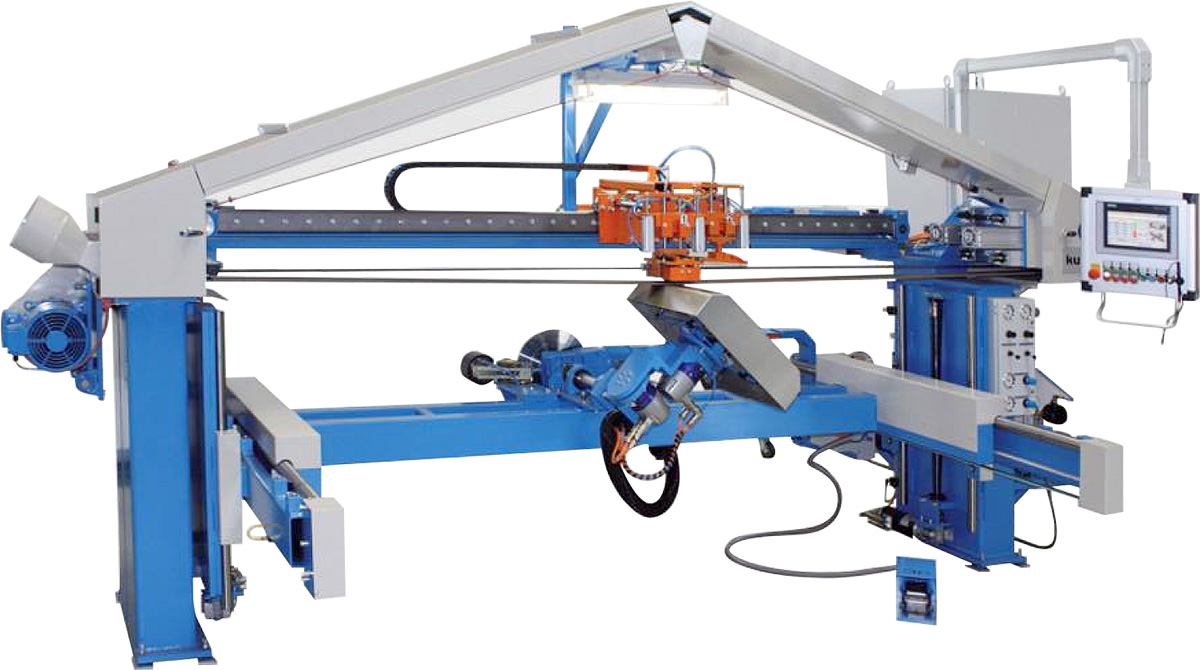

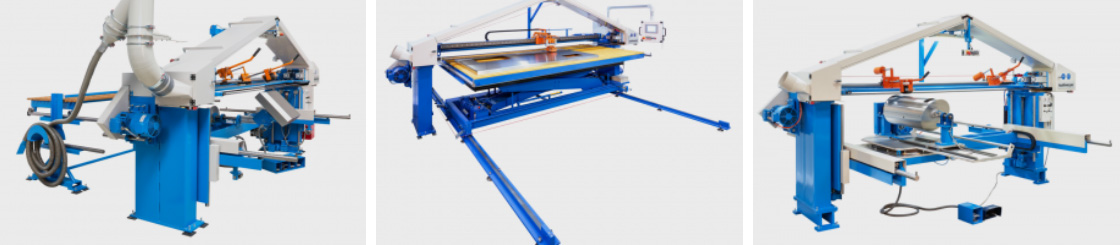

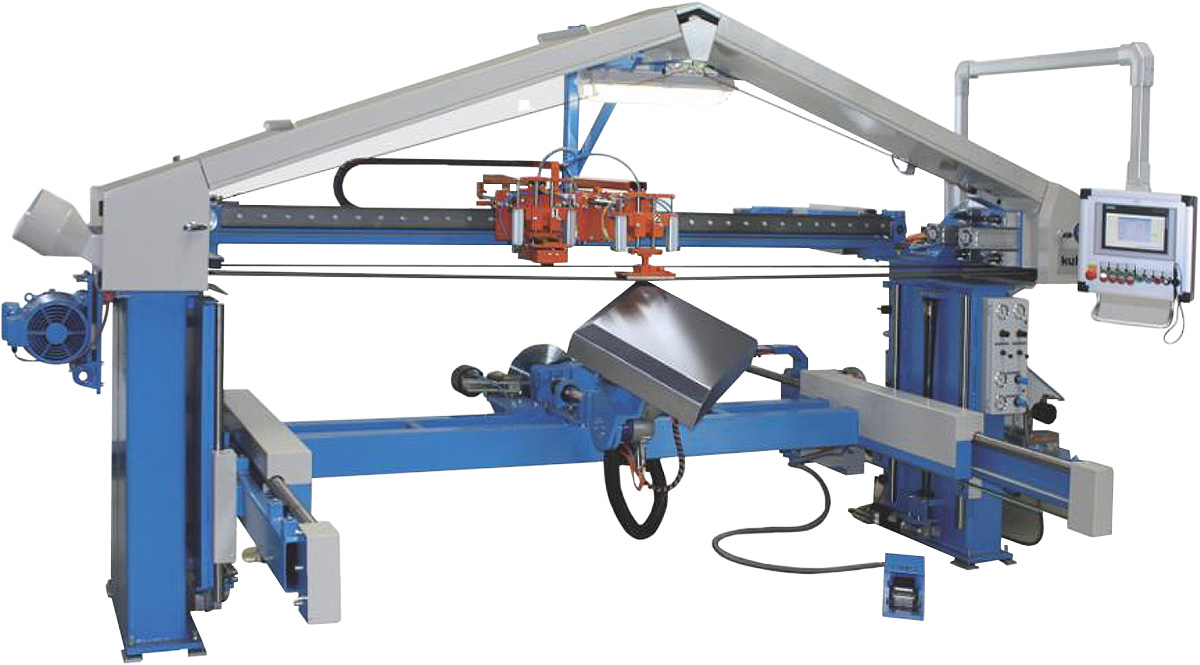

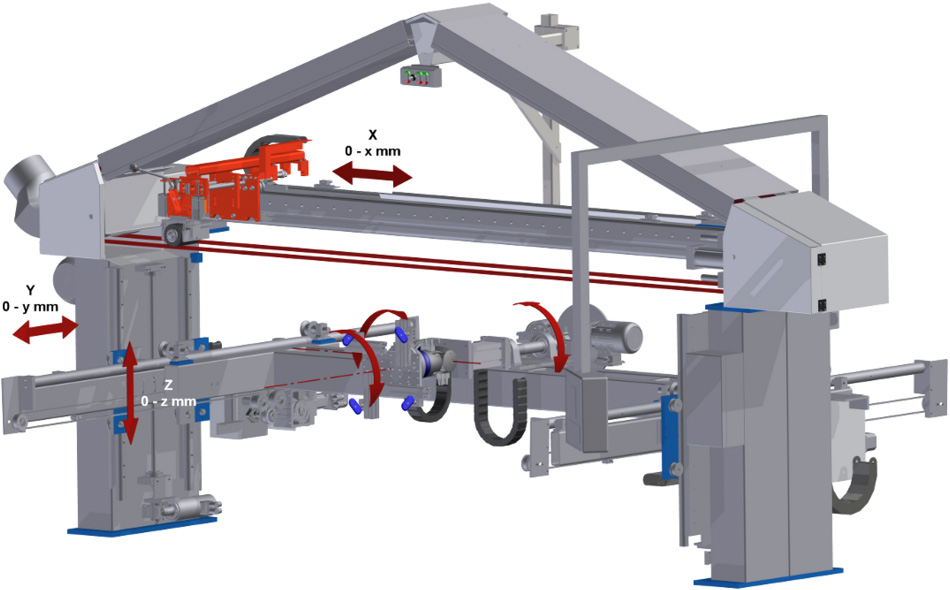

The Twin-Belt Grinding Machine ZBS and even the Portal Twin-Belt Grinding Machine PZM with the Robotec Handling are built for the automatic roughing and finishing on automatically welded parts, out of steel, stainless steel, and aluminum. The high automated solution will reduce the working time per piece by approx. 65%.
DBS

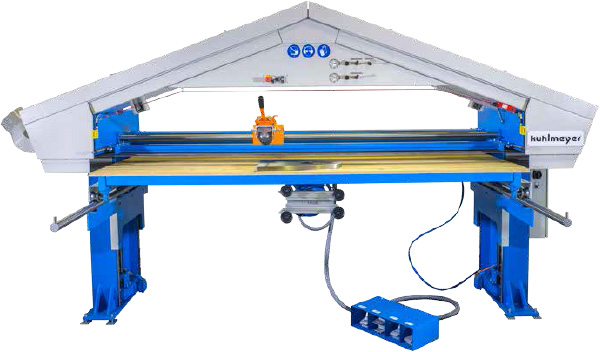

Dual belt grinding machine type with work piece handling device
The starter machine for ergonomic grinding of small parts
Our approved Series of Twin-Belt Grinding Machines Type ZBS and PZM will be completed by this basic machine. Sophisticated technology and experience are integrated in the new development. All necessary features are also part of the KUHLMEYER DBS concept and well accessible for the operator
The EBS-Compact is designed for grinding welded edges, corners and surfaces of small components out of steel or stainless steel. By easy replacement of the grinding belt the machine is rapidly changed between roughing and finishing process.
The compact design allows the integration of the machine into existing production areas. The main advantage is the easy and ergonomic grinding with the maximum quality by the precise Kuhlmeyer-technology and experience

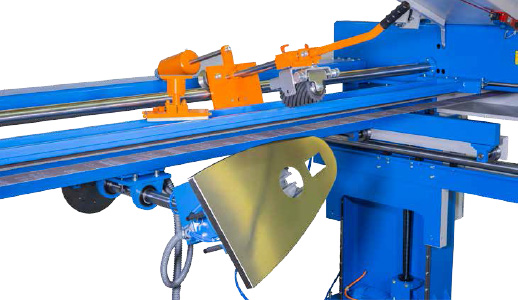

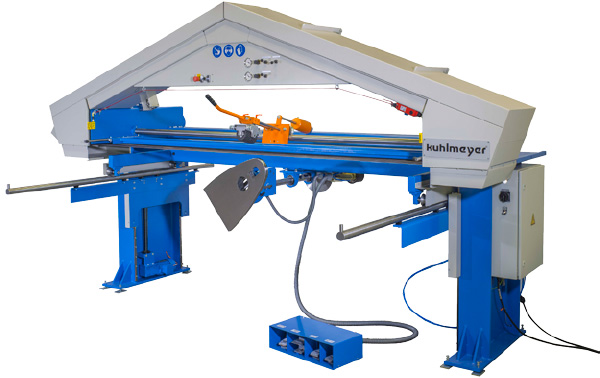

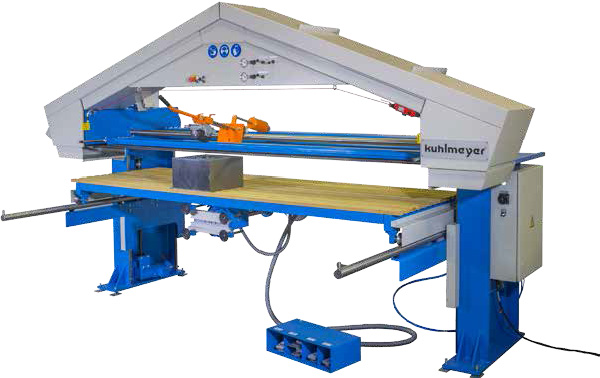

DBS with wooden layer tableDBS with partially removed table and released handling device
