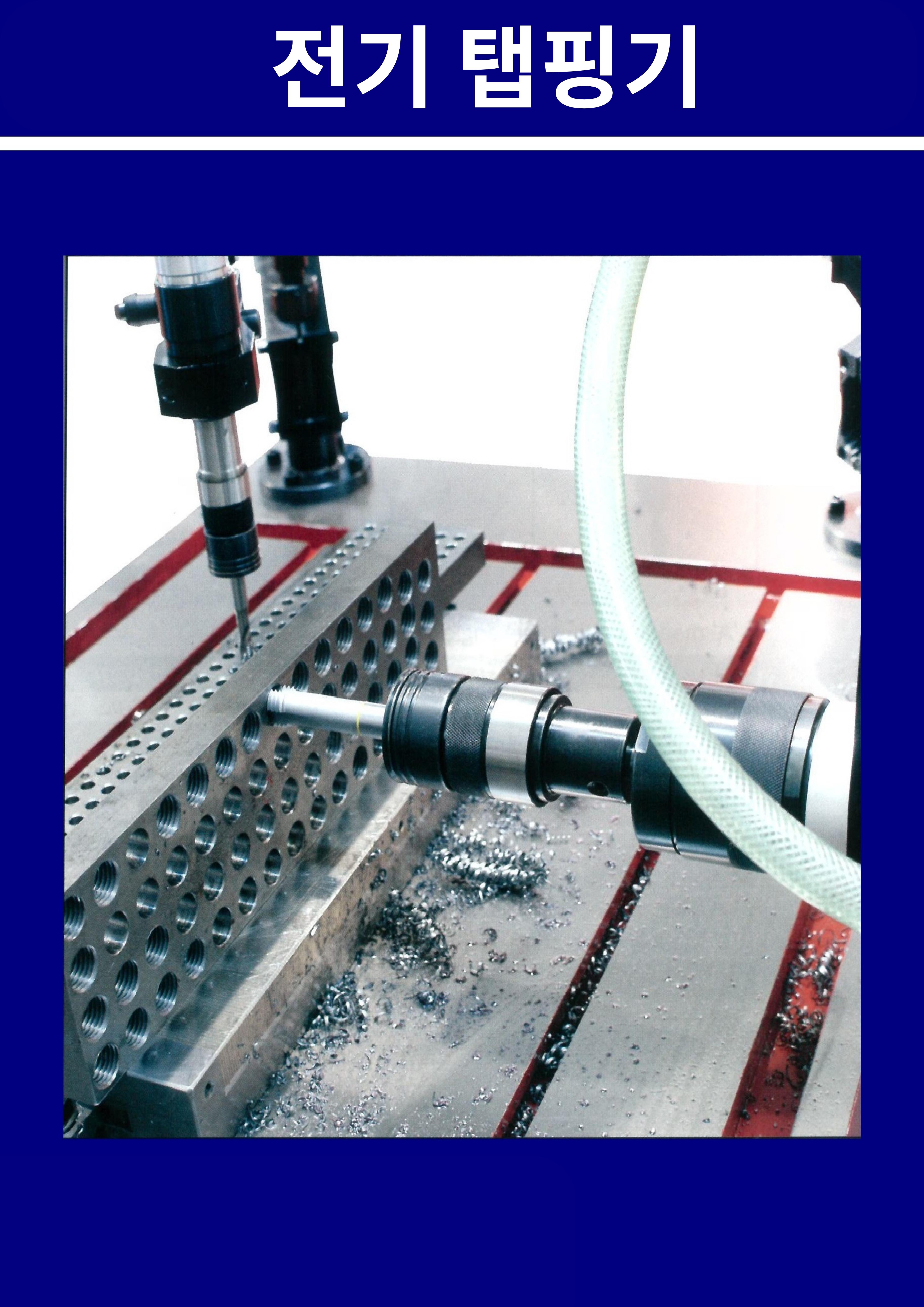

전기 탭핑 머신
Electricity Tapping M/C
전기 탭핑 머신

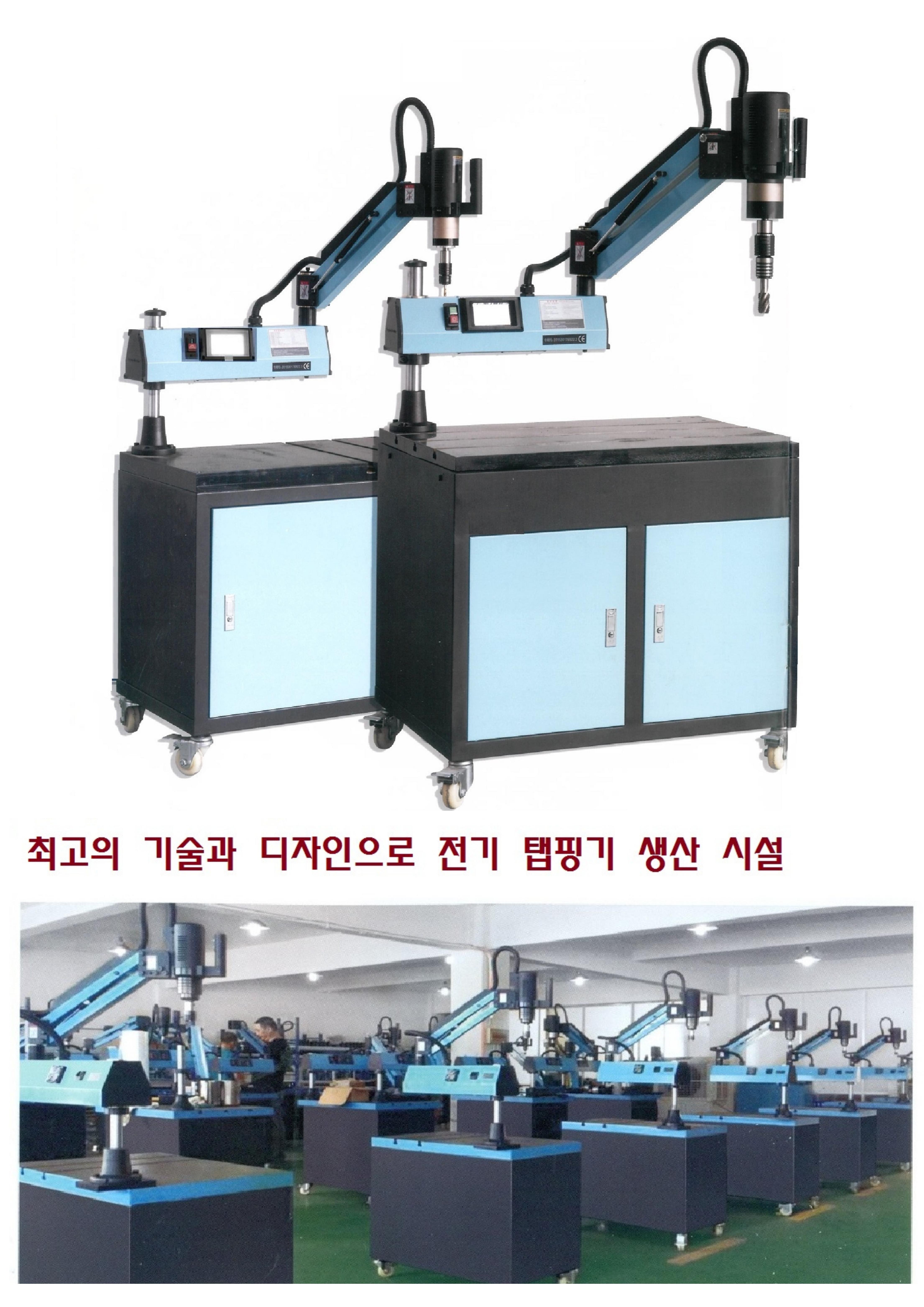

- 최고의 기술과 디자인
- 에어식 탭핑 머신모다 2배 빠른 속도

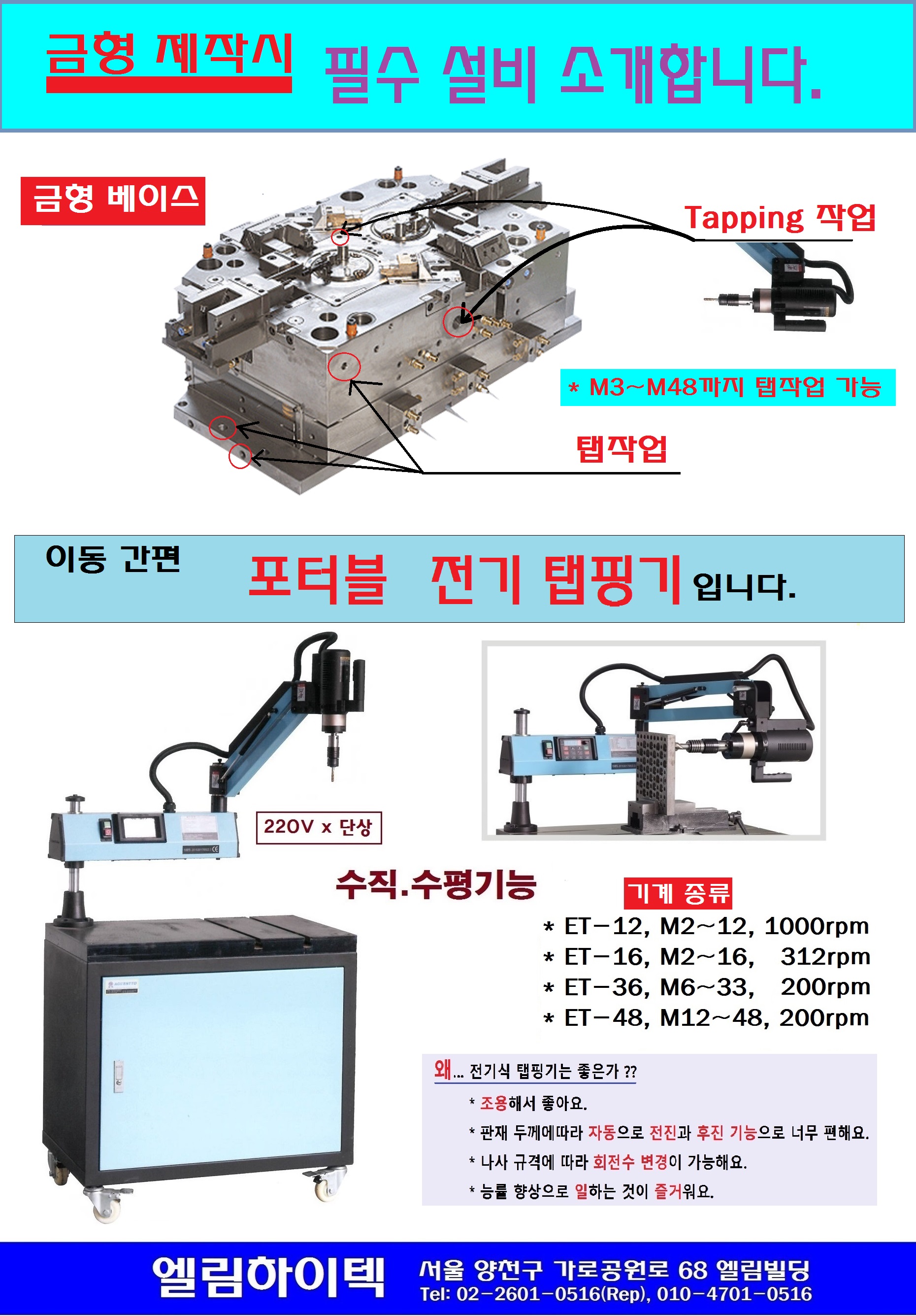

- 이동이 간편한 포터블 전기 탭핑 머신
- 수직/수평 기능
전기식 특징
- 특징
-
- 저소음·저비용
- 판재 두께에 따라 자동으로 전진·후진
- 나사 규격에 따라 회전수 변경 가능
- 작업 능률 향상
모델별 사양

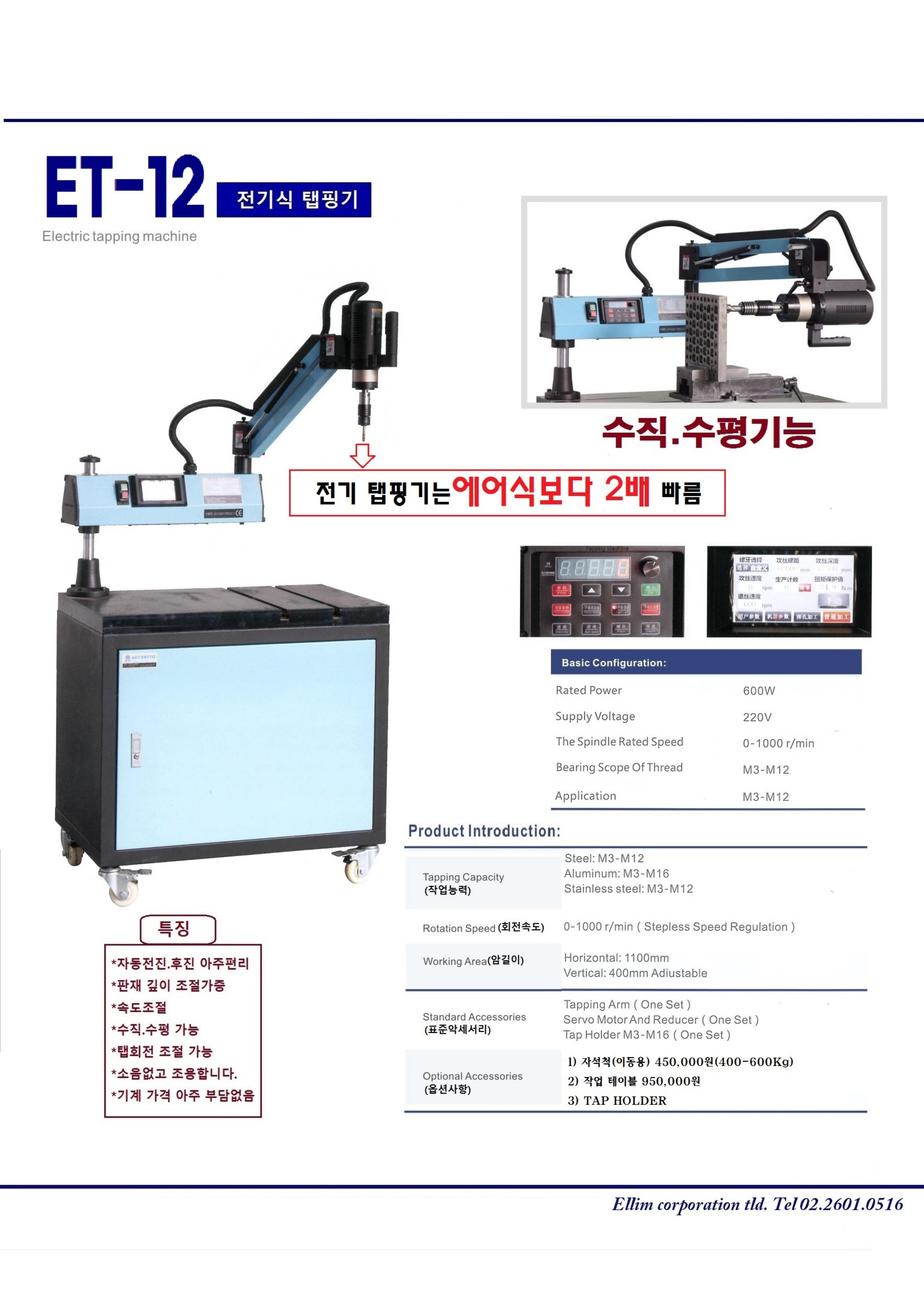

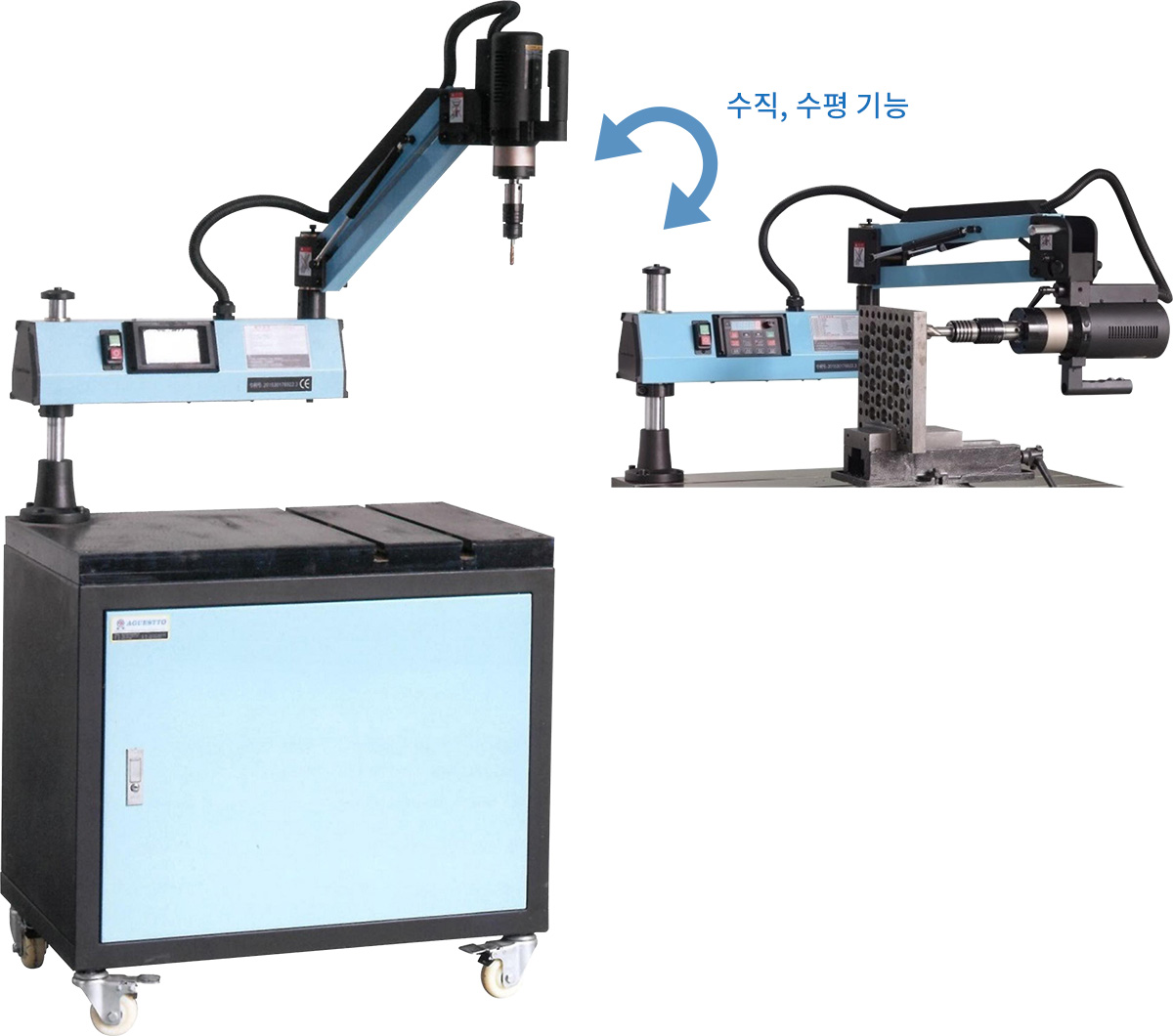

ET-12

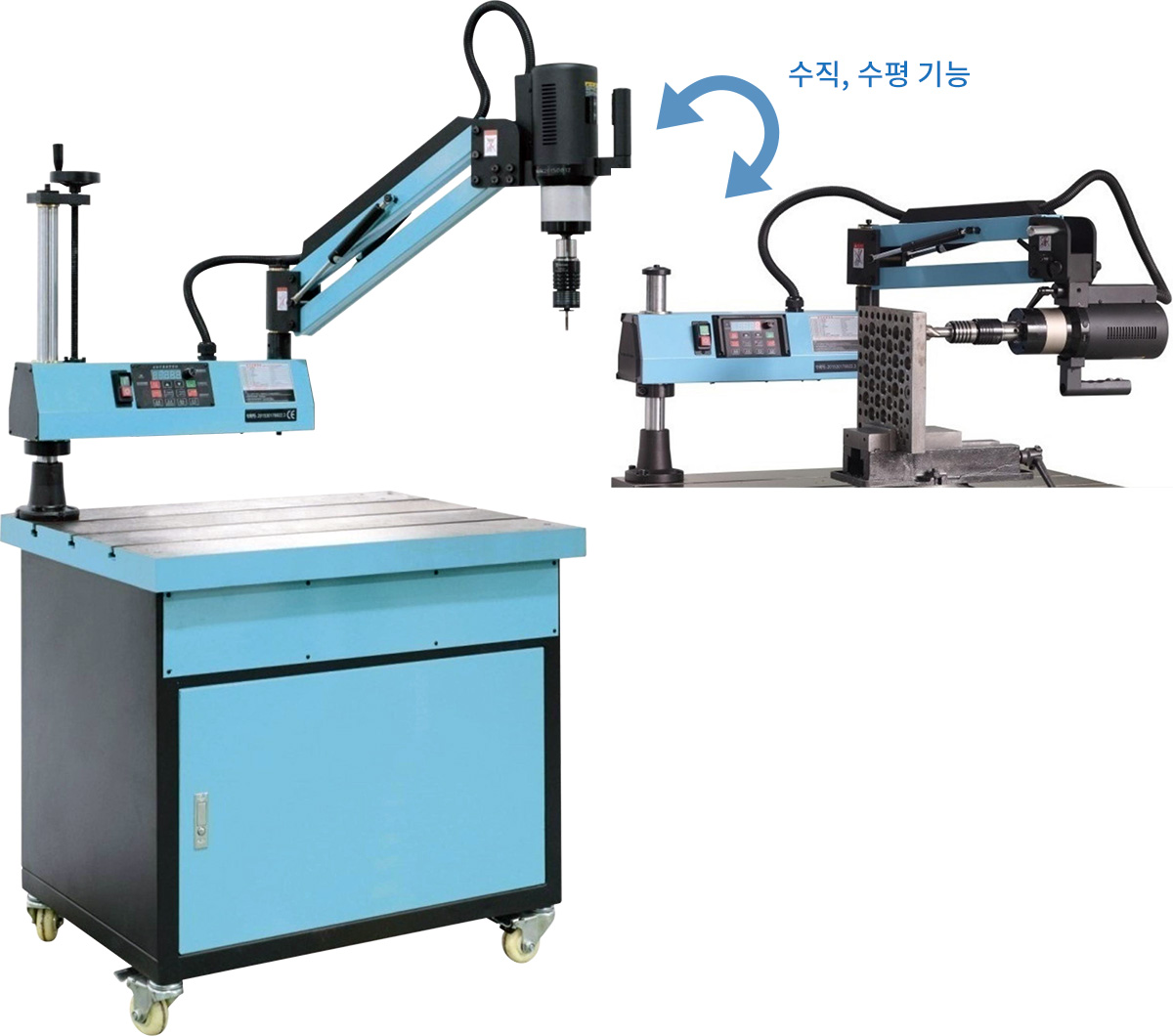

수직·수평 기능
Basic Configuration |
Rated Power |
600W |
Supply Voltage |
220V |
Spindle Rated Speed |
0~1,000r/min |
Bearing Scope of Thread |
M3~M12 |
Application |
M3~M12 |
Product Introduction |
작업능력 |
Steel |
M3~M12 |
Aluminum |
M3~M16 |
Stainless Steel |
M3~M12 |
회전속도 |
0~1,000 r/min (Stepless Speed Regulation) |
작업반경 |
Horizontal |
1,100㎜ |
Vertical |
400㎜ adjustable |
표준 부품 |
Tapping ARM (One set) |
Servo Motor & Reducer (One set) |
Tap Holder M3~M16 (One set) |
옵션 |
자석척 (이동용) / 작업 테이블 / Tap Holder |

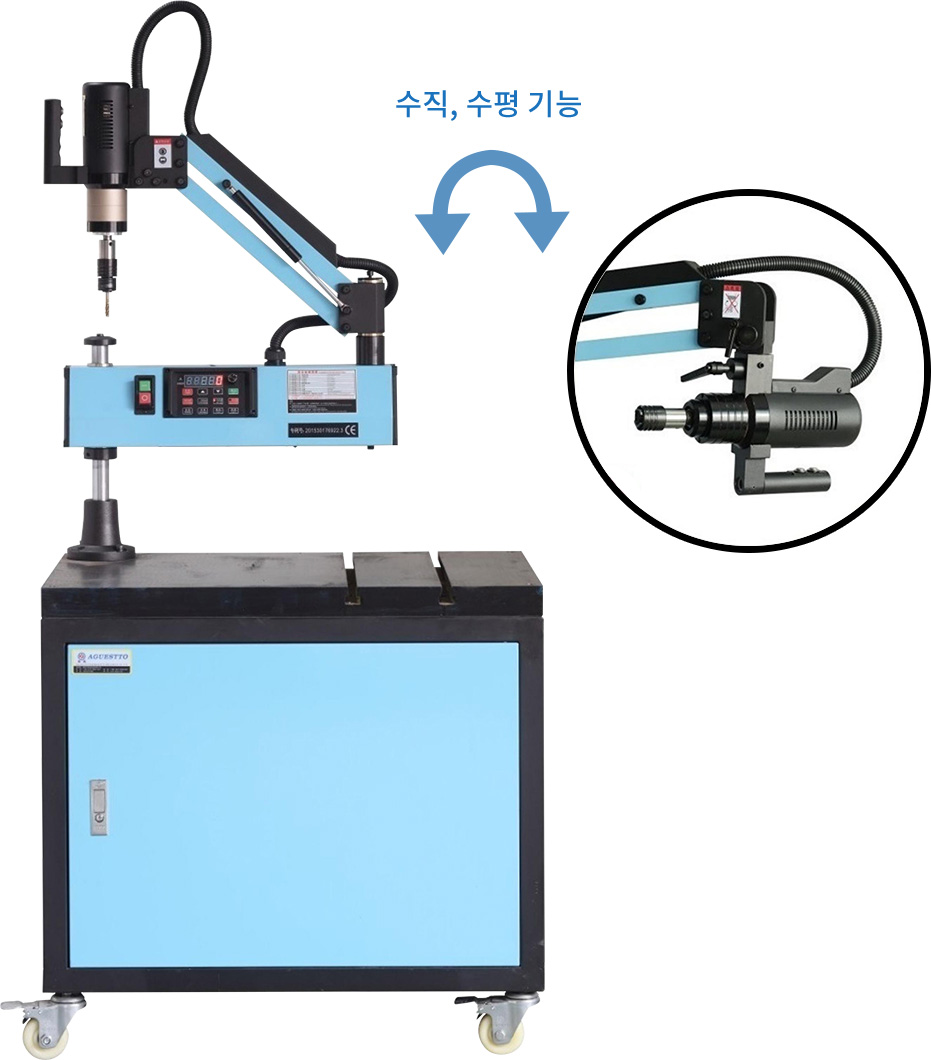

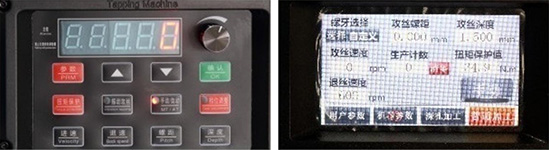

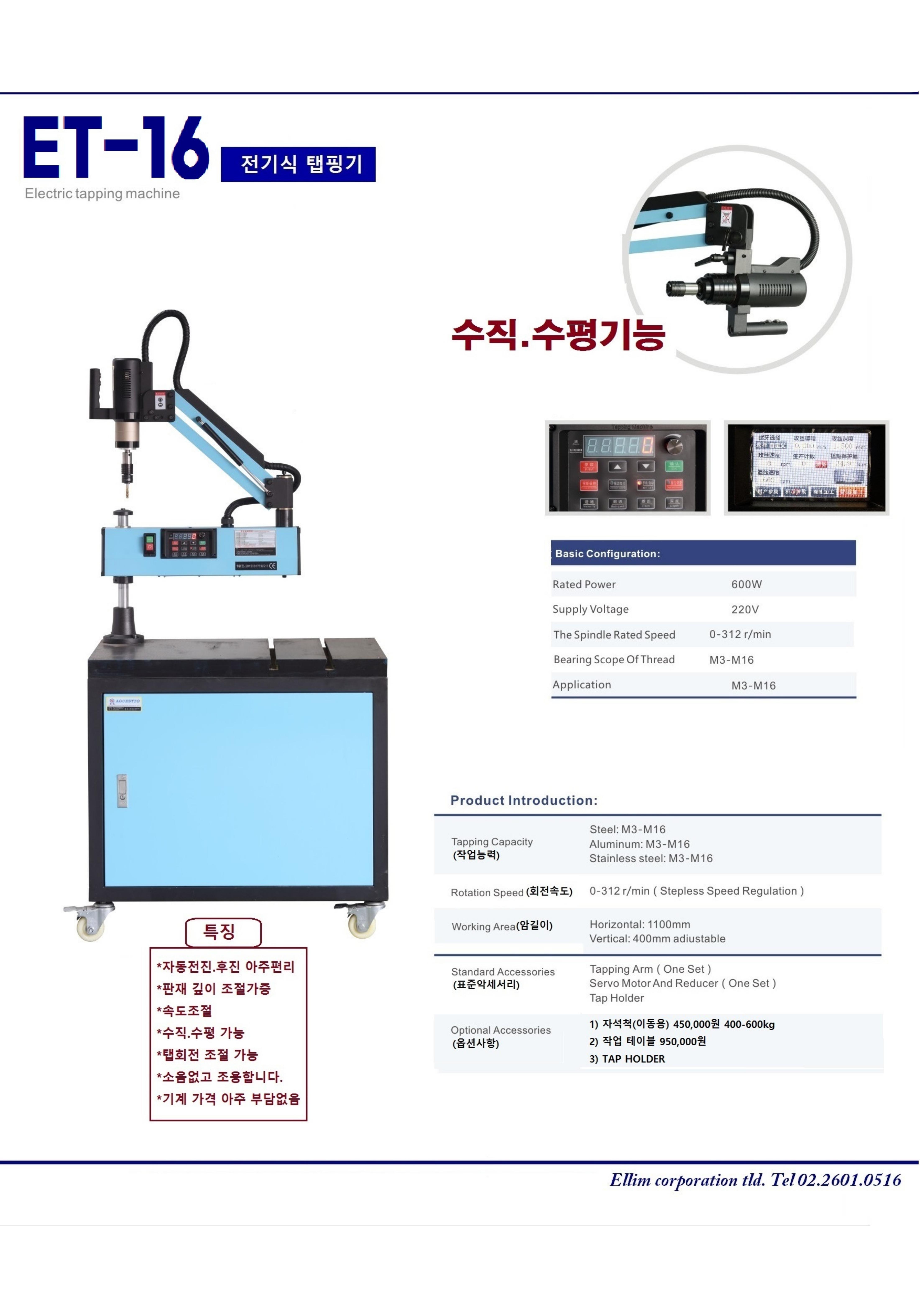

ET-16
수직·수평 기능
Basic Configuration |
Rated Power |
600W |
Supply Voltage |
220V |
Spindle Rated Speed |
0~312r/min |
Bearing Scope of Thread |
M3~M16 |
Application |
M3~M16 |
Product Introduction |
작업능력 |
Steel |
M3~M16 |
Aluminum |
M3~M16 |
Stainless Steel |
M3~M16 |
회전속도 |
0~312 r/min (Stepless Speed Regulation) |
작업반경 |
Horizontal |
1,100㎜ |
Vertical |
400㎜ adjustable |
표준 부품 |
Tapping ARM (One set) |
Servo Motor & Reducer (One set) |
Tap Holder |
옵션 |
자석척 (이동용) / 작업 테이블 / Tap Holder |

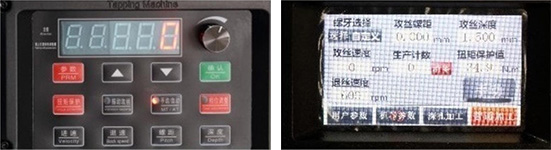

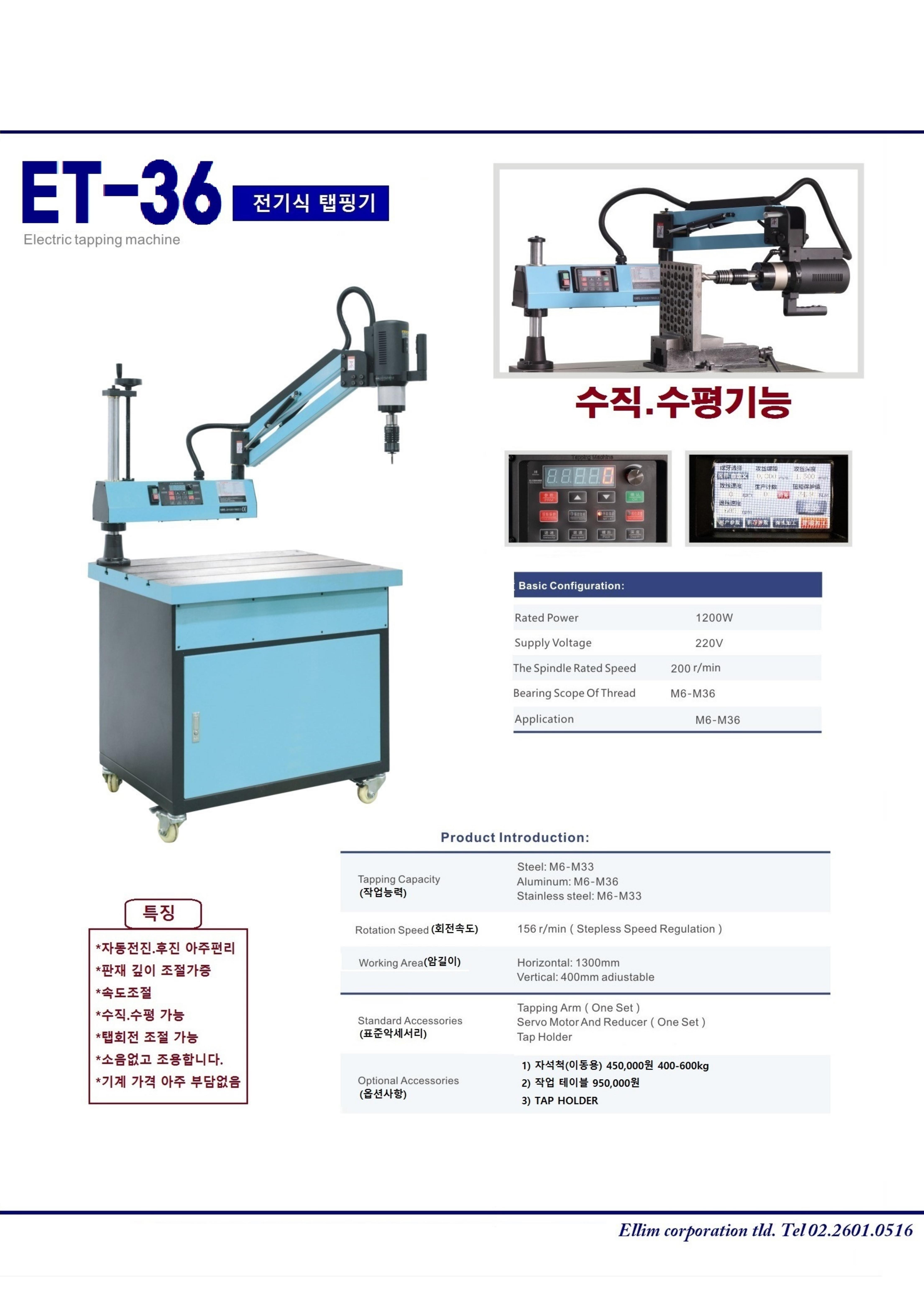

ET-36
수직·수평 기능
Basic Configuration |
Rated Power |
1,200W |
Supply Voltage |
220V |
Spindle Rated Speed |
200r/min |
Bearing Scope of Thread |
M6~M36 |
Application |
M6~M36 |
Product Introduction |
작업능력 |
Steel |
M6~M33 |
Aluminum |
M6~M36 |
Stainless Steel |
M6~M33 |
회전속도 |
156r/min (Stepless Speed Regulation) |
작업반경 |
Horizontal |
1,300㎜ |
Vertical |
400㎜ adjustable |
표준 부품 |
Tapping ARM (One set) |
Servo Motor & Reducer (One set) |
Tap Holder |
옵션 |
자석척 (이동용) / 작업 테이블 / Tap Holder |

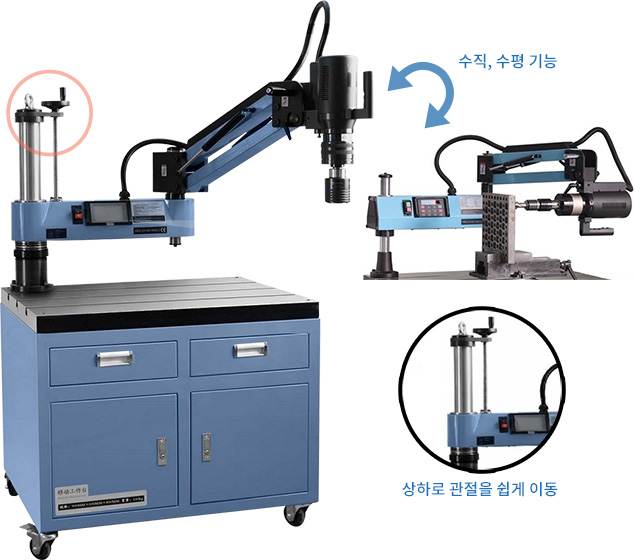

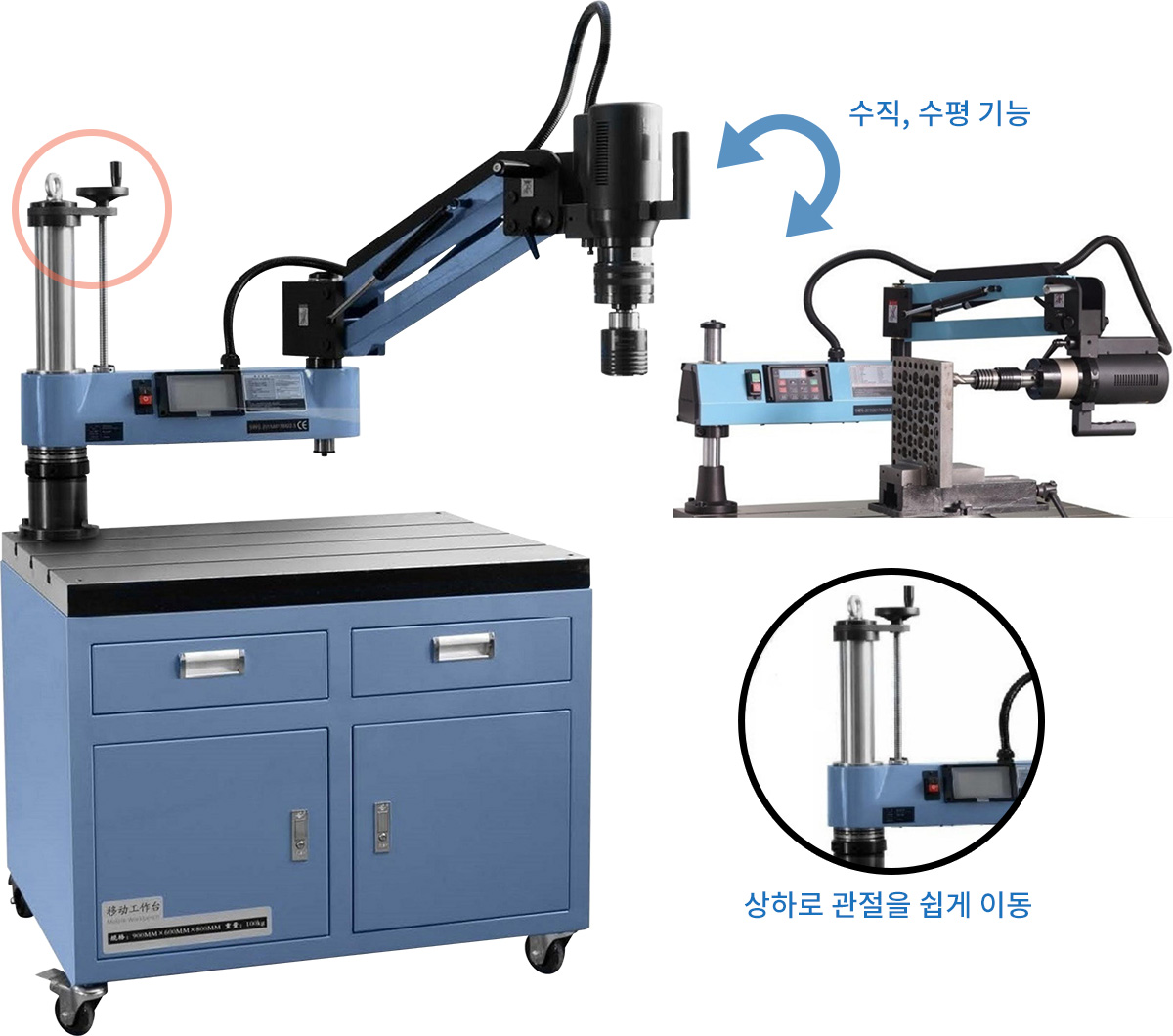

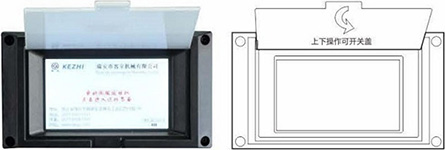

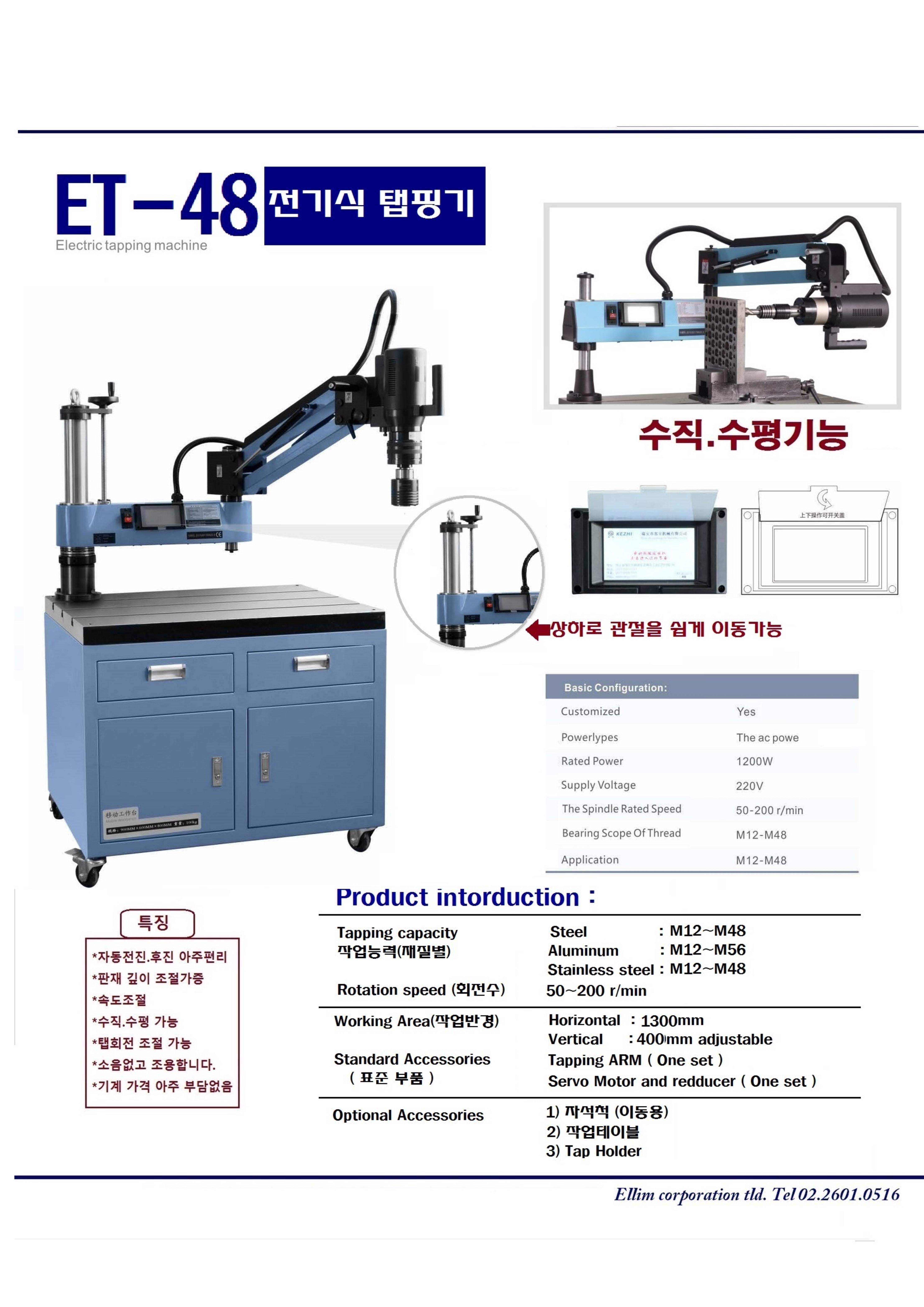

ET-48
수직·수평 기능
Basic Configuration |
Customized |
Yes |
Powerlypes |
AC Power |
Rated Power |
1,200W |
Supply Voltage |
220V |
Spindle Rated Speed |
50~200r/min |
Bearing Scope of Thread |
M12~M48 |
Application |
M12~M48 |
Product Introduction |
작업능력 |
Steel |
M12~M48 |
Aluminum |
M12~M56 |
Stainless Steel |
M12~M48 |
회전속도 |
50~200r/min |
작업반경 |
Horizontal |
1,300㎜ |
Vertical |
400㎜ adjustable |
표준 부품 |
Tapping ARM (One set) |
Servo Motor & Reducer (One set) |
옵션 |
자석척 (이동용) / 작업 테이블 / Tap Holder |

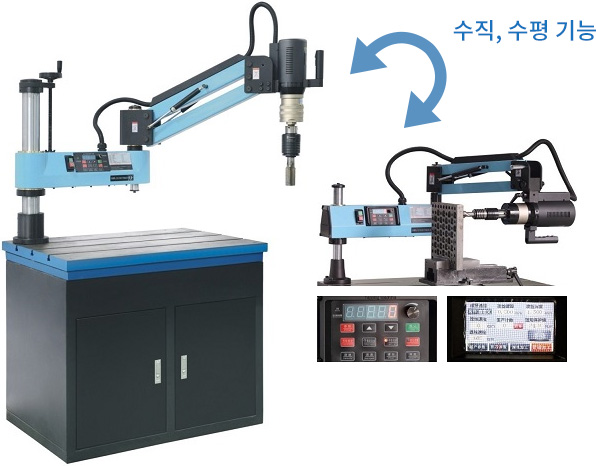

ET-52
수직·수평 기능
Basic Configuration |
Rated Power |
1,200W |
Supply Voltage |
220V |
Spindle Rated Speed |
50~200r/min |
Bearing Scope of Thread |
M12~M52 |
Application |
M12~M52 |
Product Introduction |
작업능력 |
Steel |
M12~M52 |
Aluminum |
M12~M56 |
Stainless Steel |
M12~M48 |
회전속도 |
50~200r/min |
작업반경 |
Horizontal |
1,300㎜ |
Vertical |
400㎜ adjustable |
표준 부품 |
Tapping ARM (One set) |
Servo Motor & Reducer (One set) |
Tap Holder |
옵션 |
자석척 (이동용) / 작업 테이블 / Tap Holder |
