가스켓 포밍 머신
Gasket Forming M/C 가스켓 포밍 머신

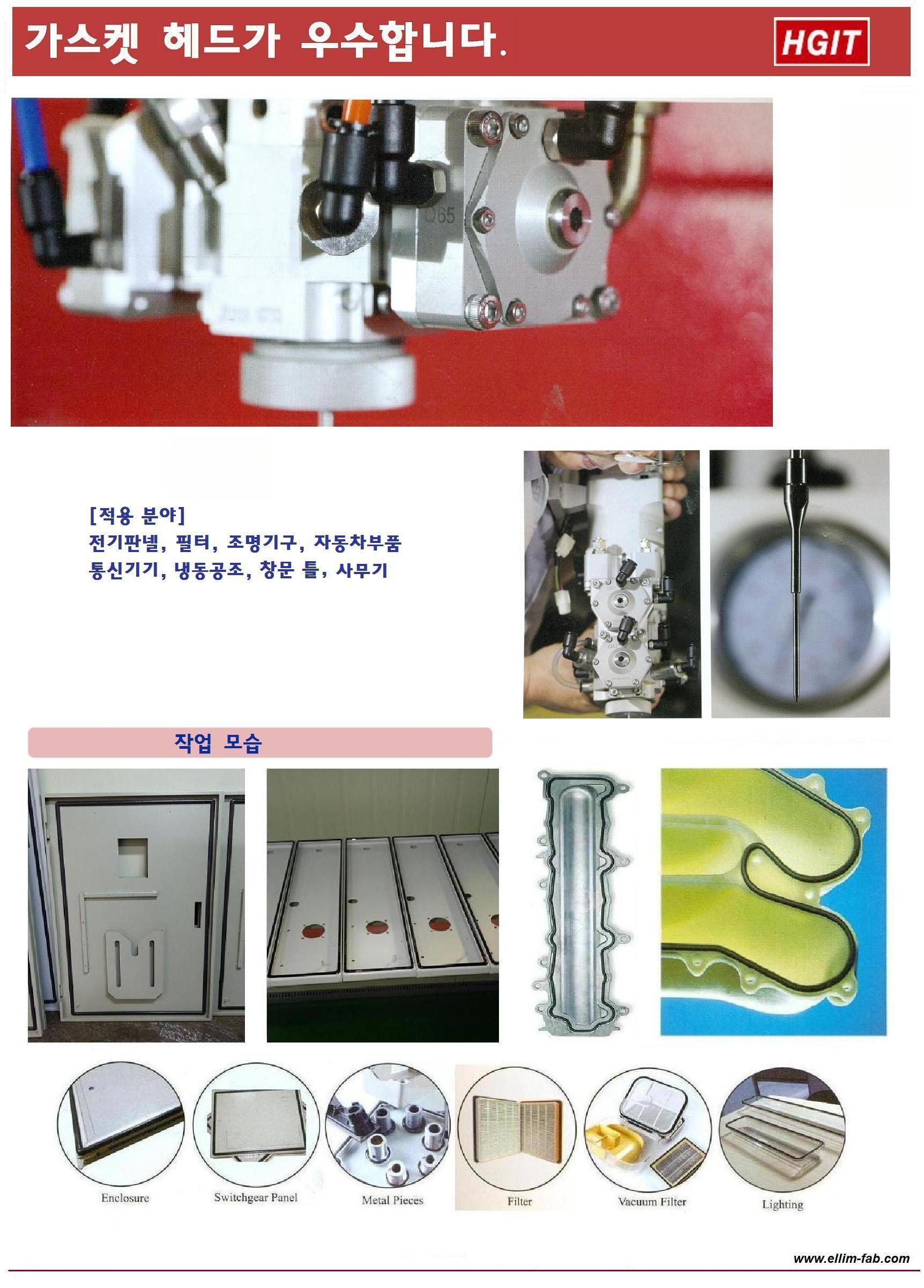

- 우수한 가스켓 헤드
- 간편한 조작
- 신속한 A/S
- 유럽/미국/아시아 수입·수출 제품
HGIT 한국 총대리점

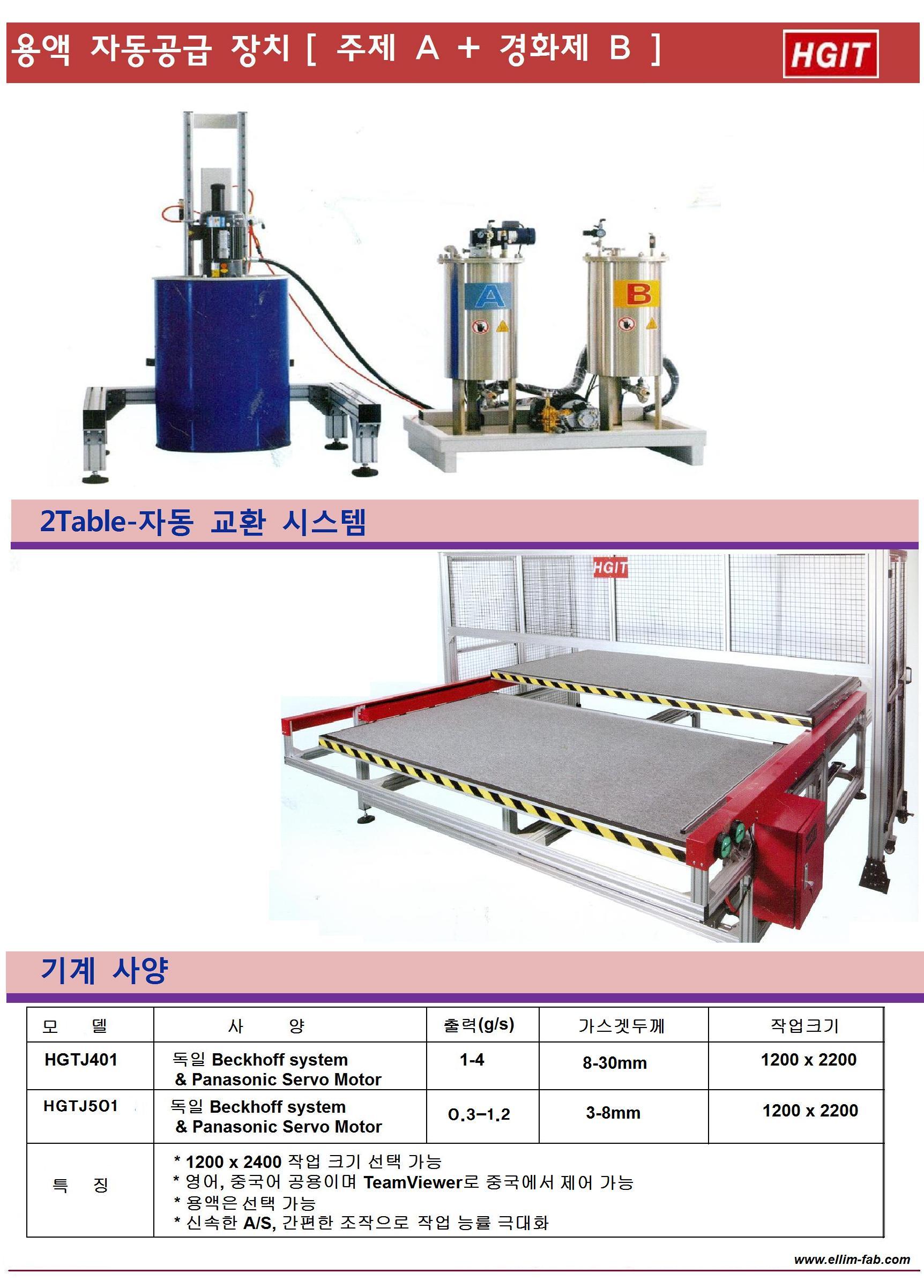

- 특징
-
- 1200×2400 작업 크기 선택 가능
- 영어, 중국어 공용이며 TeamViewer로 중국에서 제어 가능
- 용액은 선택 가능
- 신속한 A/S, 간편한 조작으로 작업 능률 극대화
- 적용분야
- 전기판넬, 필터, 조명기구, 자동차부품, 통신기기, 냉동공조, 창문 틀, 사무기기 등
모델별 사양
HG-TJ302
Introduction Of Cantilever Structure Conventional
Germany Beckhoff dispensing operating system, hardware failure rate is lower;
Operation interface is indicated in both Chinese and English; if there is any need, other languages can be added. The system boasts functions such as false operation reminding, idiot-proof protection, overpressure alarming, temperature alarming and low material level reminding.
When operating the human-machine interface, the operator only needs to enter commands in the interface such as "Confirm" and "Start" for loading and unloading of workpieces, and then the equipment can automatically complete the required function operations.
The control system is CNC2013 control system independently researched and developed by the Company. It can control multiple axes simultaneously and control dispensing speed and glue flow, with multi-formula storage function, pressure alarming function, etc. which makes it safer and user-friendly.
The dispensing valve and mixer match with each other well, easy to operate and convenient for maintenance.
Two components metering pump can choose Domestic pump or Germany pump according to customer demand.
| Item | Spec. |
|---|---|
| Cantilever Structure | Conventional Equipment |
| Equipment Model | HG-TJ302 |
| X, Y, Z Effective Stroke | 2,200㎜ × 1,200㎜ × 190㎜ |
| Amount of Output | 1 ~ 4.0g/s |
| Glue Strip Width | 8 ~ 30㎜ |
| Cleaning Method | High-pressure Water Cleaning / Environmental PU cleaner |
| Application | Cabinets |

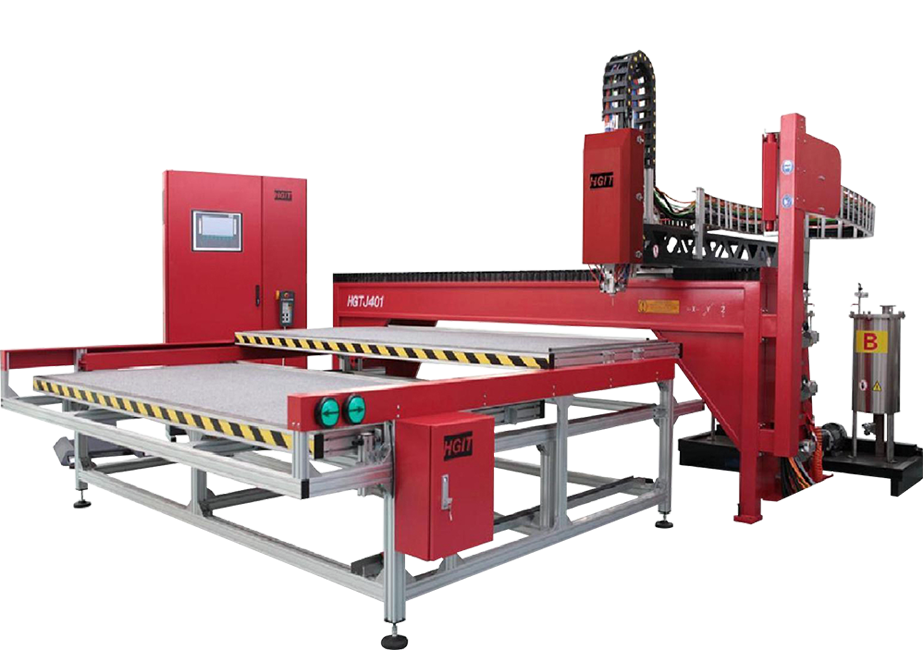

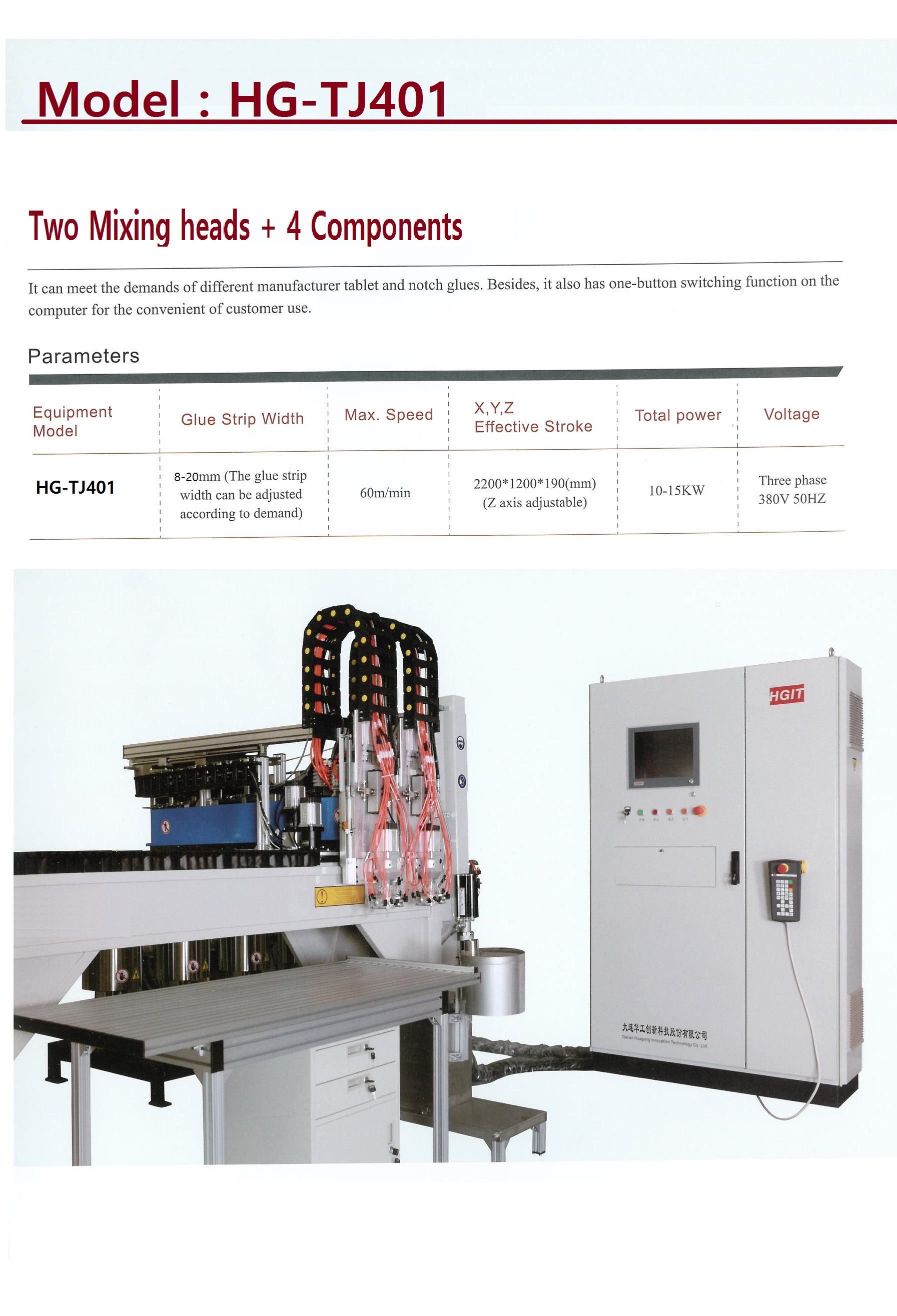

HG-TJ401

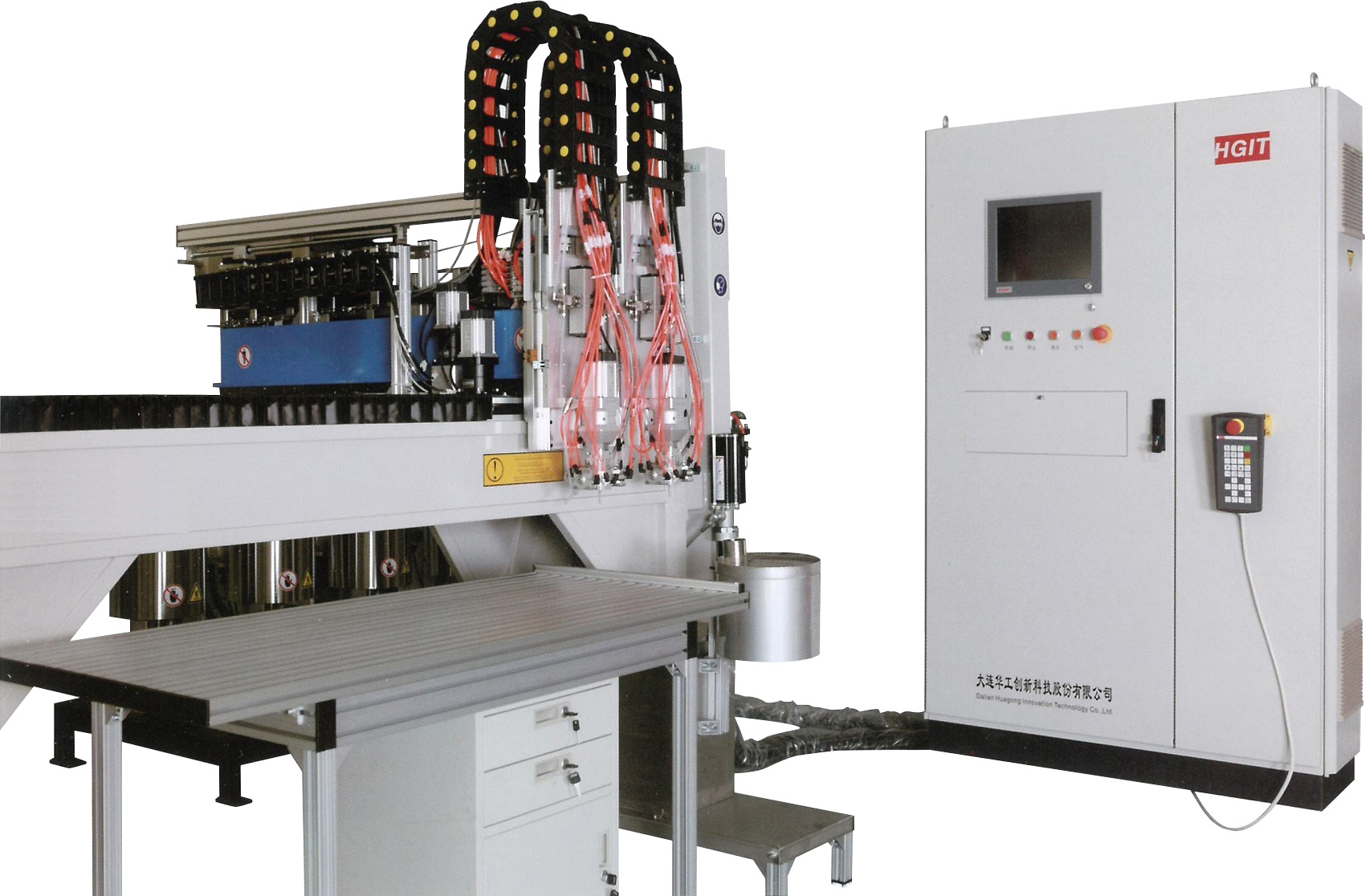

Two Mixing Heads + 4 Components
It can meet the demands of different manufacturer tablet and notch glues. Besides, it also has one-button switching function on the computer for the convenient of customer use.
| Item | Spec. |
|---|---|
| Equipment Model | HG-TJ401 |
| Glue Strip Width | 8~20㎜ (The glue strip width can be adjusted according to demand) |
| Max. Speed | 60m/min |
| X, Y, Z Effective Stroke | 2,200㎜ × 1,200㎜ × 190㎜ (Z axis adjustable) |
| Total power | 10 ~ 15㎾ |
| Voltage | Three phase 380V 50HZ |
HG-TJ501
| Item | Spec. |
|---|---|
| Spec. | 독일 Beckhoff system & Panasonic Servo Motor |
| Equipment Model | HG-TJ501 |
| X, Y Effective Stroke | 1,200㎜ × 2,200㎜ |
| Amount of Output | 0.3 ~ 1.2g/s |
| Glue Strip Width | 3 ~ 8㎜ |

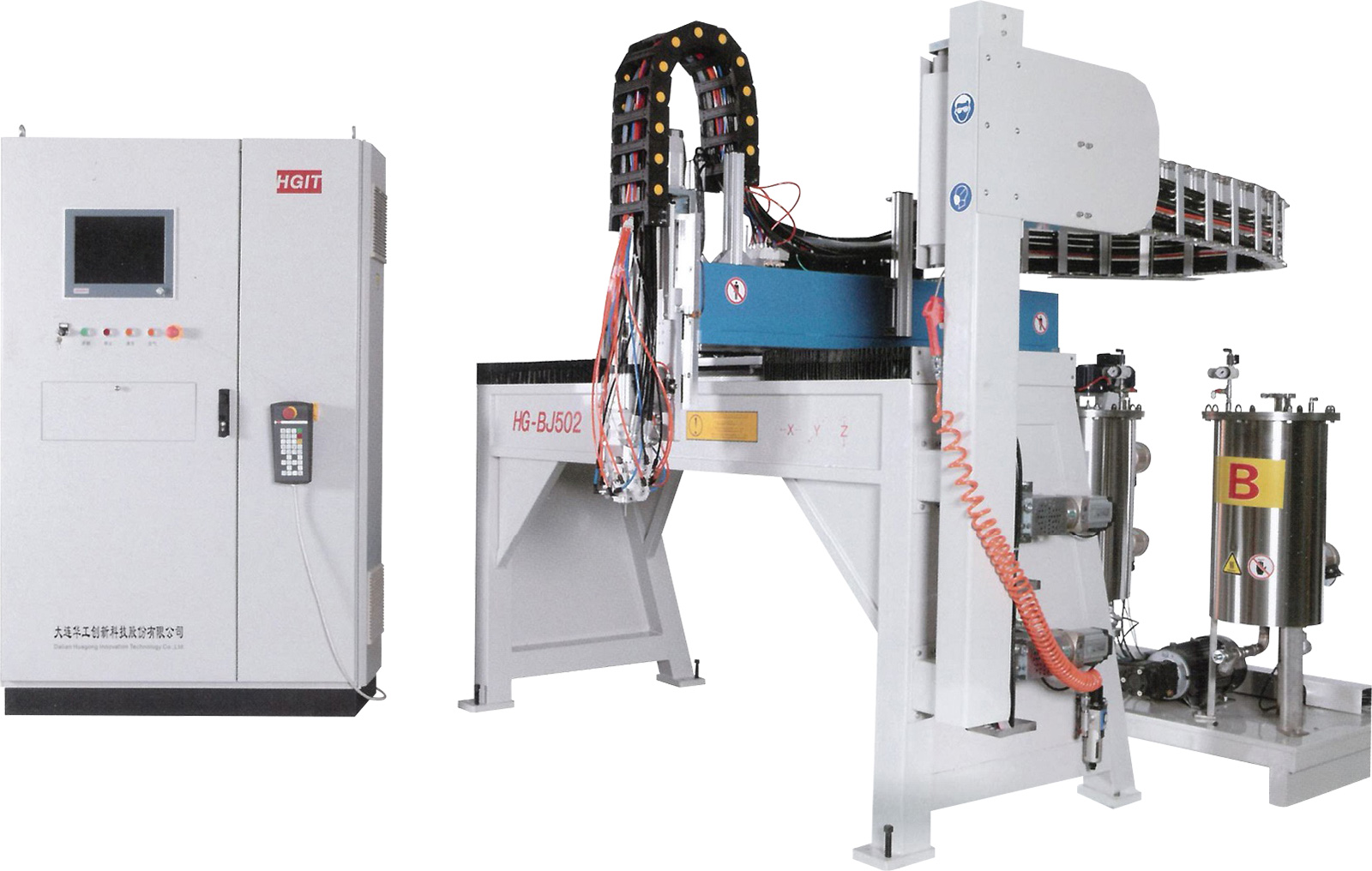

HG-TJ502

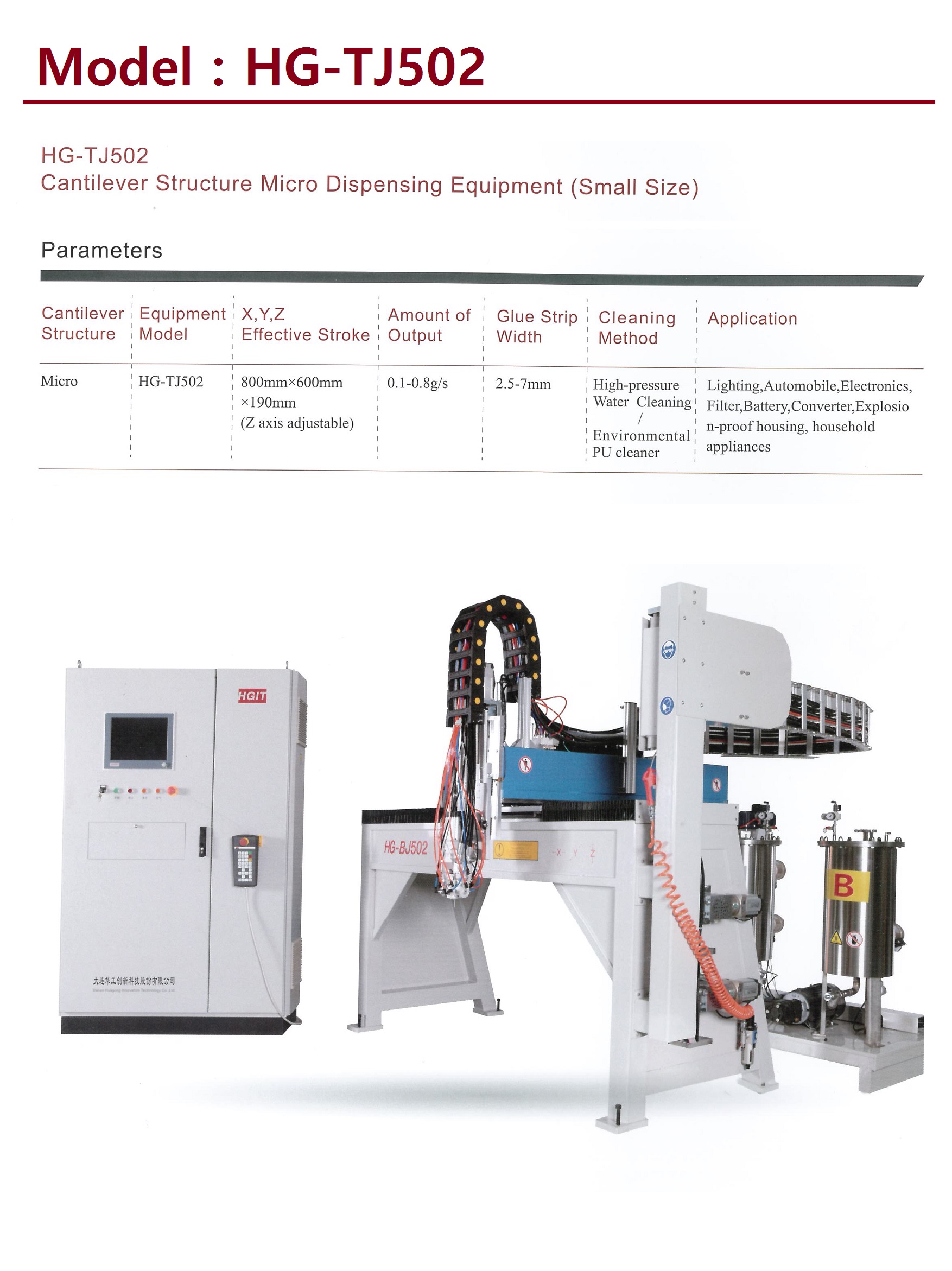

Cantilever Structure Micro Dispensing Equipment (Small Size)
| Item | Spec. |
|---|---|
| Cantilever Structure | Micro |
| Equipment Model | HG-TJ502 |
| X, Y, Z Effective Stroke | 800㎜ × 600㎜ × 190㎜ (Z axis adjustable) |
| Amount of Output | 0.1~0.8g/s |
| Glue Strip Width | 2.5 ~ 7㎜ |
| Cleaning Method | High-pressure Water Cleaning / Environmental PU cleaner |
| Application | Lighting, Autombile, Electronics, Filter, Battery, Converter, Explosio n-proof housing, household appliances |
세부 사양

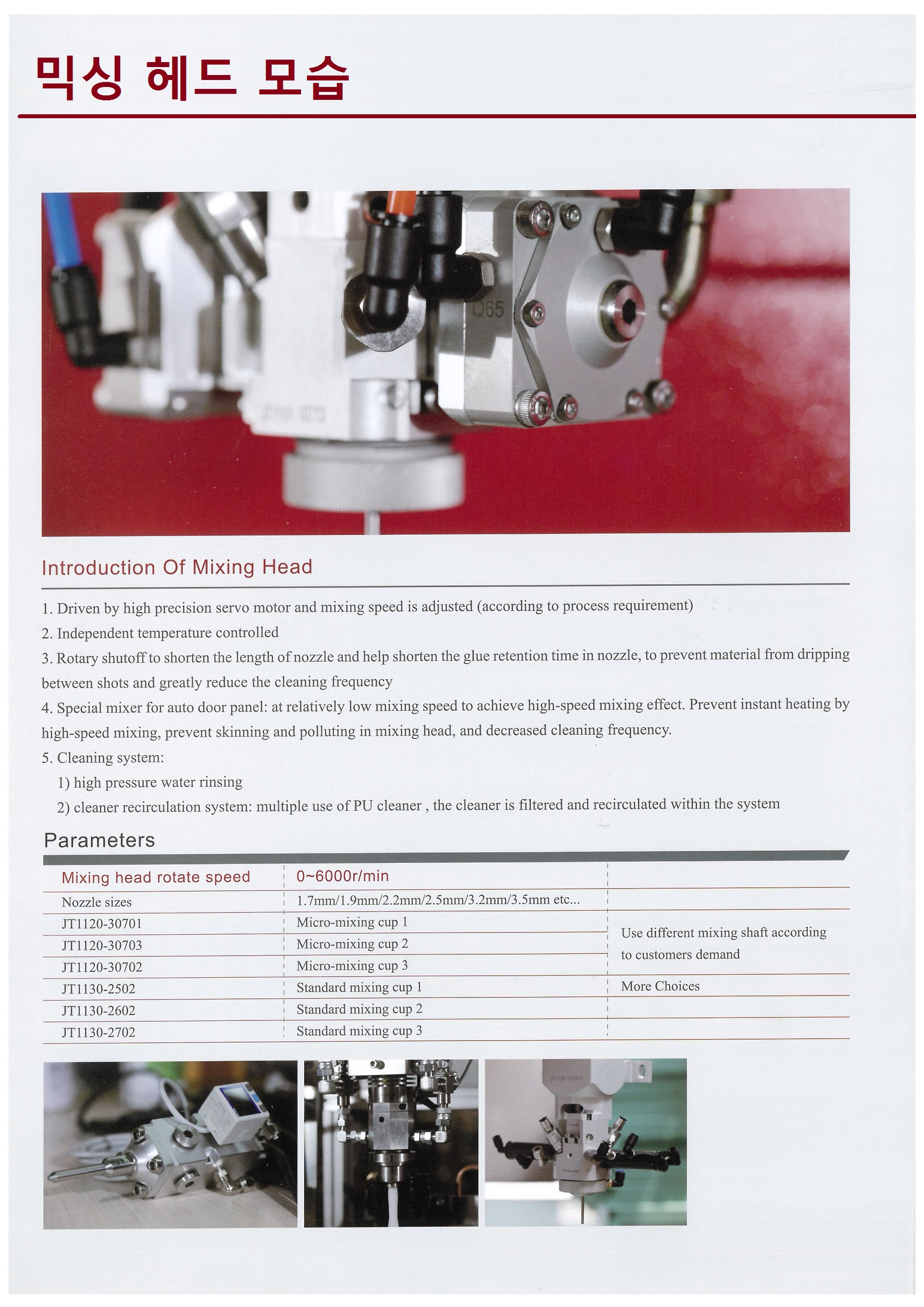

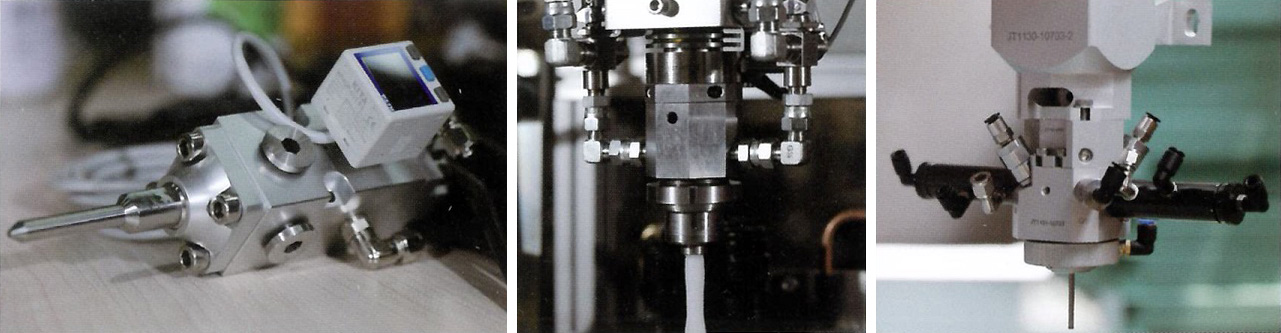

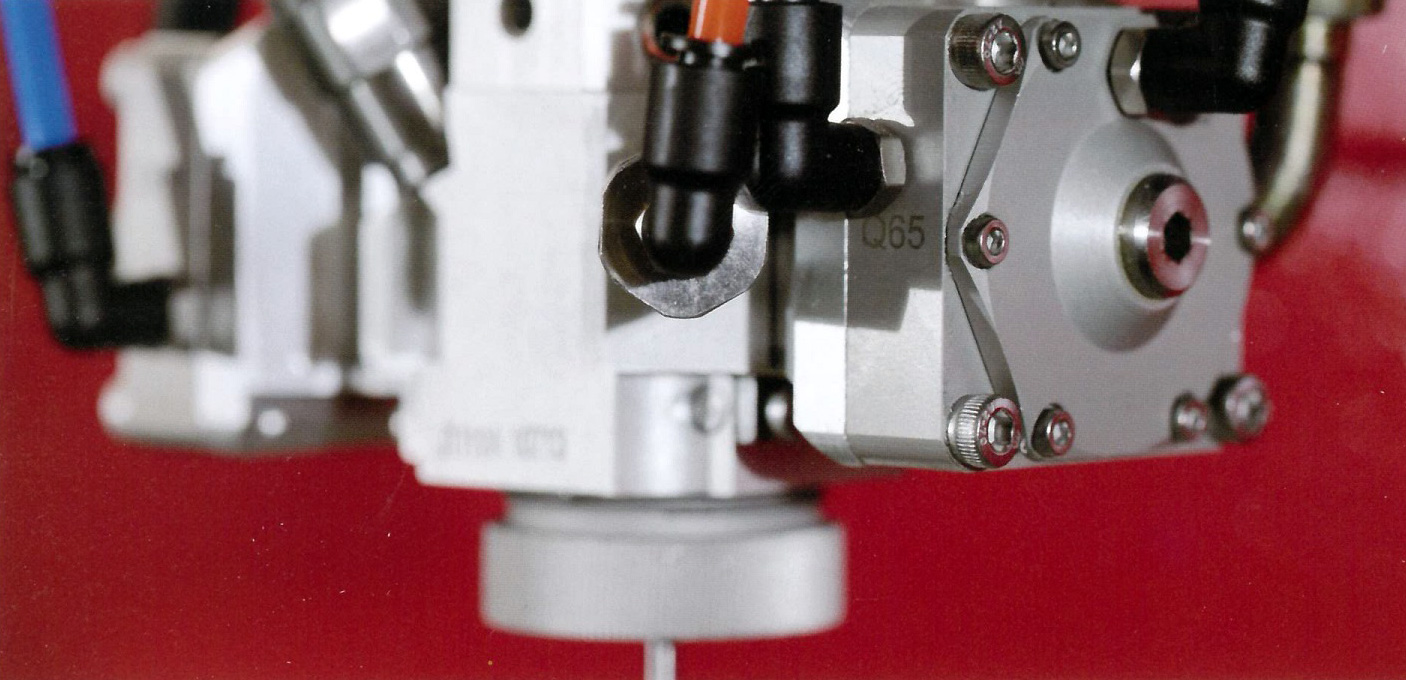

Mixing Head
- Driven by high precision servo motor and mixing speed is adjusted (according to process requirement)
- Independent temperature controlled
- Rotary shutoff to shorten the length of nozzle and help shorten the glue retention time in nozzle, to prevent material from dripping between shots and greatly reduce the cleaning frequency
- Special mixer for auto door panel: at relatively low mixing speed to achieve high-speed mixing effect. Prevent instant heating by high-speed mixing, prevent skinning and polluting in mixing head, and decreased cleaning frequency.
- Cleaning system:
- high pressure water rinsing
- cleaner recirculation system: multiple use of PU cleaner the cleaner is filtered and recirculated within the system
| Mixing head rotate speed | 0~6000r/min | |
|---|---|---|
| Nozzle sizes | 1.7㎜ / 1.9㎜ / 2.2㎜ / 2.5㎜ / 3.2㎜ / 3.5㎜ etc. | |
| JT1120-30701 | Micro-mixing cup I | Use different mixing shaft according to customers demand |
| JT1120-30703 | Micro-mixing cup 2 | |
| JT1120-30702 | Micro-mixing cup 3 | |
| JT1130-2502 | Standard mixing cup 1 | More Choices |
| JT1130-2602 | Standard mixing cup 2 | |
| JT1130-2702 | Standard mixing cup 3 | |

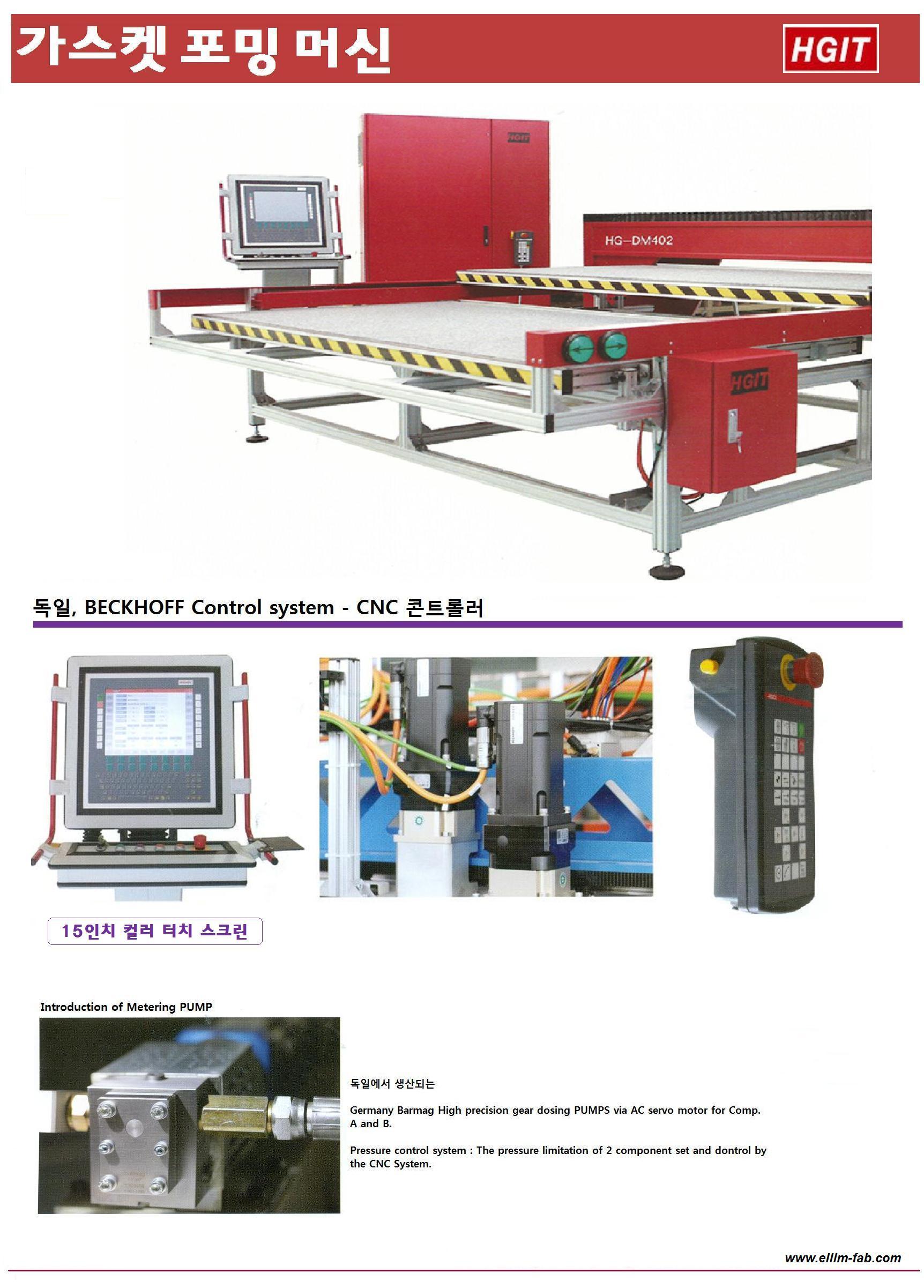

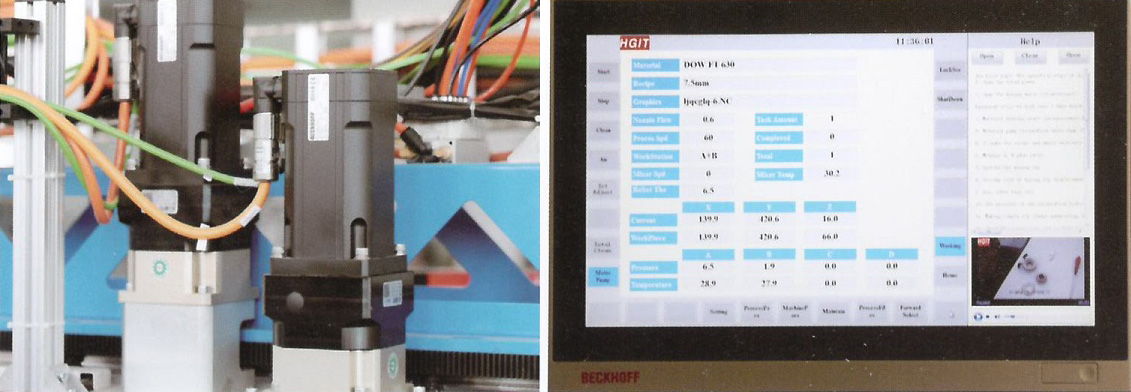

Beckhoff Control System

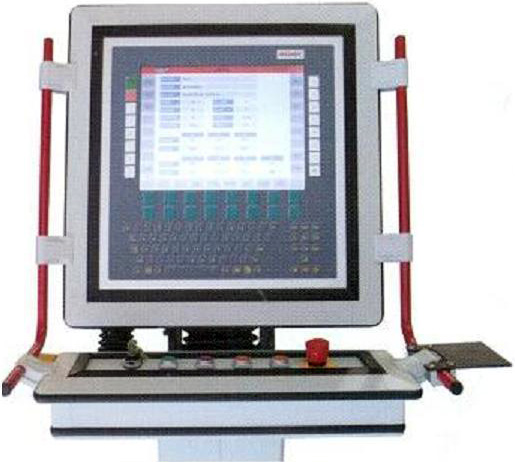

- Germany Beckhoff - 15" color touch screen with soft key and HMI for rogramming, diagnostics, and process monitoring.
- High precision, fast response, good stability, strong anti-interference capability, low fault rate and good maintainability.
- English and Chinese interface.
- Via electrical interface or EnterCAT connection communication with other controllers or network is possible.
- Support a variety ways of graphics editor: graphics library, AutoCAD import, teaching programming on site, and G code programming.
- Pre-processing a variety of processing data packets in the operating system
- Remote Diagnosis:For remote diagnosis directly from HGIT service center (The technician can connect to the internet)
- Three separate images respectively undertake operation interface, help text interface and video interface; The help text interface can guide the operator finish all operation steps of glue machine independently; Through the pre-existing repair and maintenance video of help video interface, you can carry out machine repair and maintenance while watching the video

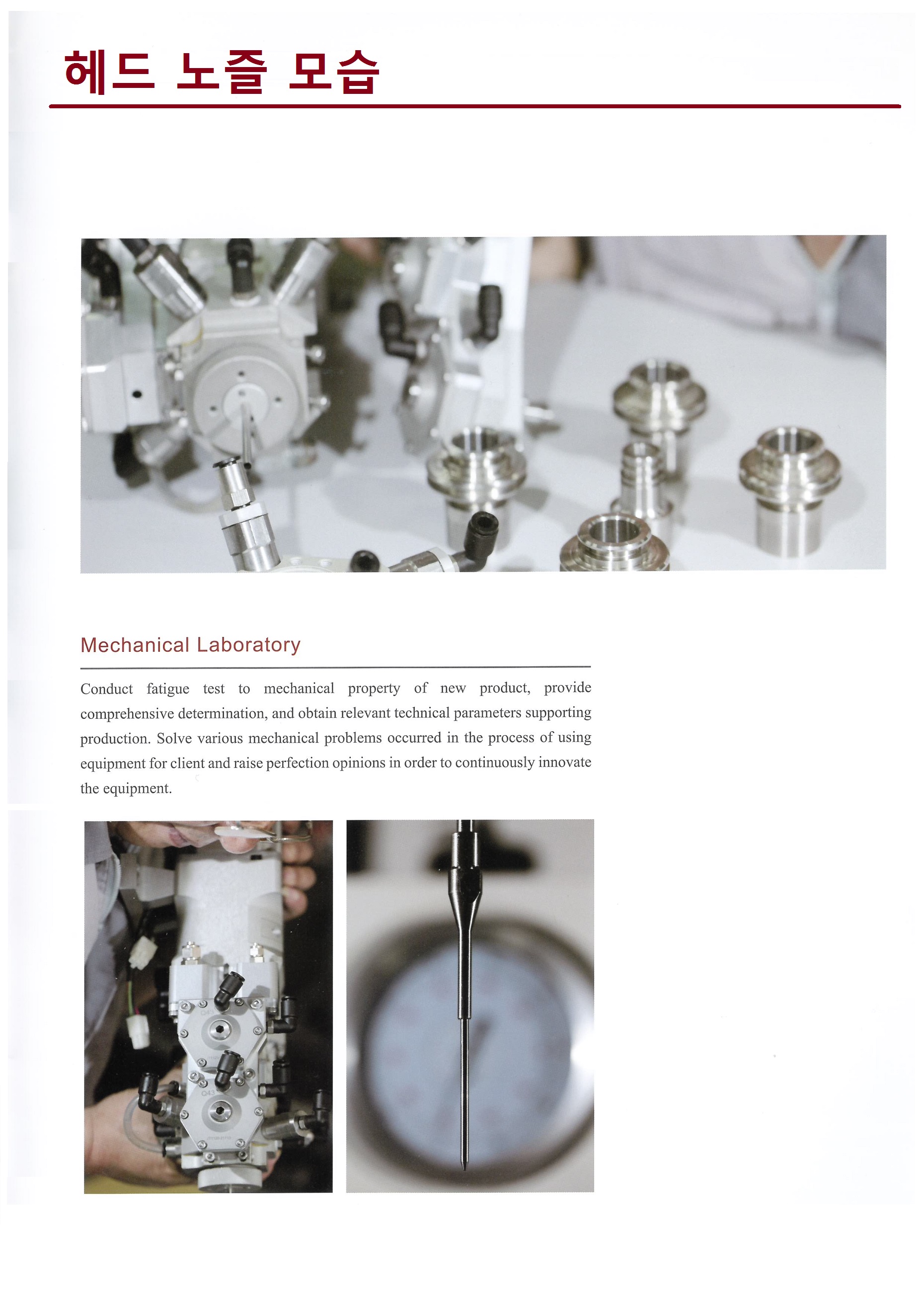

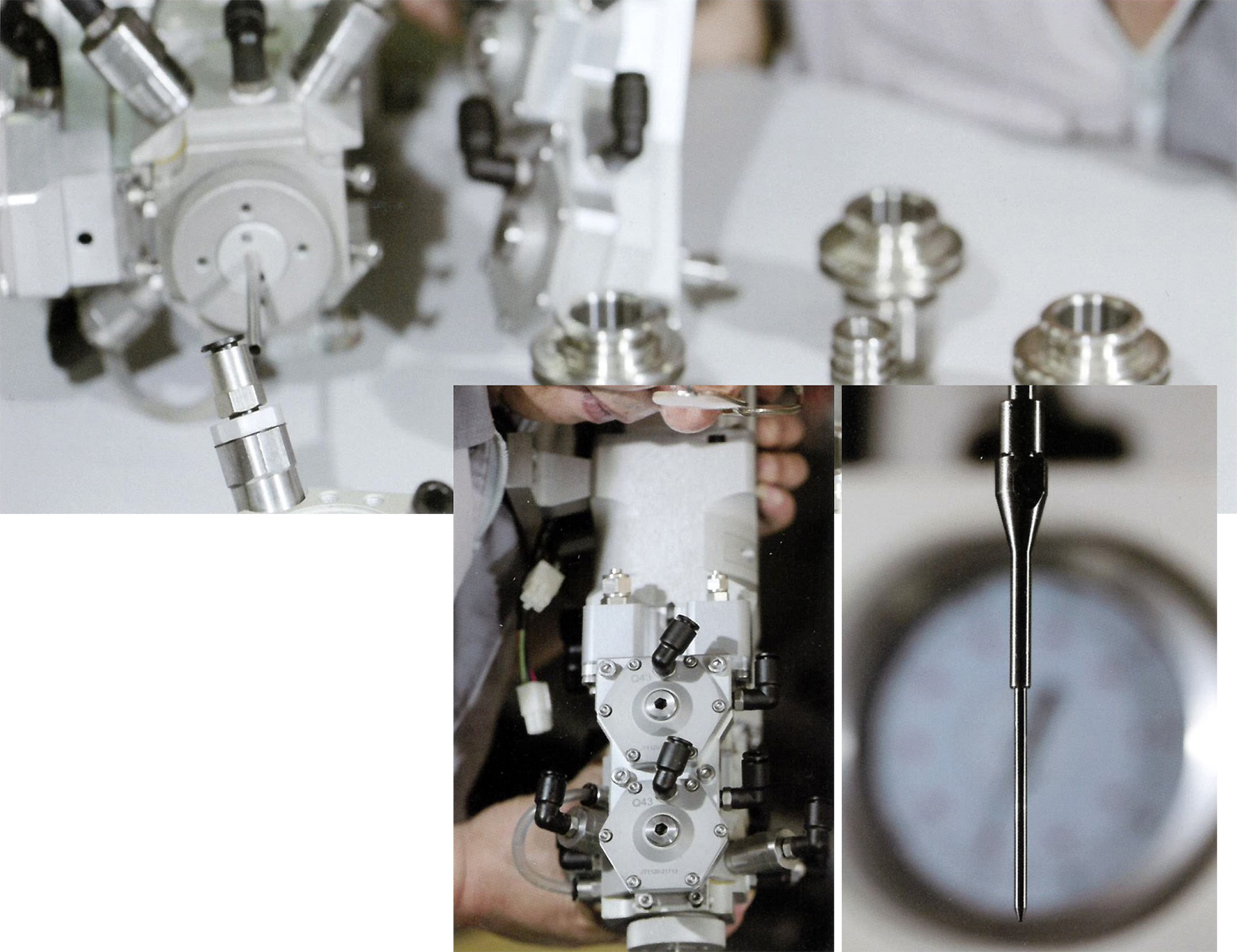

Head Nozzle
- Conduct fatigue test to mechanical property of new product, provide comprehensive determination, and obtain relevant technical parameters supporting production.
- Solve various mechanical problems occurred in the process of using equipment for client and raise perfection opinions in order to continuously innovate the equipment.

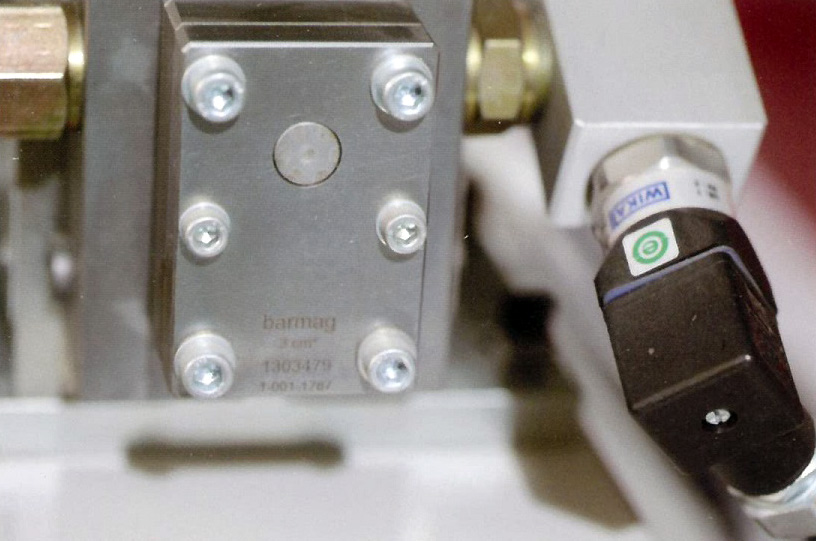

Metering Pump
- Germany Barmag high precision gear dosing pumps via AC servo motor for Comp. A and B 2
- Pressure control system: The pressure limitation of 2 component set and control by the CNC system.
- Option : Magnetic drive pump, zero leakage and free maintenance can be achieved
적용사례

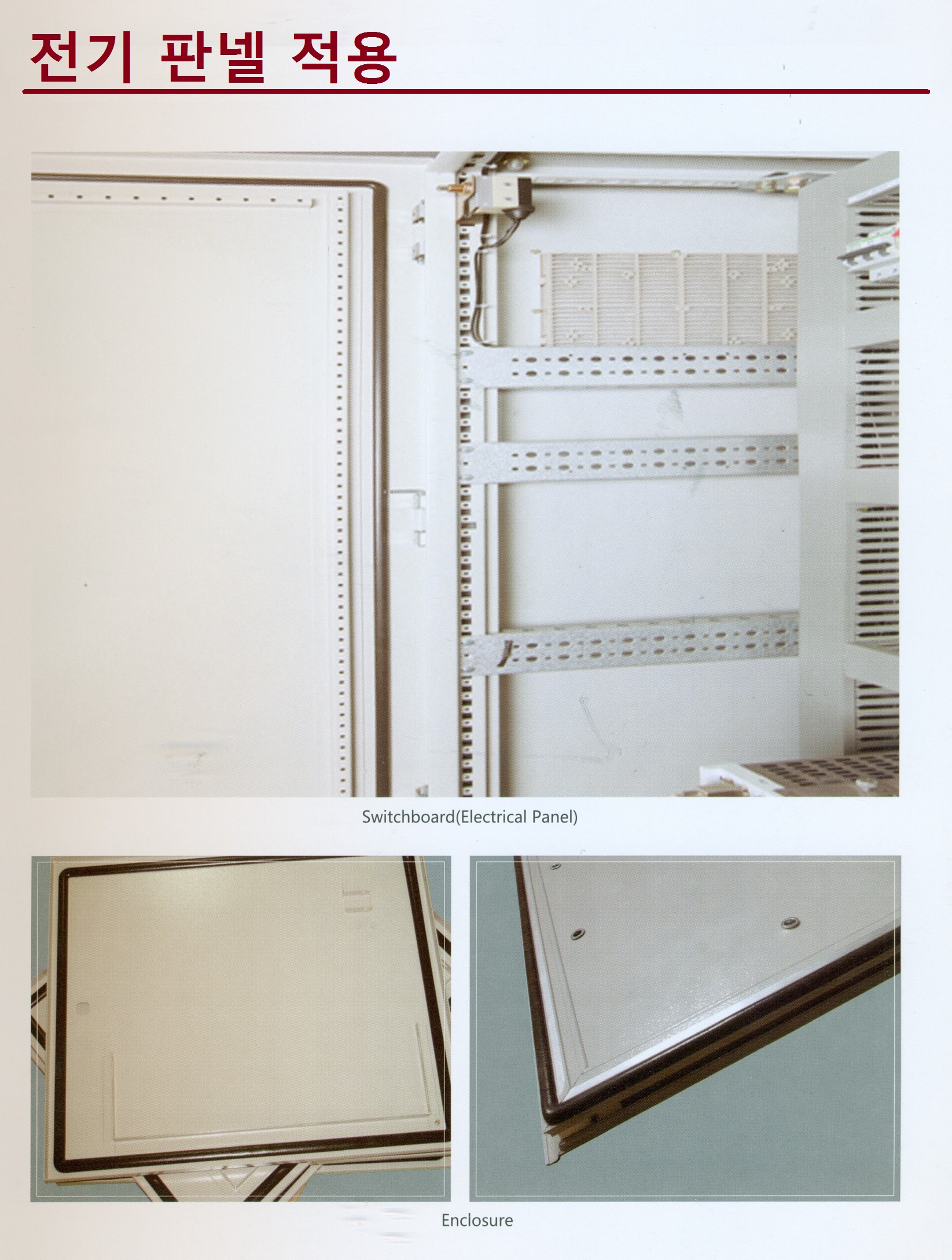

- 전기 판넬
-

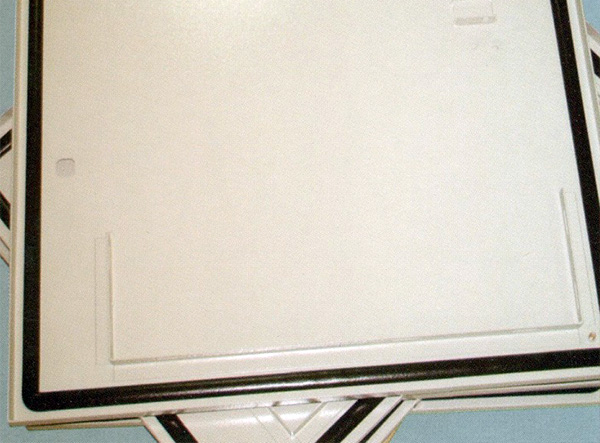

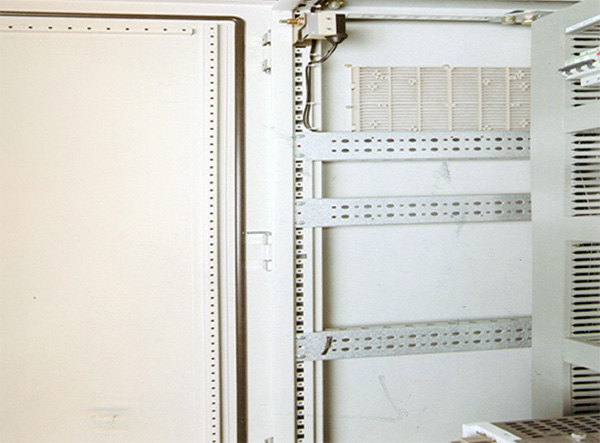

Switchboard (Electrical Panel)

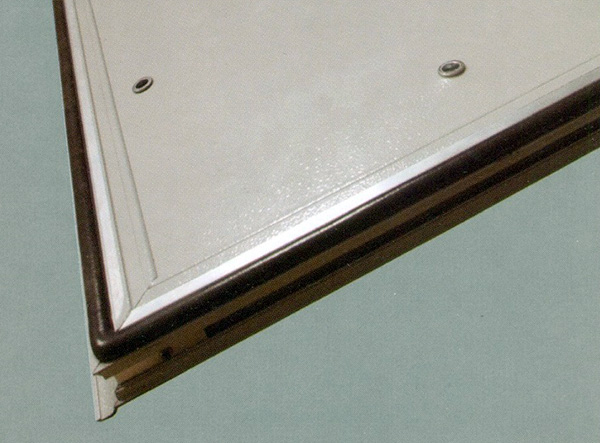

Enclosure
Enclosure
- 방수 뚜껑
-

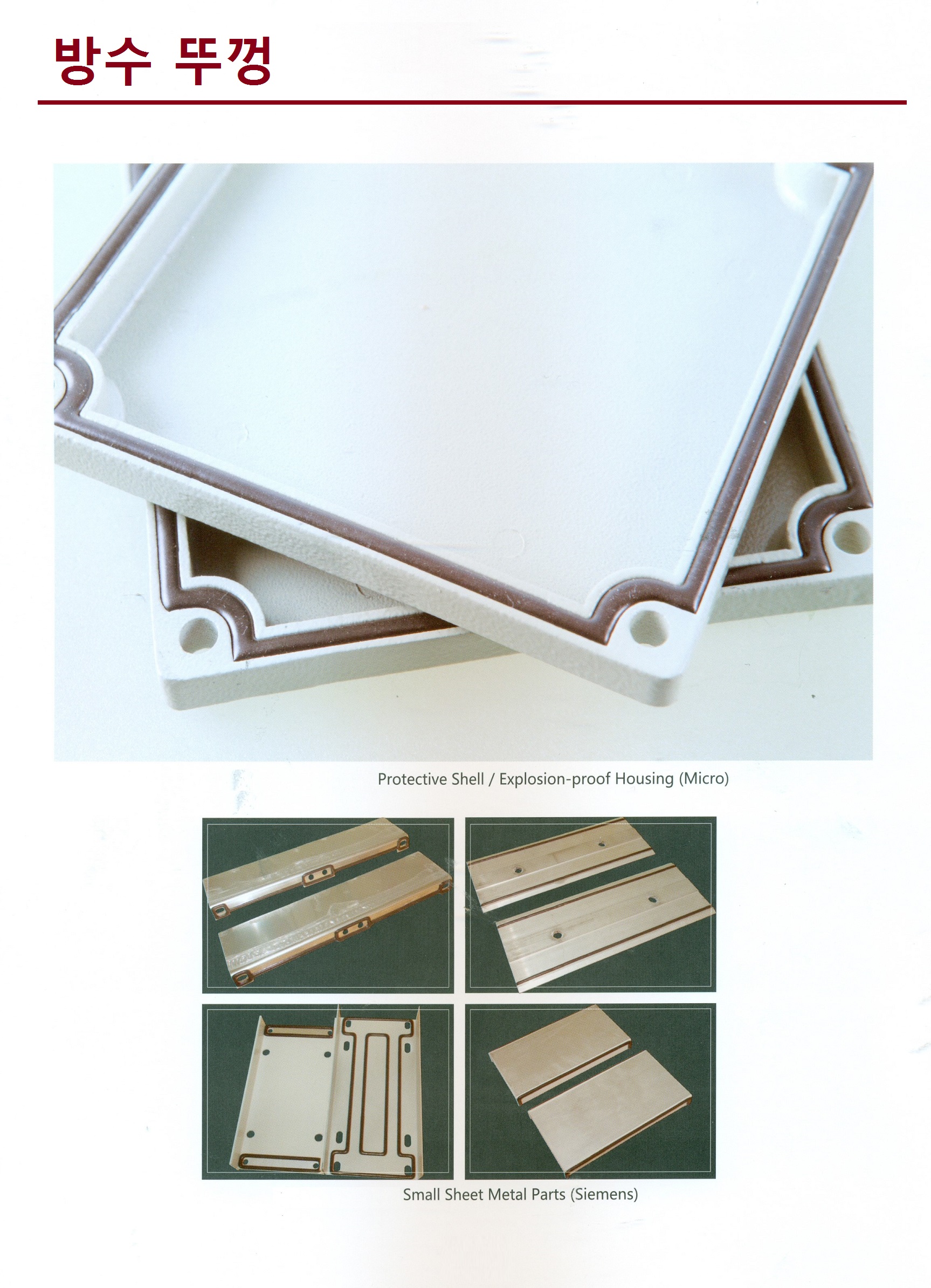

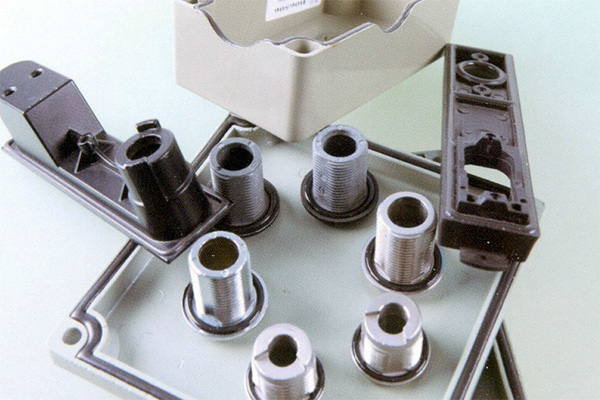

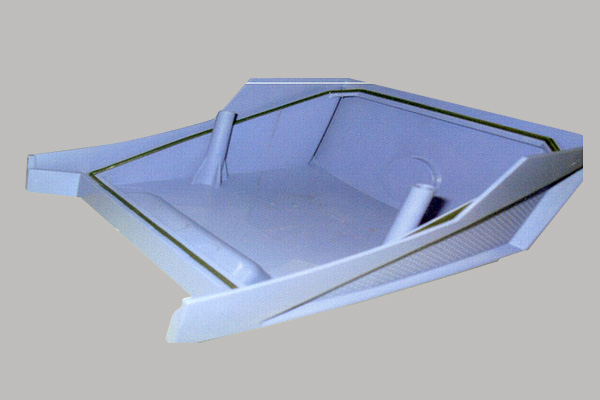

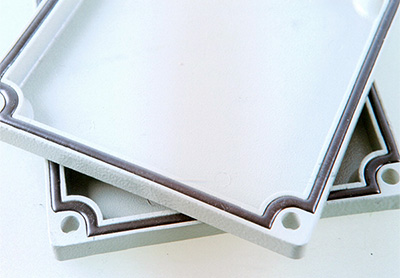

Protective Shell / Explosion-proof Housing (Micro)

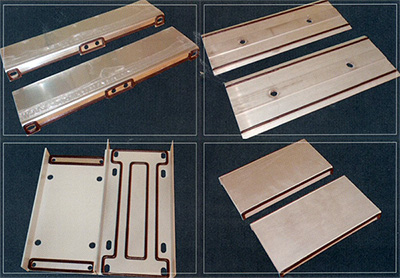

Small Sheet Metal Parts (Siemens)

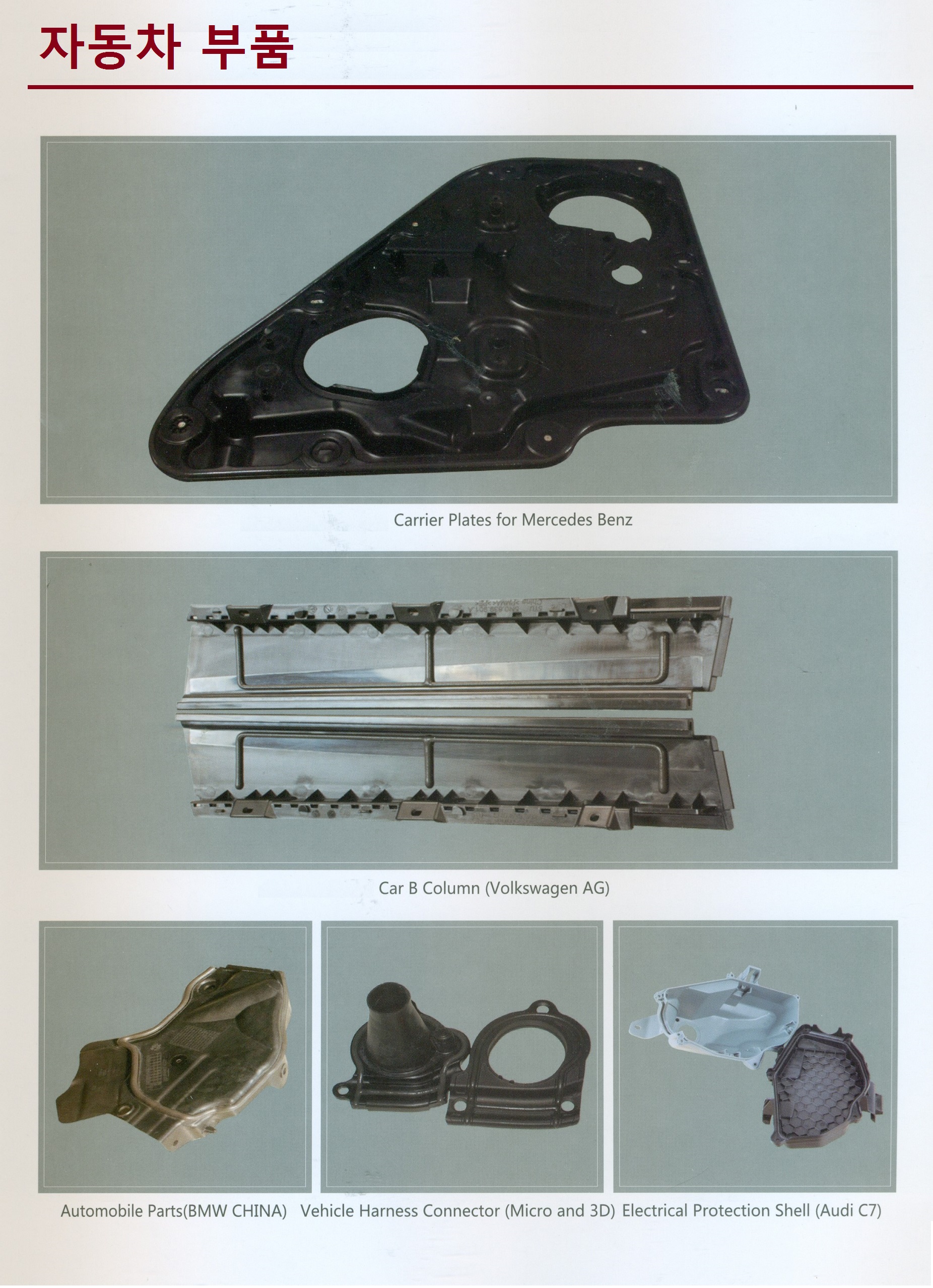

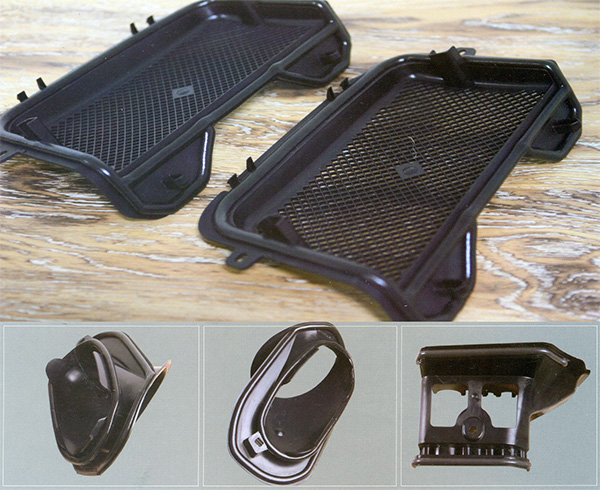

- 자동차 부품
-

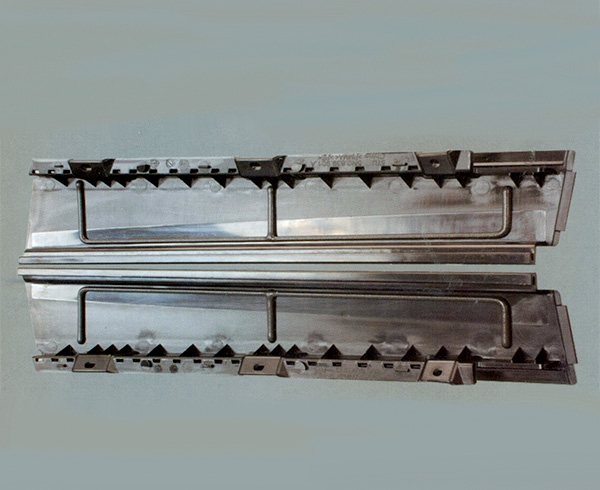

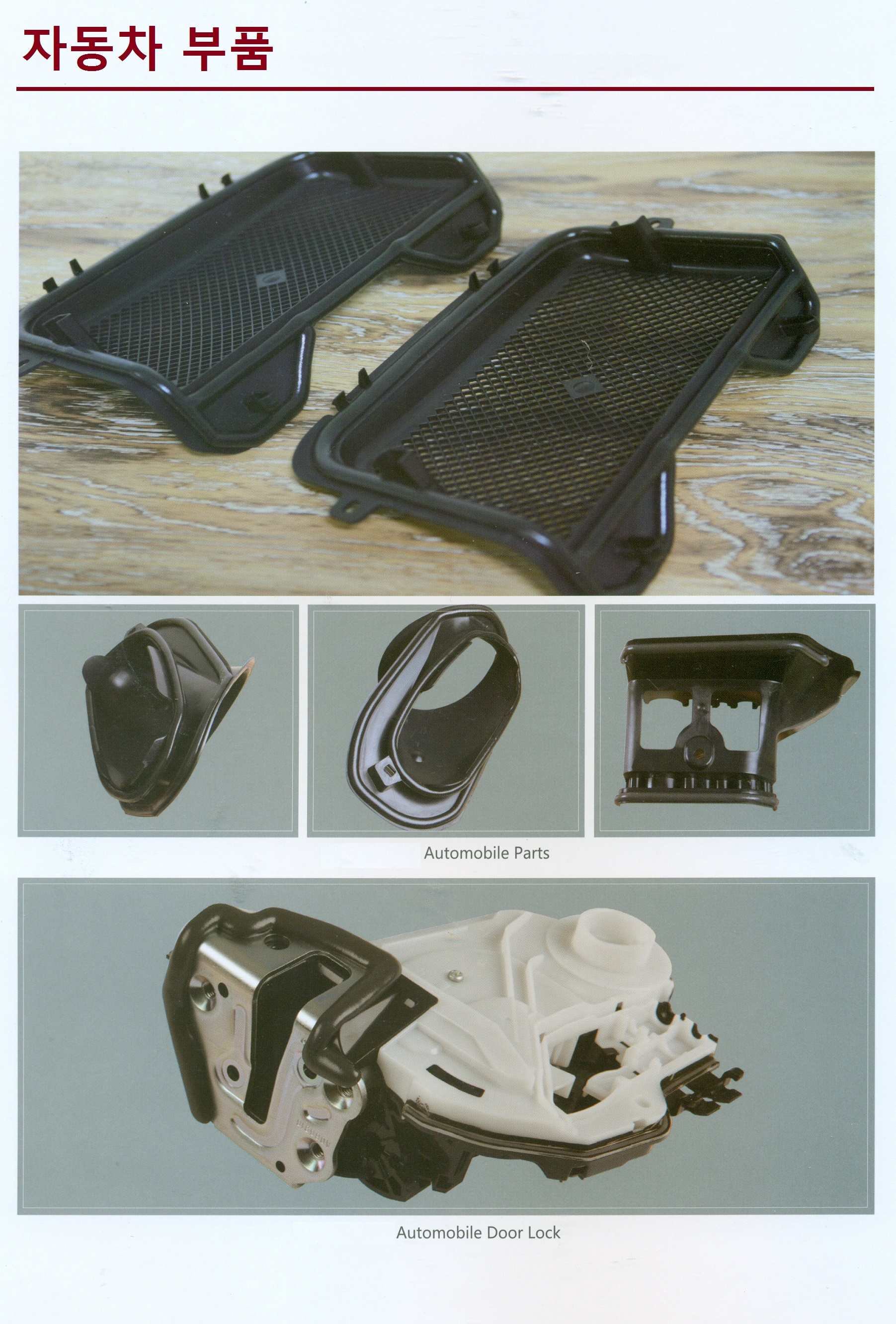

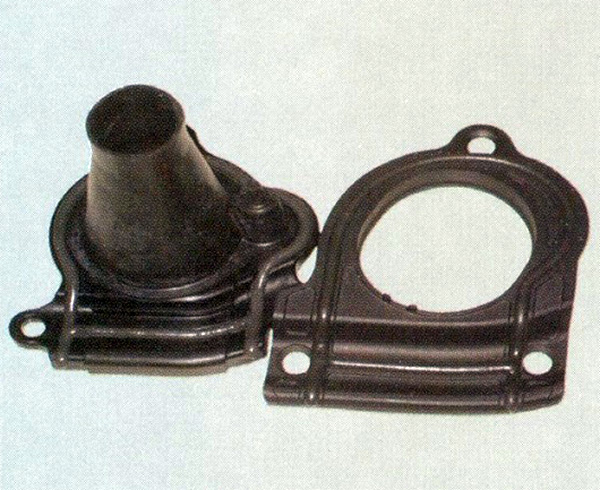

Automobile Parts

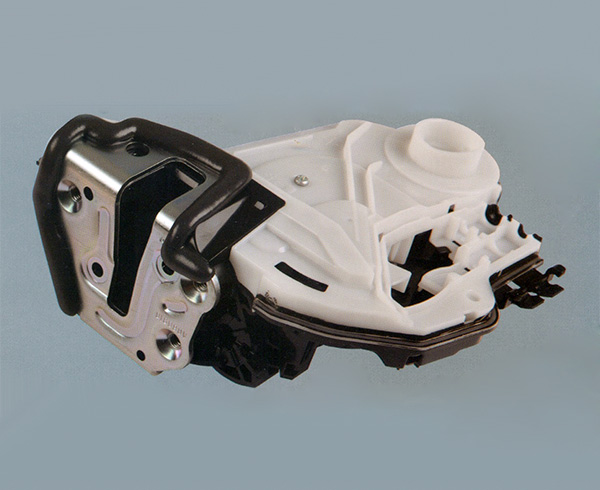

Automobile Door Lock

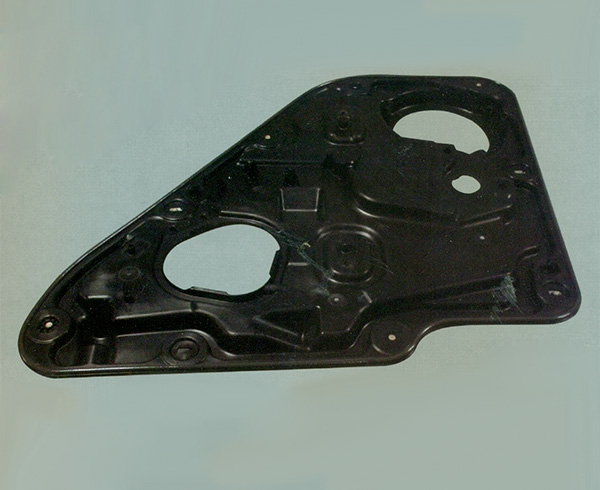

Carrier Plates for mercedes Benz
Car B Column (Volkswagen AG)
Vehicle Harness Connector (Micro and 3D)
Electrical Protection Shell (Audi C7)

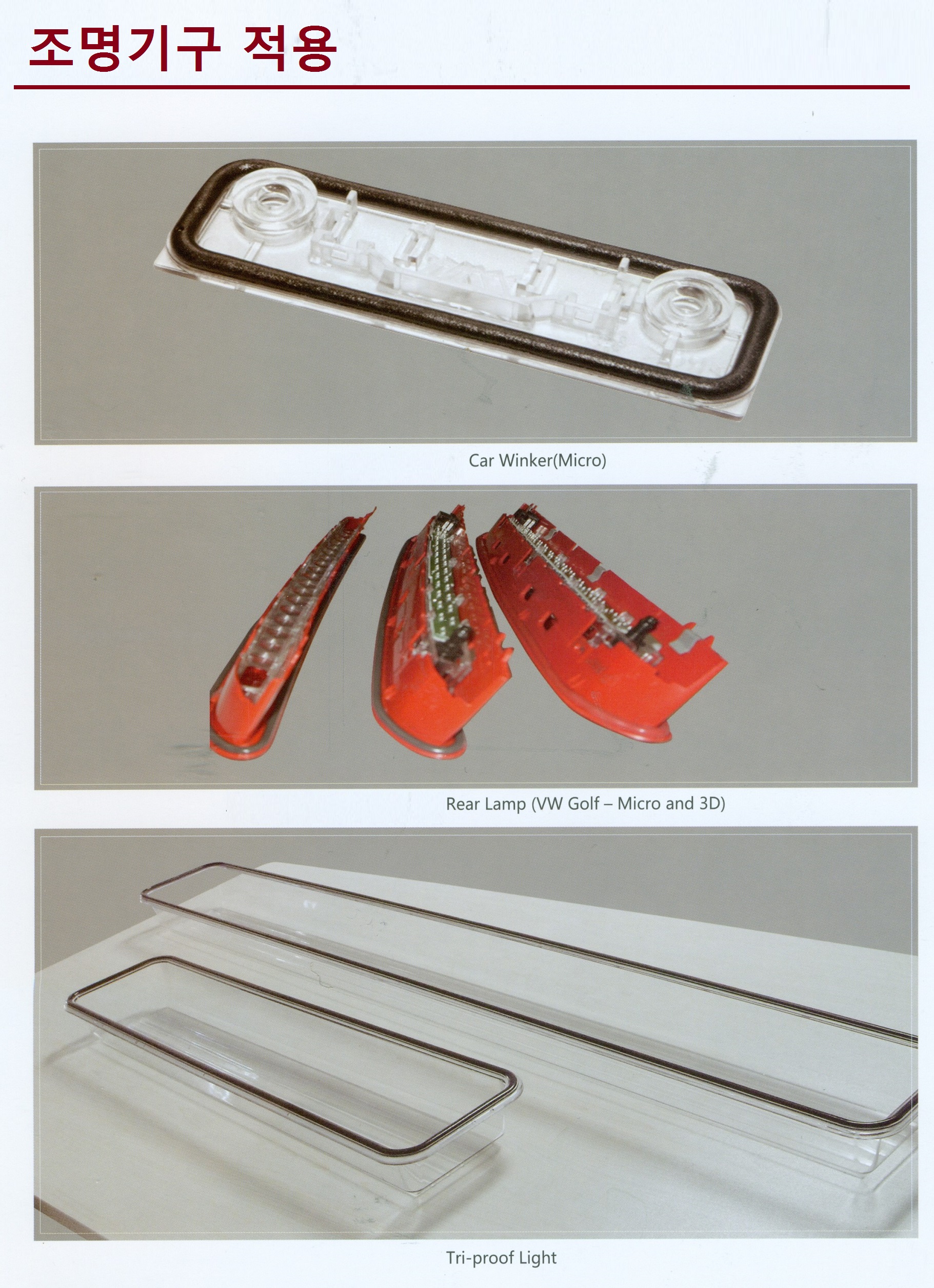

- 조명기구
-

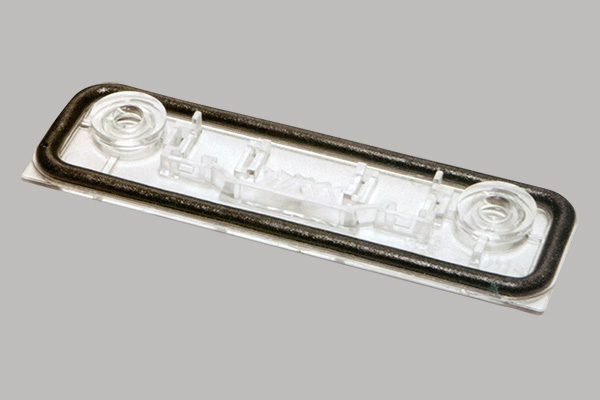

Car Winker (Micro)
Rear Lamp (VW Golf - Micro and 3D)

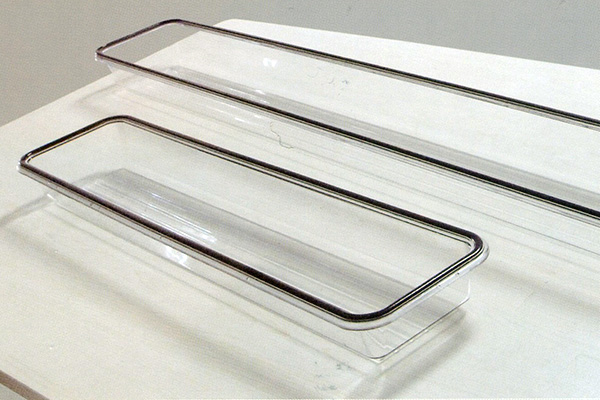

Tri-proof Light
- 플라스틱 박스 (케이스)
-

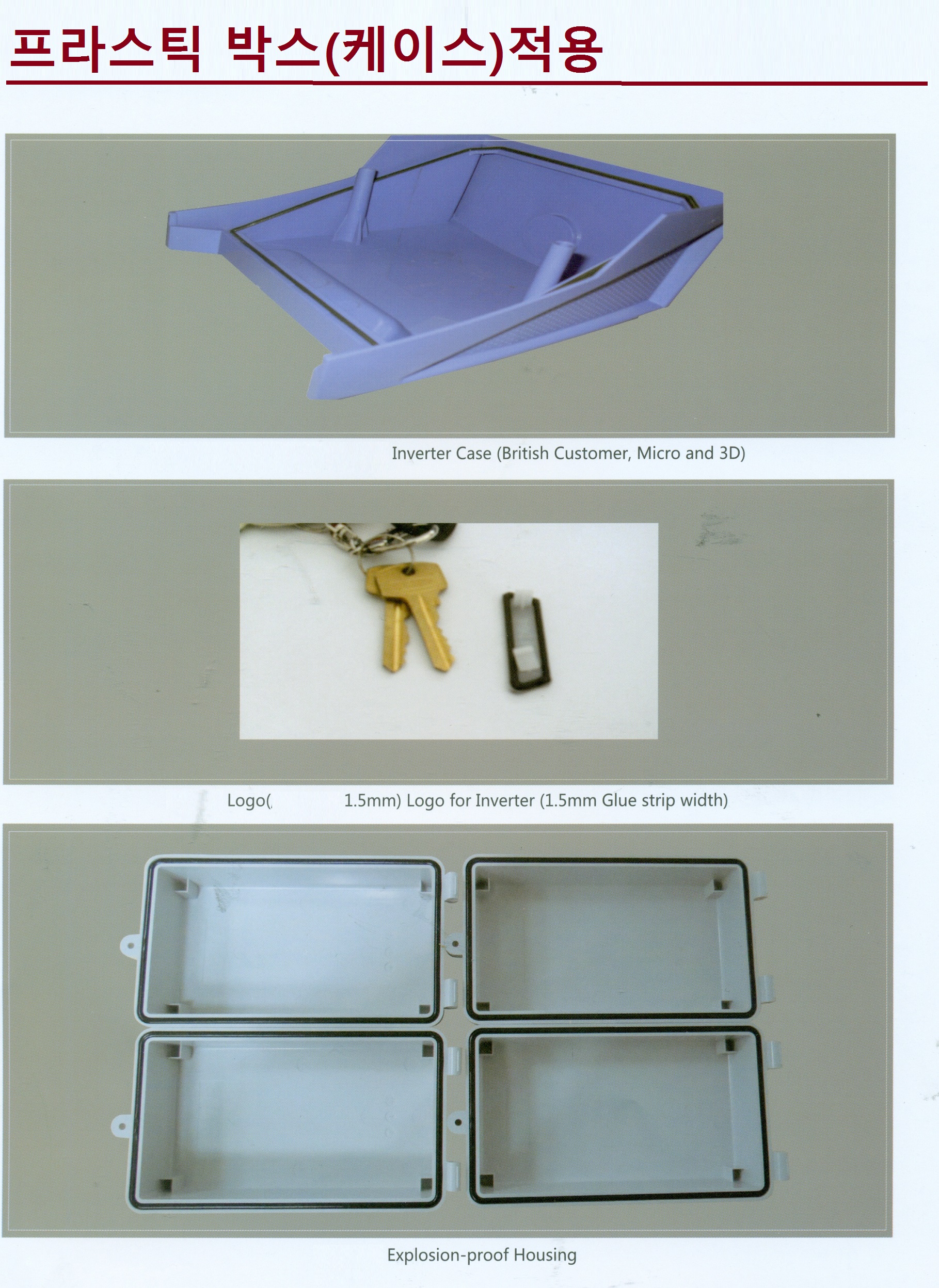

Inverter Case (British Customer, Micro and 3D)
Logo for Inverter (1.5㎜ Glue strip width)

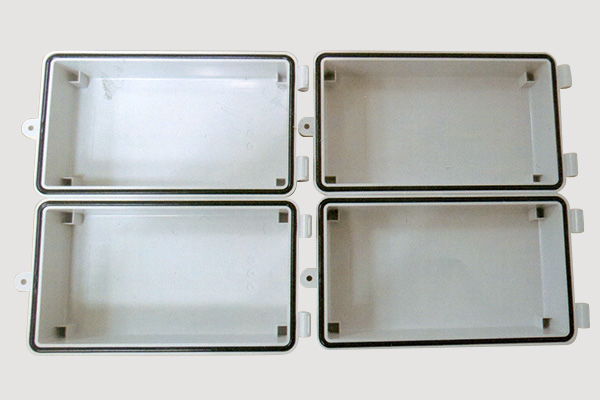

Explosion-proof Housing

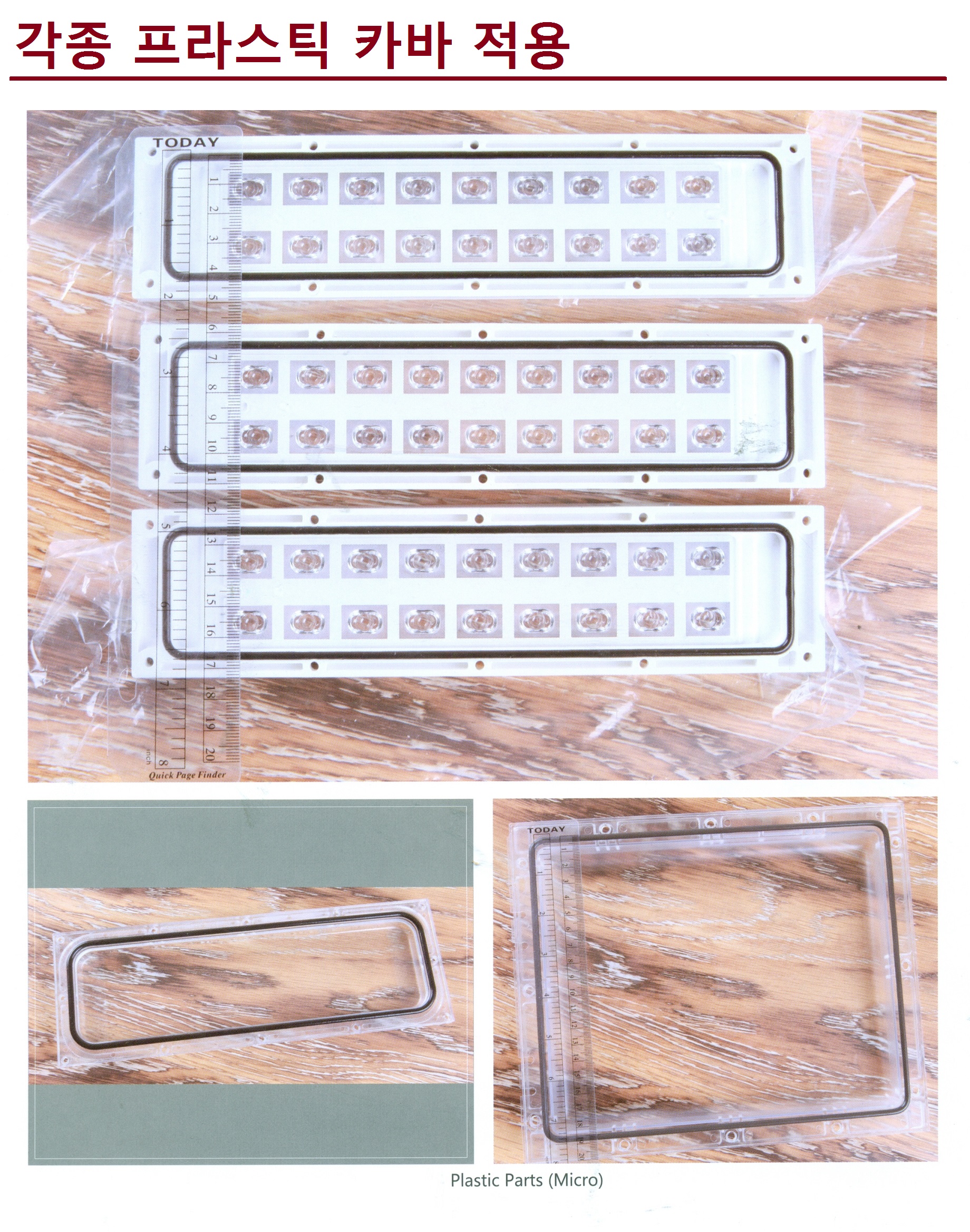

- 플라스틱 커버
-

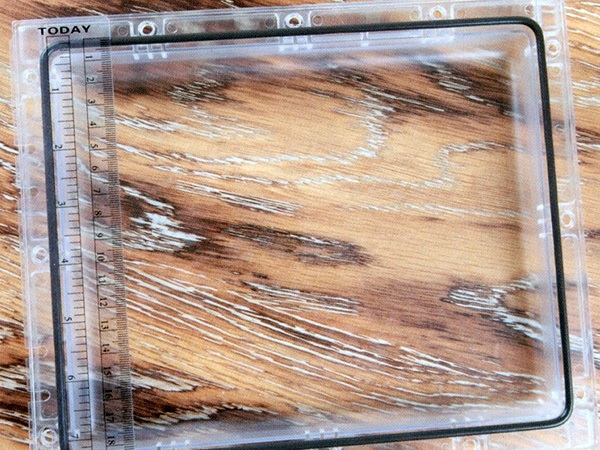

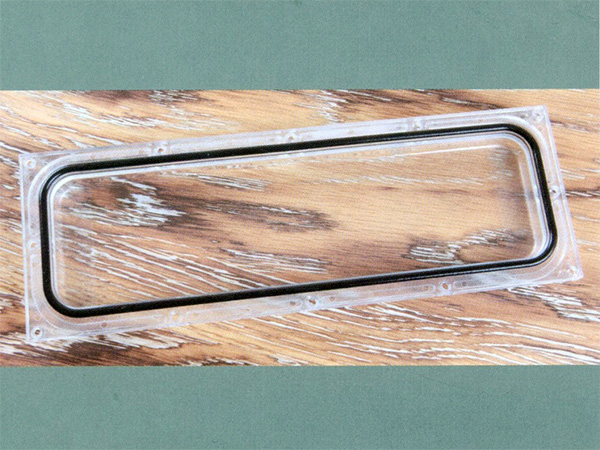

Plastic Parts (Micro)
Plastic Parts (Micro)
Plastic Parts (Micro)

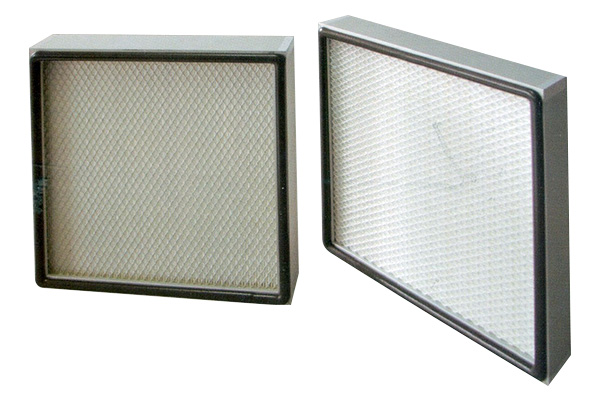

- 필터 (공조기)
-

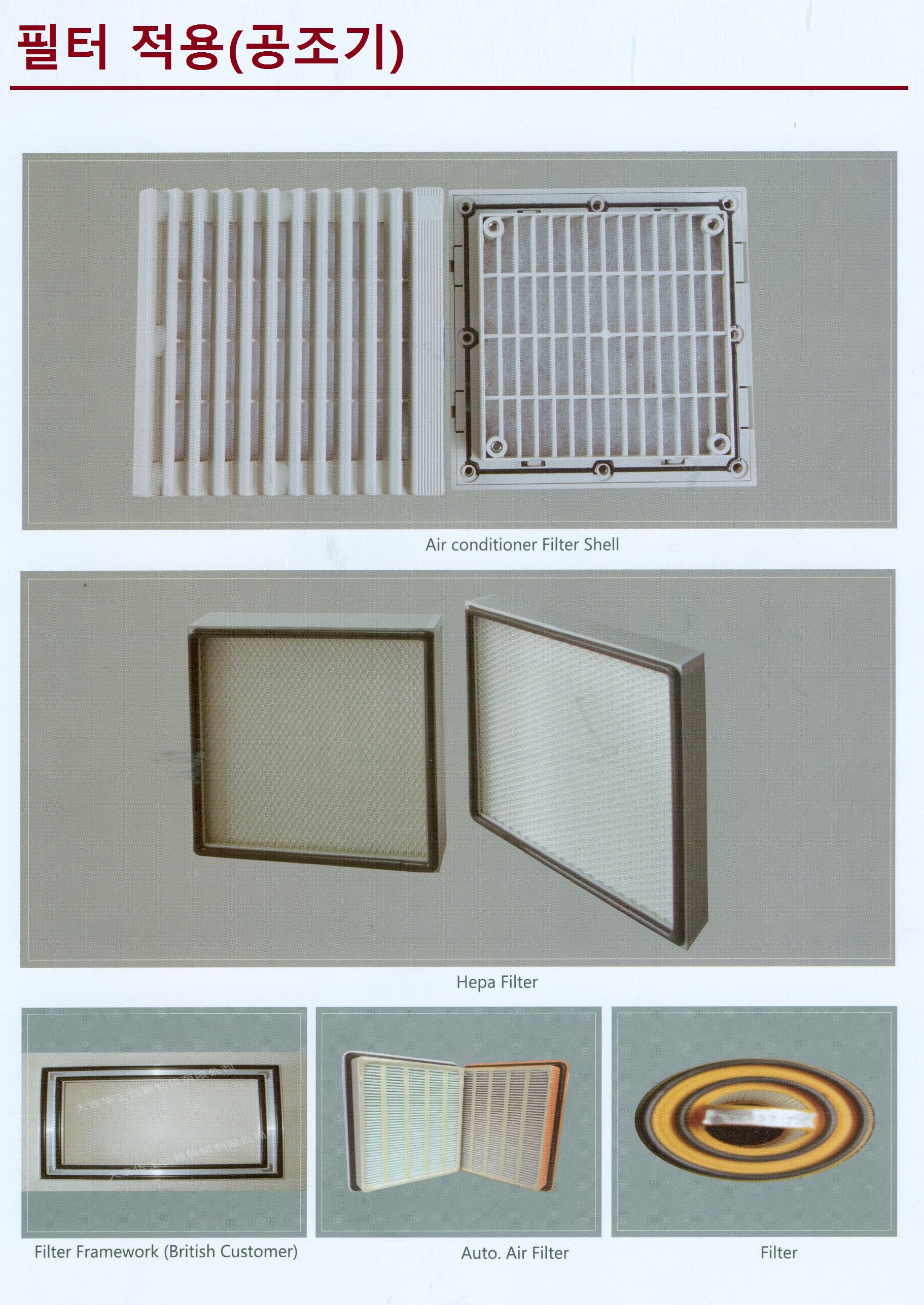

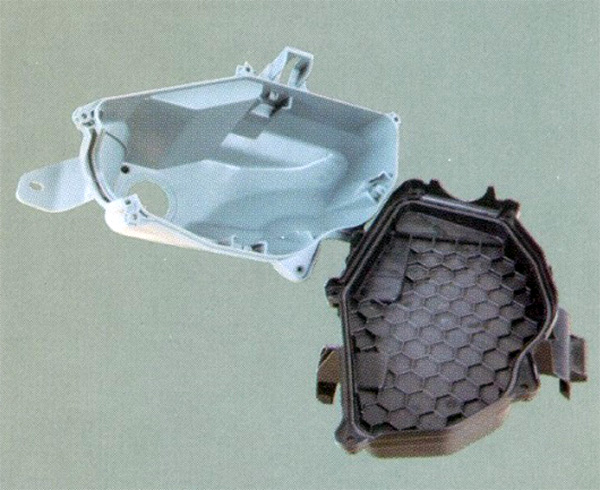

Air Conditioner Filter Shell

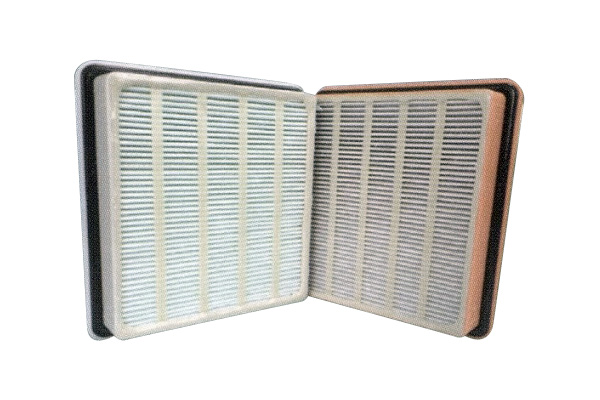

Hepa Filter

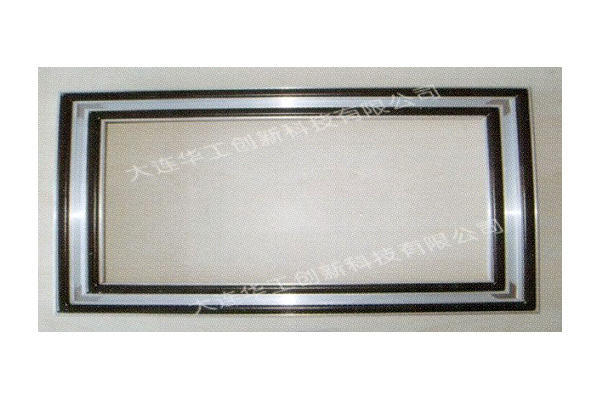

Filter Framework (British Customer)

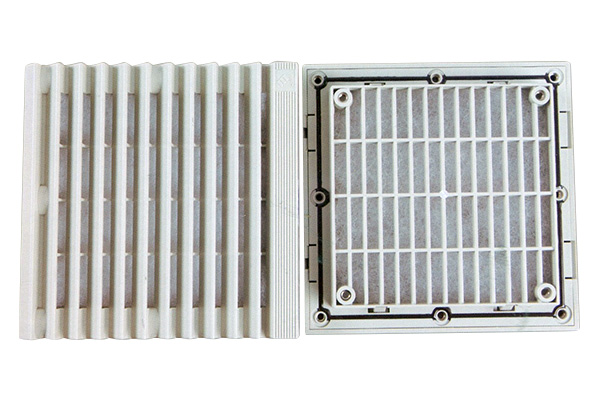

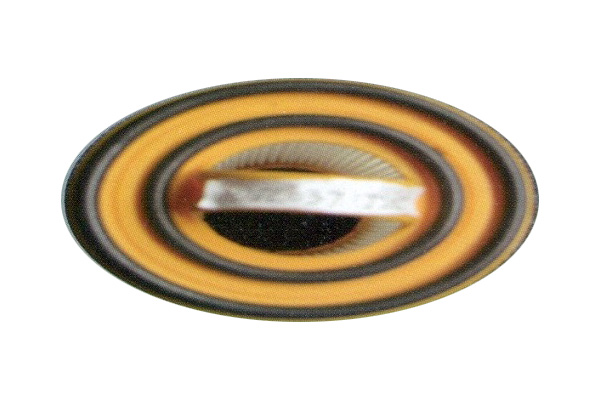

Auto. Air Filter
Filter
- 사무기구
-

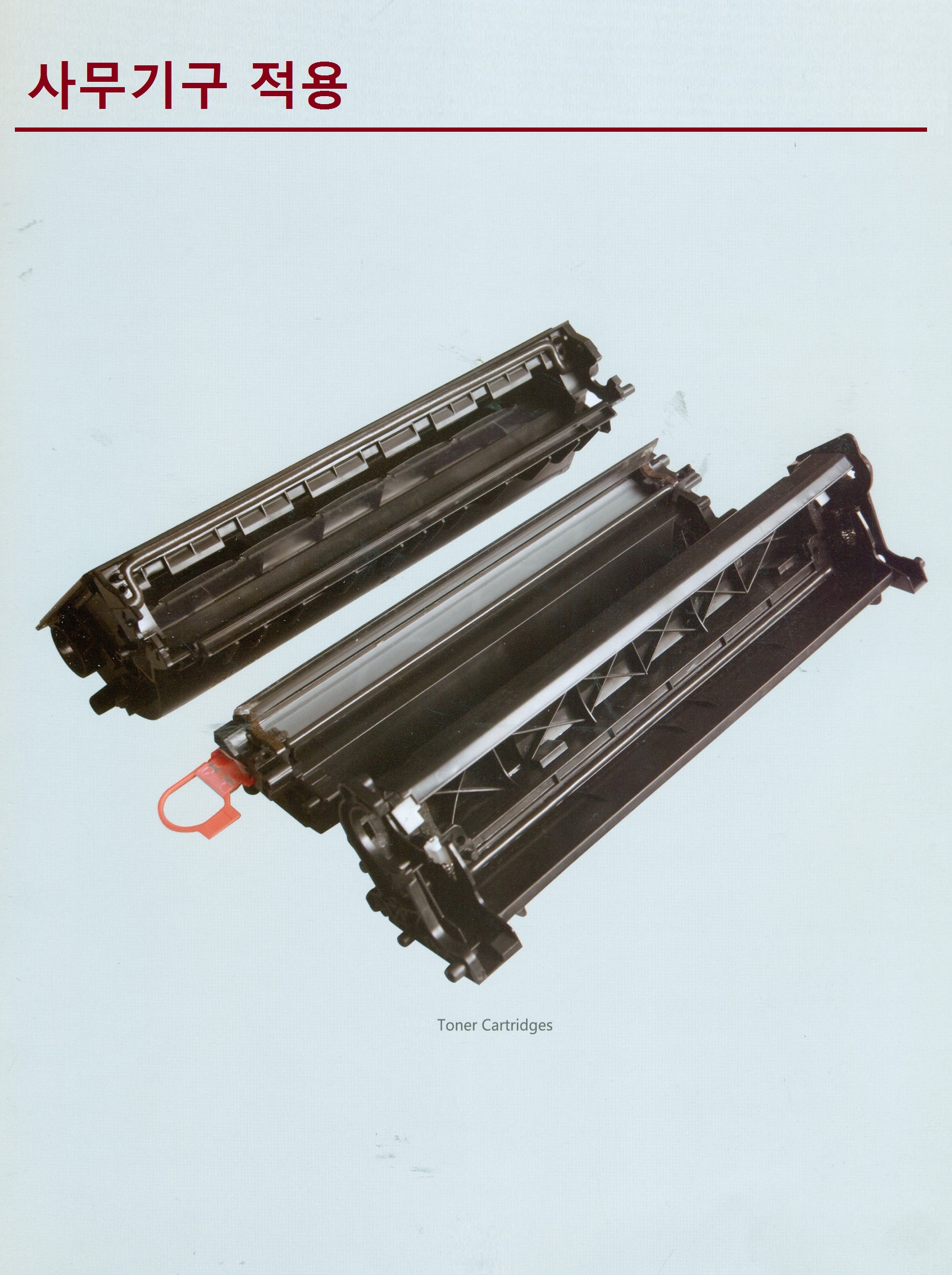

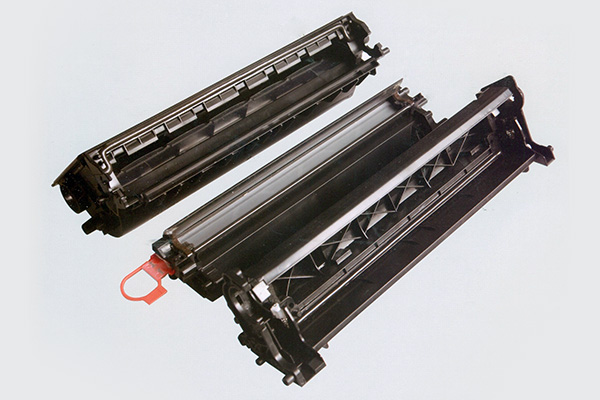

Toner Cartridges

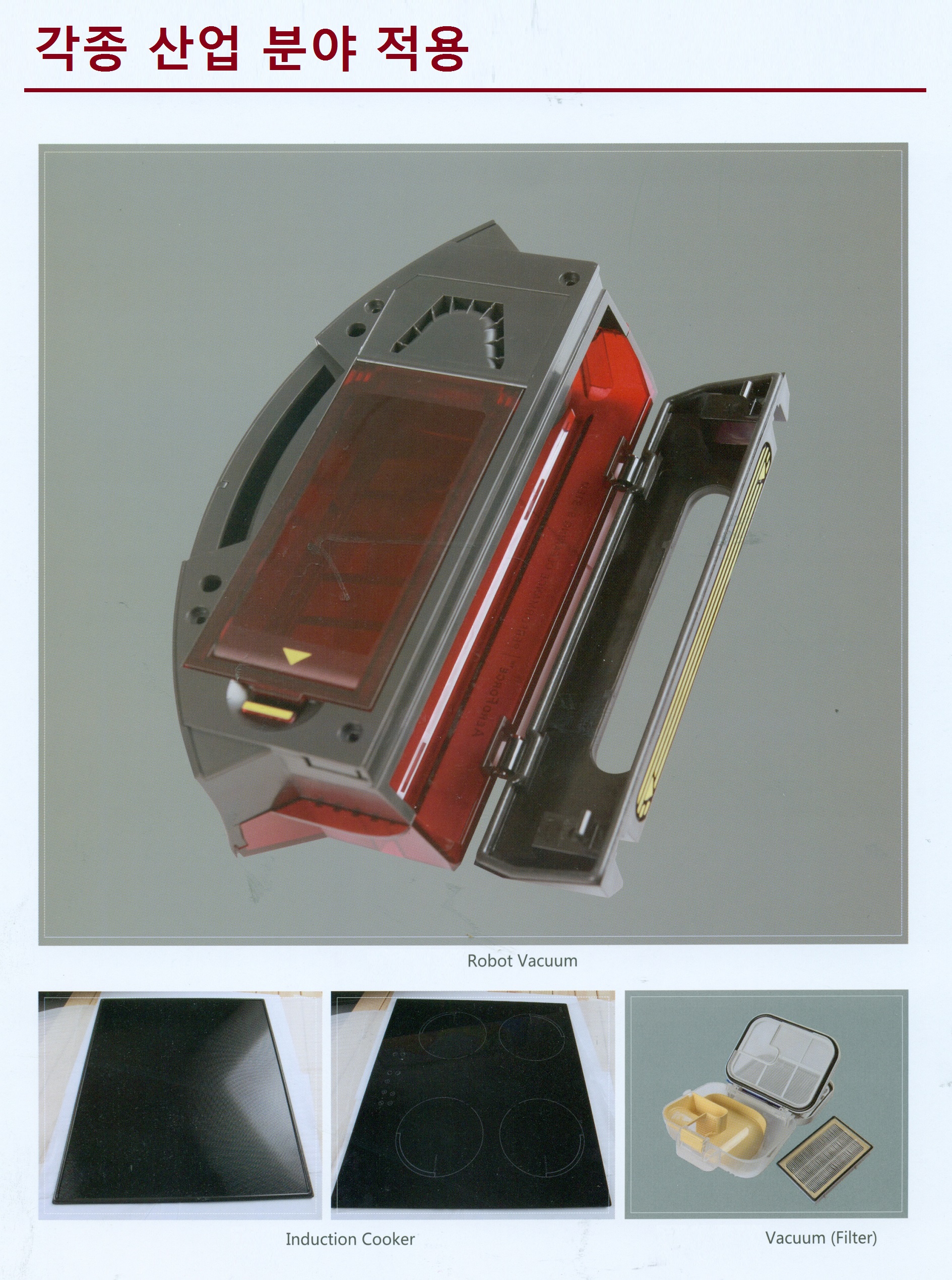

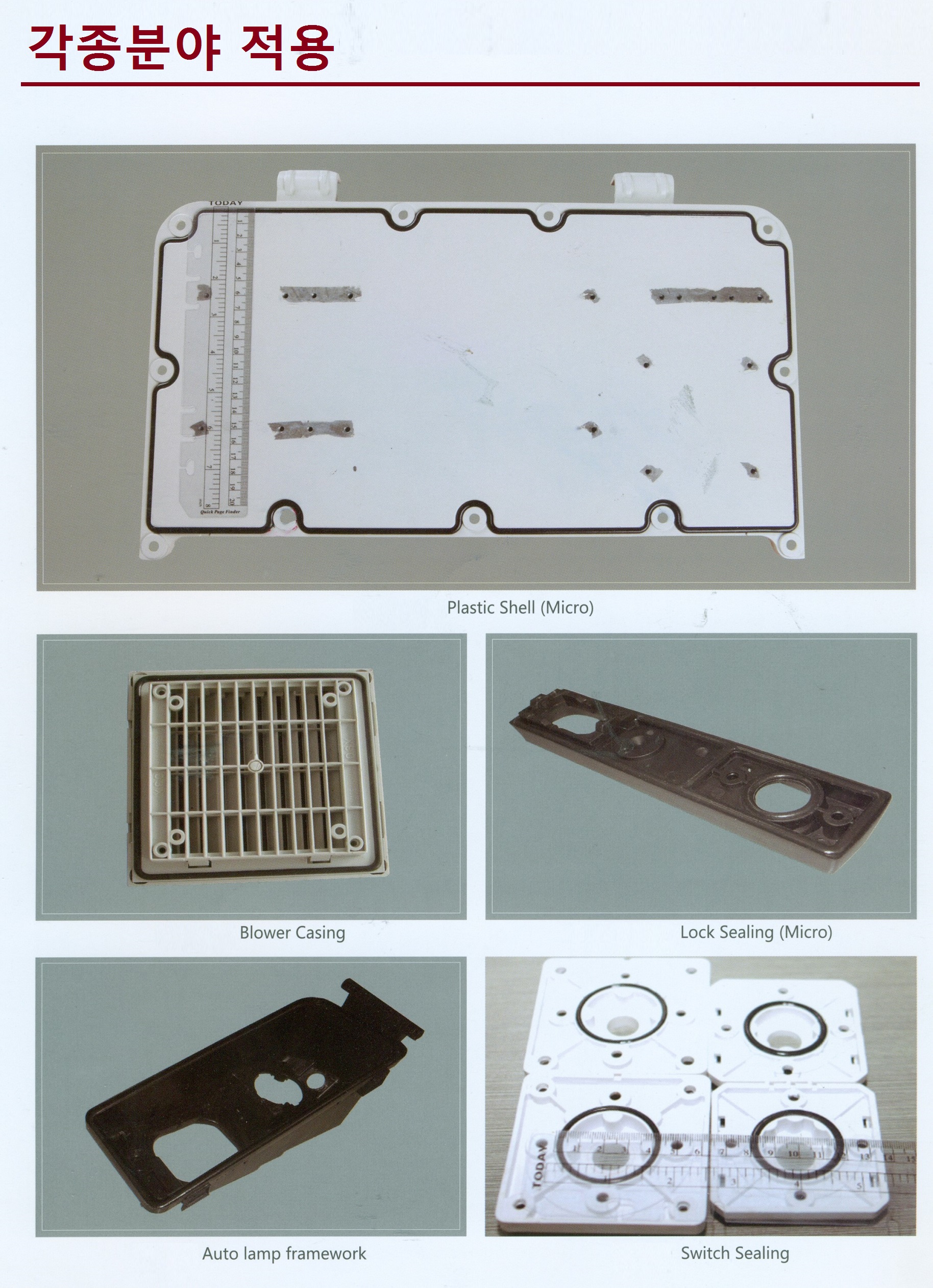

- 각종 산업 분야
-

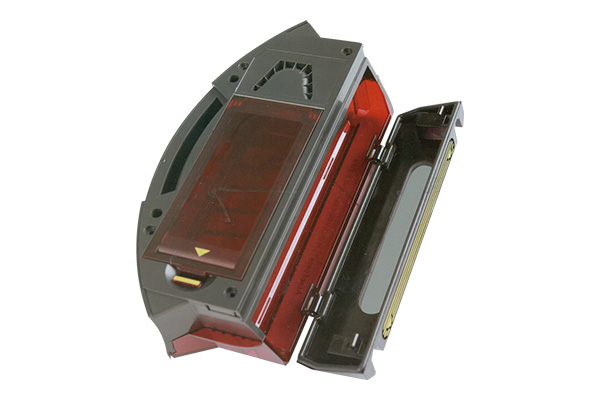

Roboto Vacuum

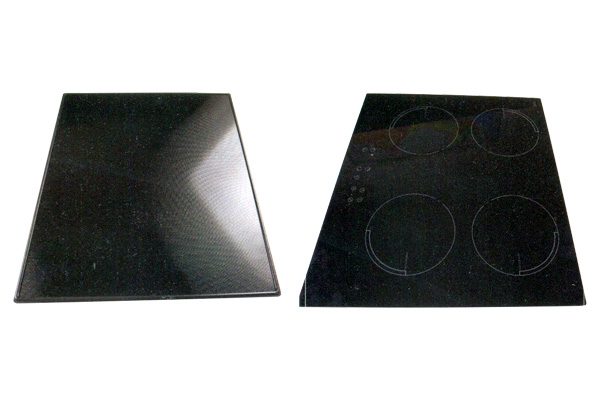

Induction Cooker

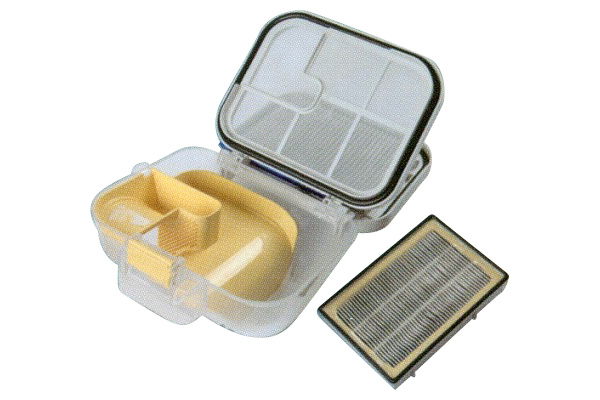

Vacuum Filter

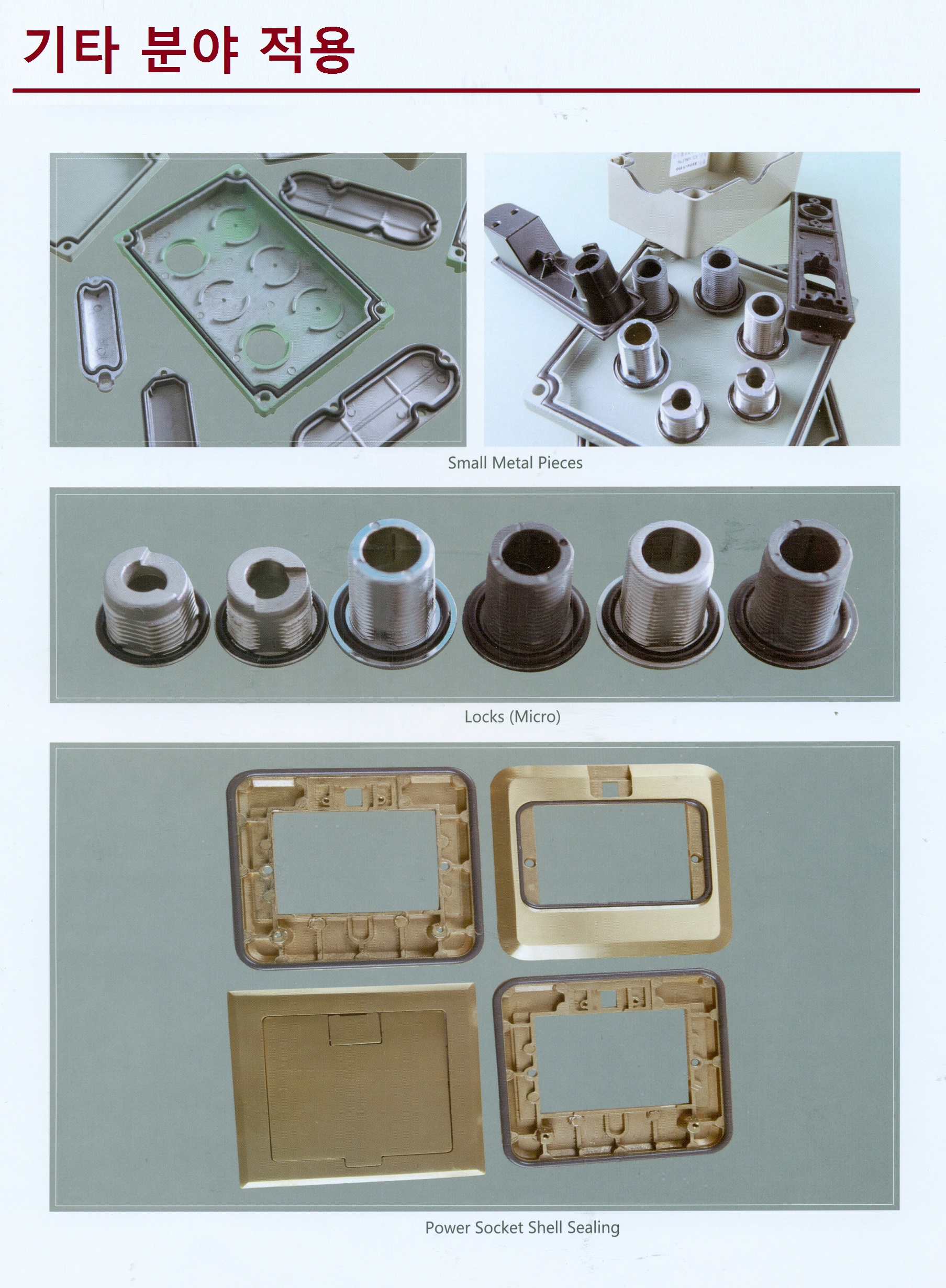

- 기타 적용사례
-

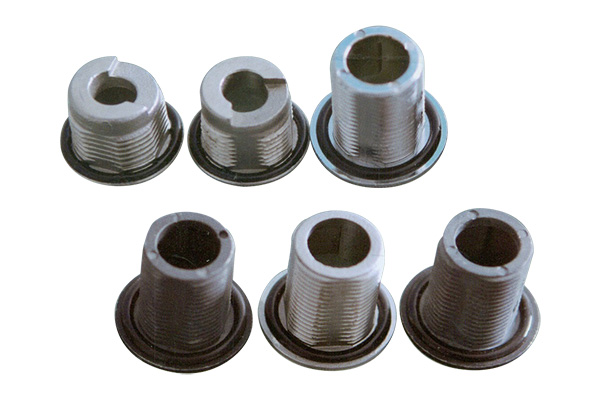

Small Metal Pieces
Small Metal Pieces

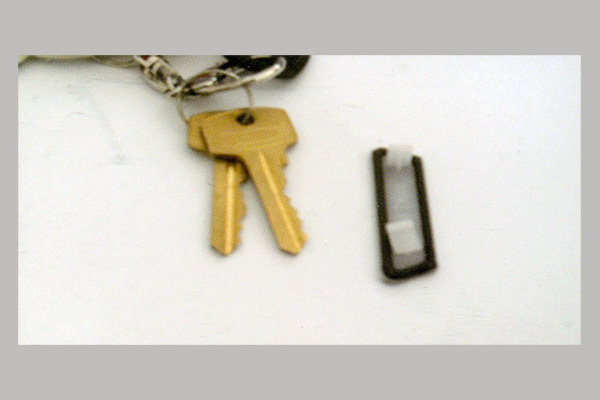

Locks (Micro)

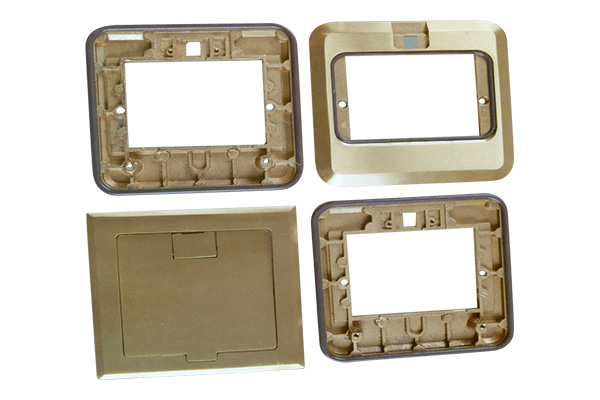

Power Socket Shell Sealing
- 해외수출 현황
-

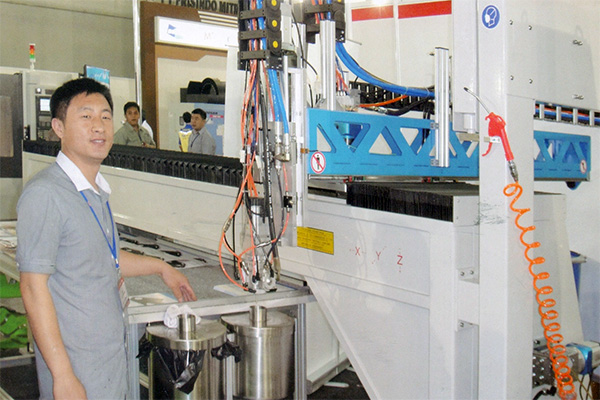

Indonesia MTT Exhibition
Dubai Customer
Indonesia Exhibition
Brazil Customer
Australian Customer
