팝 너트 툴
적용 예

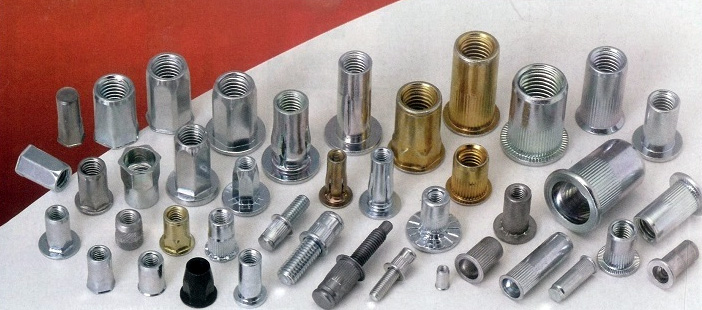

- 종류별 사진
-

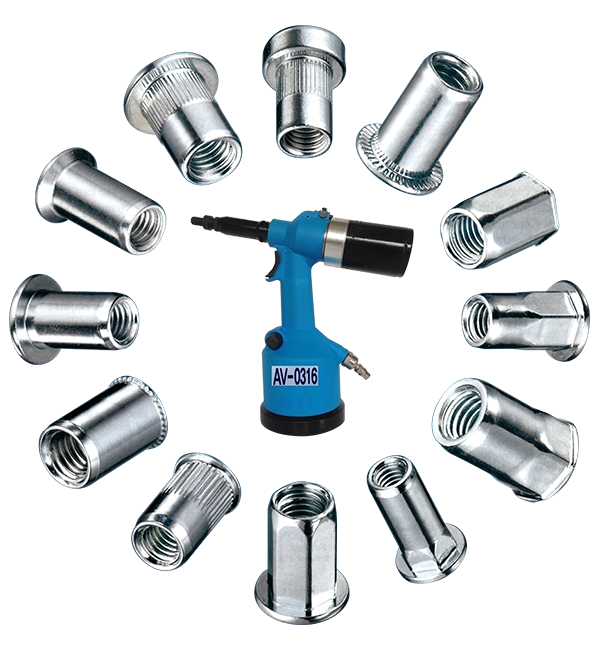

팝 너트 & Tool

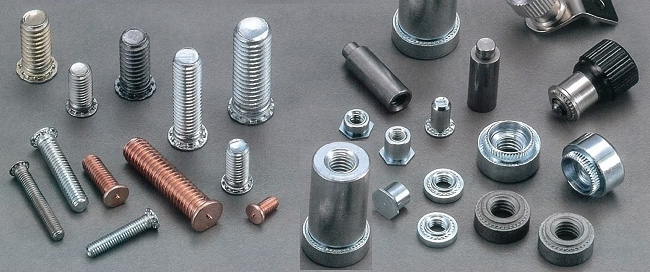

펨너트 / 펨볼트 / 스탠드오프 / 캡티브

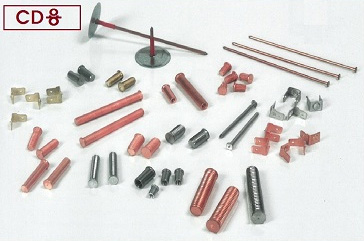

스터드 볼트 CD용

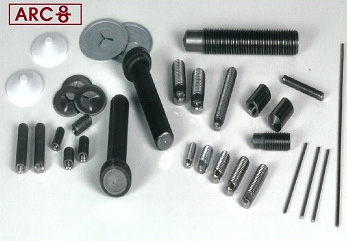

스터드 볼트 ARC용
모델별 상세설명

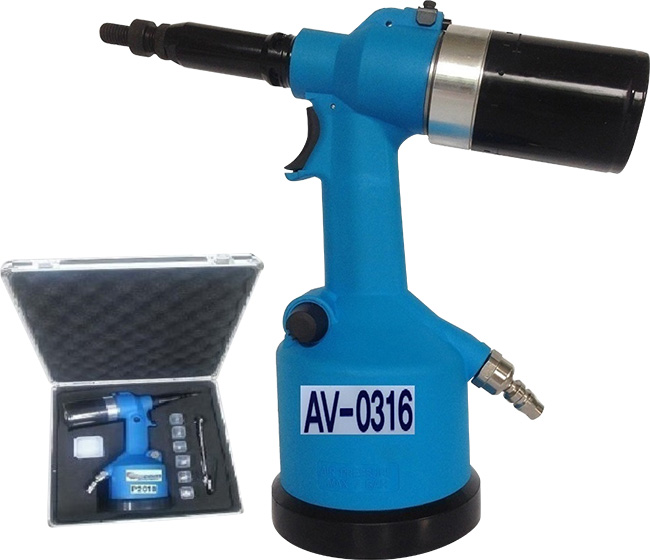

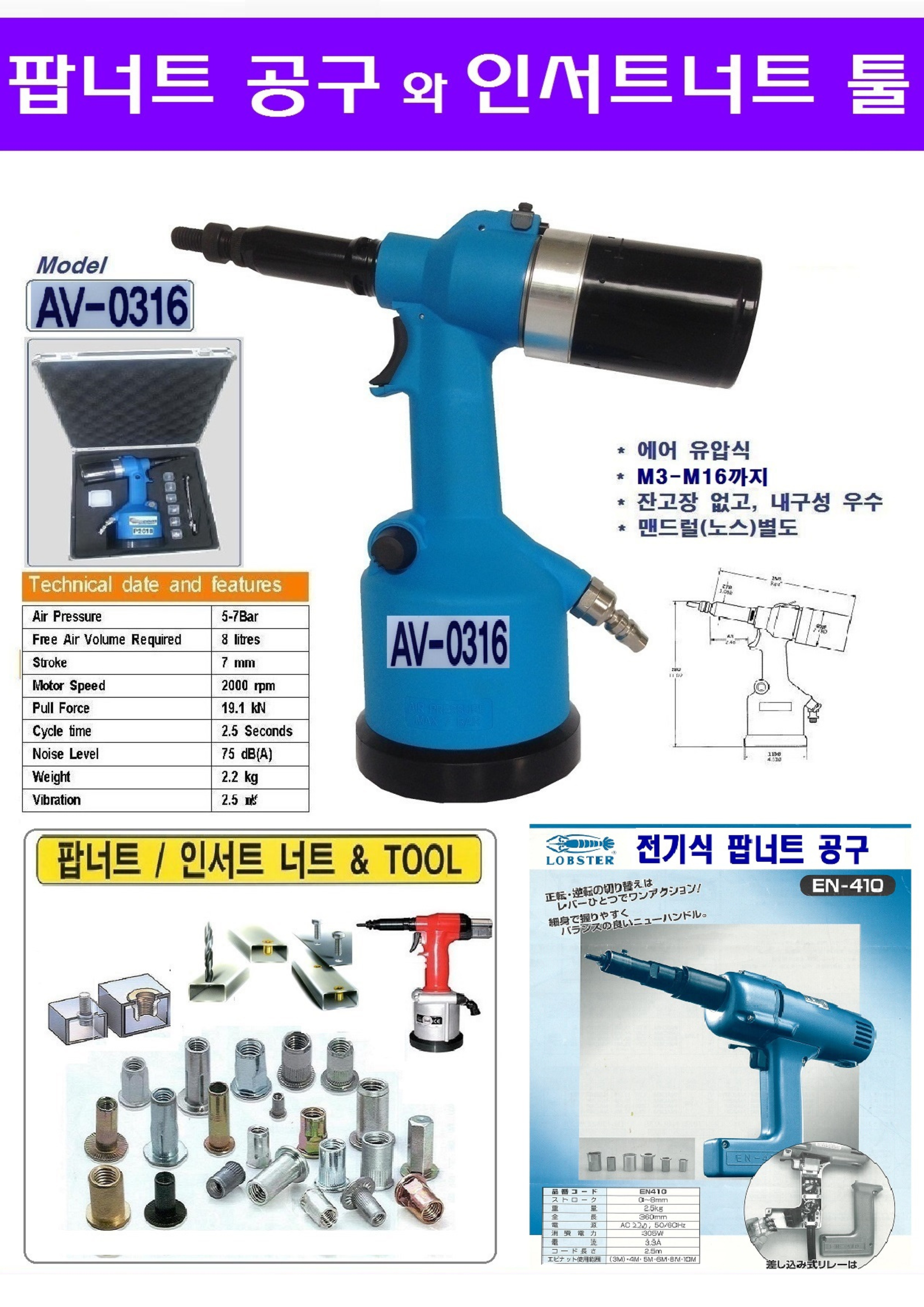

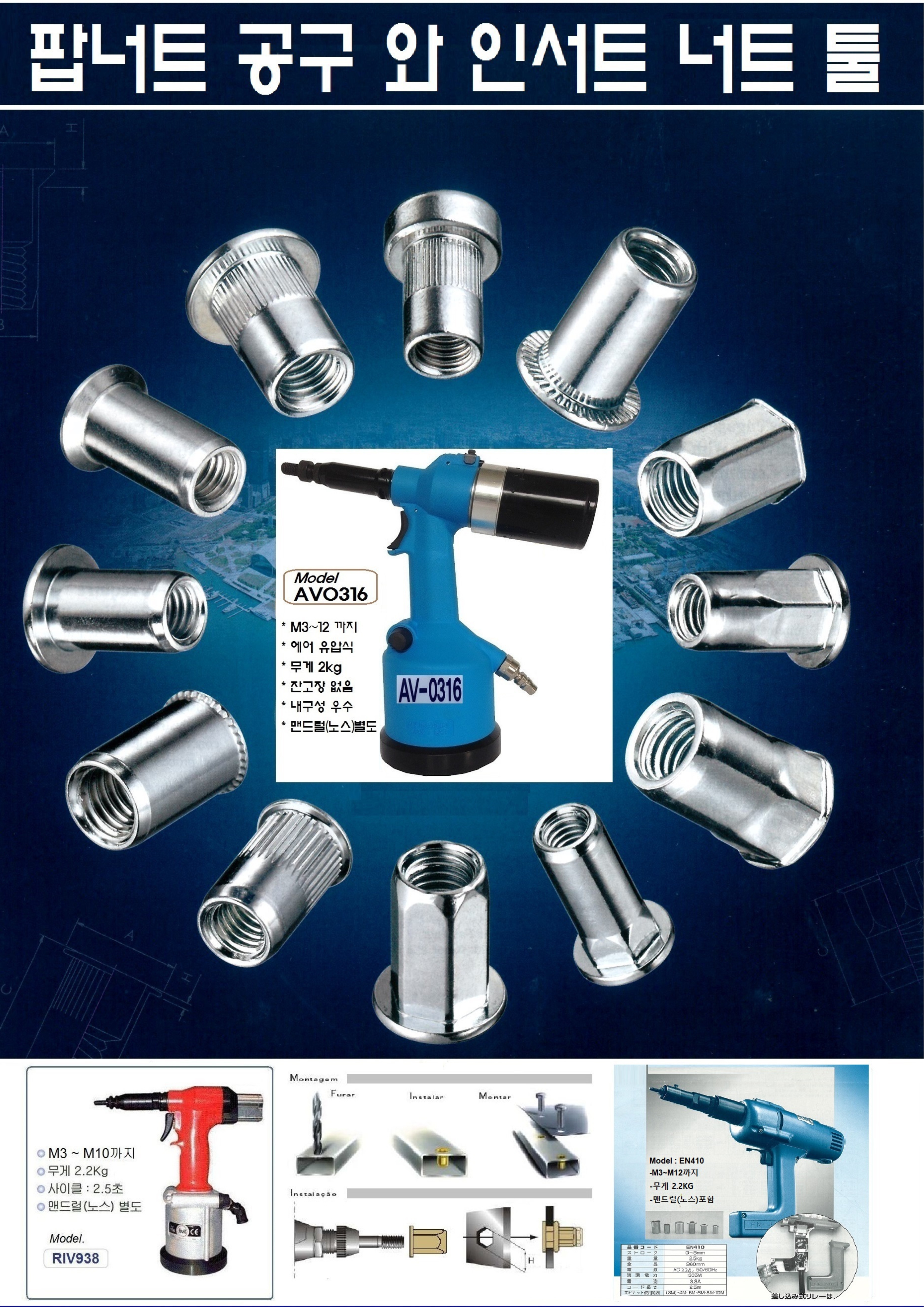

AV0316
에어 유압식
- M3~M16까지
- 잔고장 없고 내구성 우수
- 맨드럴(노스) 별도
| 항목 |
사양 |
| Air Pressure |
5~7 Bar |
| Free Air Volume Required |
8 litres |
| Stroke |
7㎜ |
| Motor Speed |
2,000rpm |
| Pull Force |
19.1kN |
| Cycle Time |
2.5 seconds |
| Noise Level |
75dB(A) |
| Weight |
2.2㎏ |
| Vibration |
2.5m/s2 |

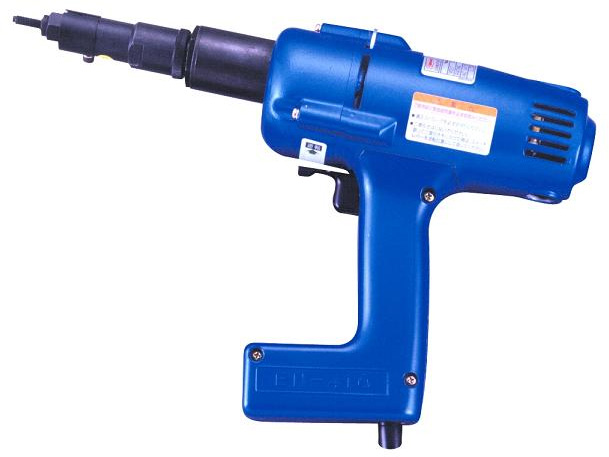

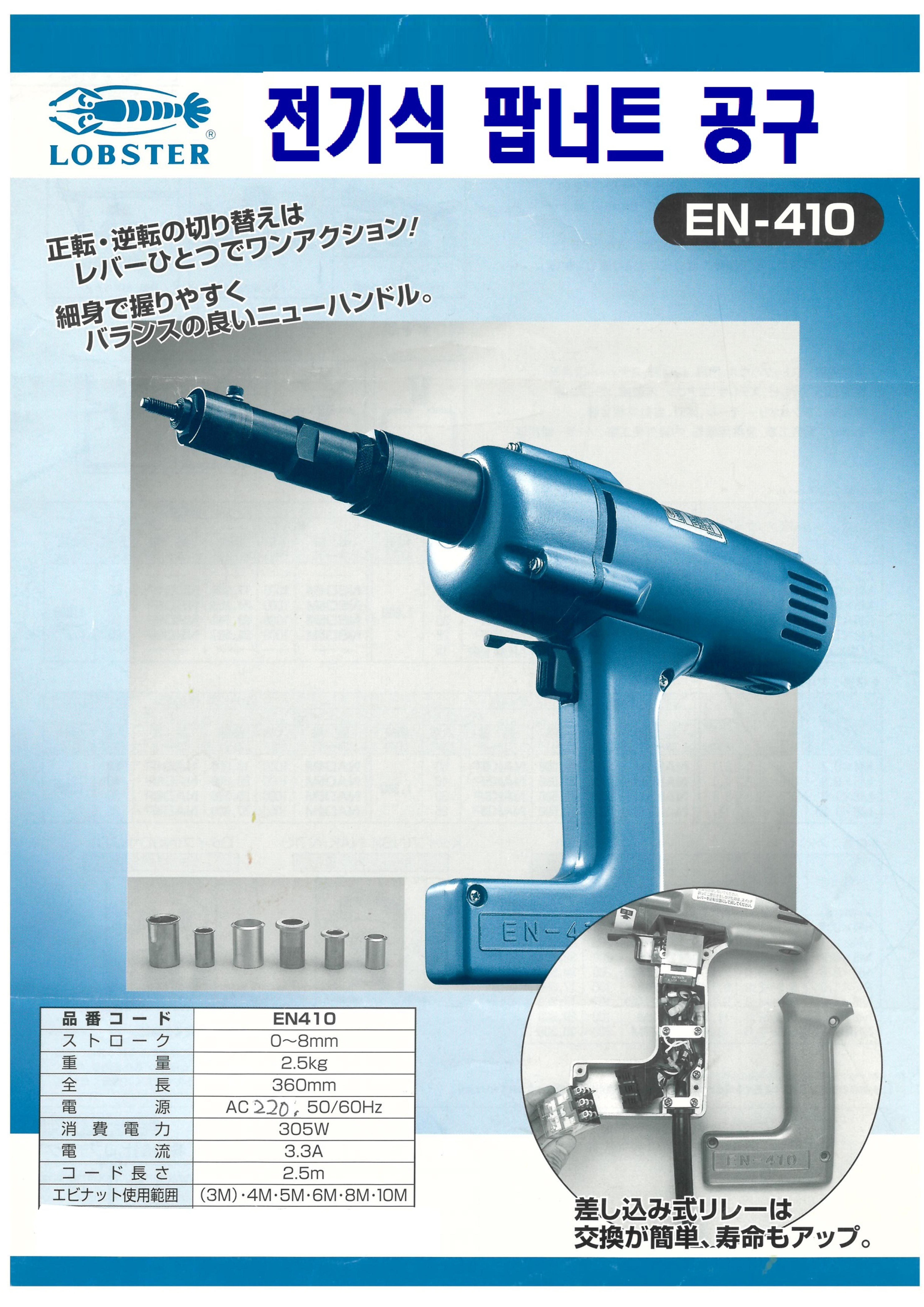

EN-410
전기식 팝너트 공구
- 正転·逆転の切り替えはレバーひとつでワンアクション。(원 터치 정·역전 전환)
- 細身で握りやすくバランスの良いニューハンドル。(잡기 쉽고 균형 잡힌 슬림한 손잡이)
- 差し込み式リレーは交換が簡単、 寿命もアップ。(교체가 쉬운 삽입식 릴레이로 수명 향상)
| 항목 |
사양 |
| ストローク |
0~8㎜ |
| 重量 |
2.5㎏ |
| 全長 |
360㎜ |
| 電源 |
AC220V, 50/60㎐ |
| 消費電力 |
305W/td>
|
| 電流 |
3.3A |
| コー ド長さ |
2.5m |
| エビナット使用範囲 |
(3M)/4M/5M/6M/8M/10M |

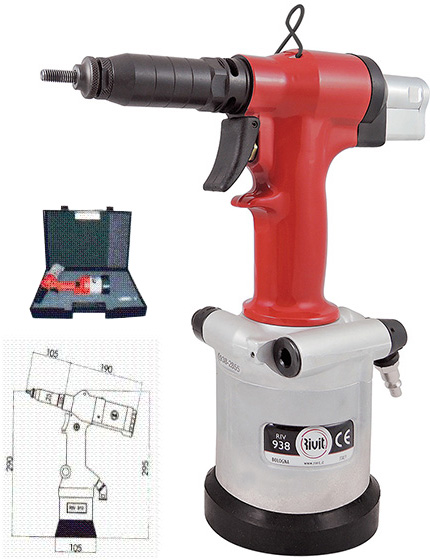

RIV938
에어식 인서트 너트 & Tool (팝 너트)
- 이탈리아 수입품
- 아브델 742와 RIV912 기종의 큰 단점을 해결
- 역회전 기능
- 정상으로 당겨진 것을 실수로 잘못 당겨도 또 당겨지지 않습니다.
- M3 ~ M12까지
- 잔고장 없고, 내구성 우수
- JIG가 반영구적임
| 항목 |
사양 |
| Nomanal Air Pressure |
6 Bar |
| Min./Max. Air Pressure |
5/7 Bar |
| Air Consumption per cycle (6 Bar) |
7.5 lt |
| Stroke |
1/6.5㎜ |
| Max. Power |
6 Bar / 2,500㎏ |
| Weight |
2.3㎏ |
| Vibrations |
< 2.5m/s2 |
| Loudness |
< 80dB(A) |

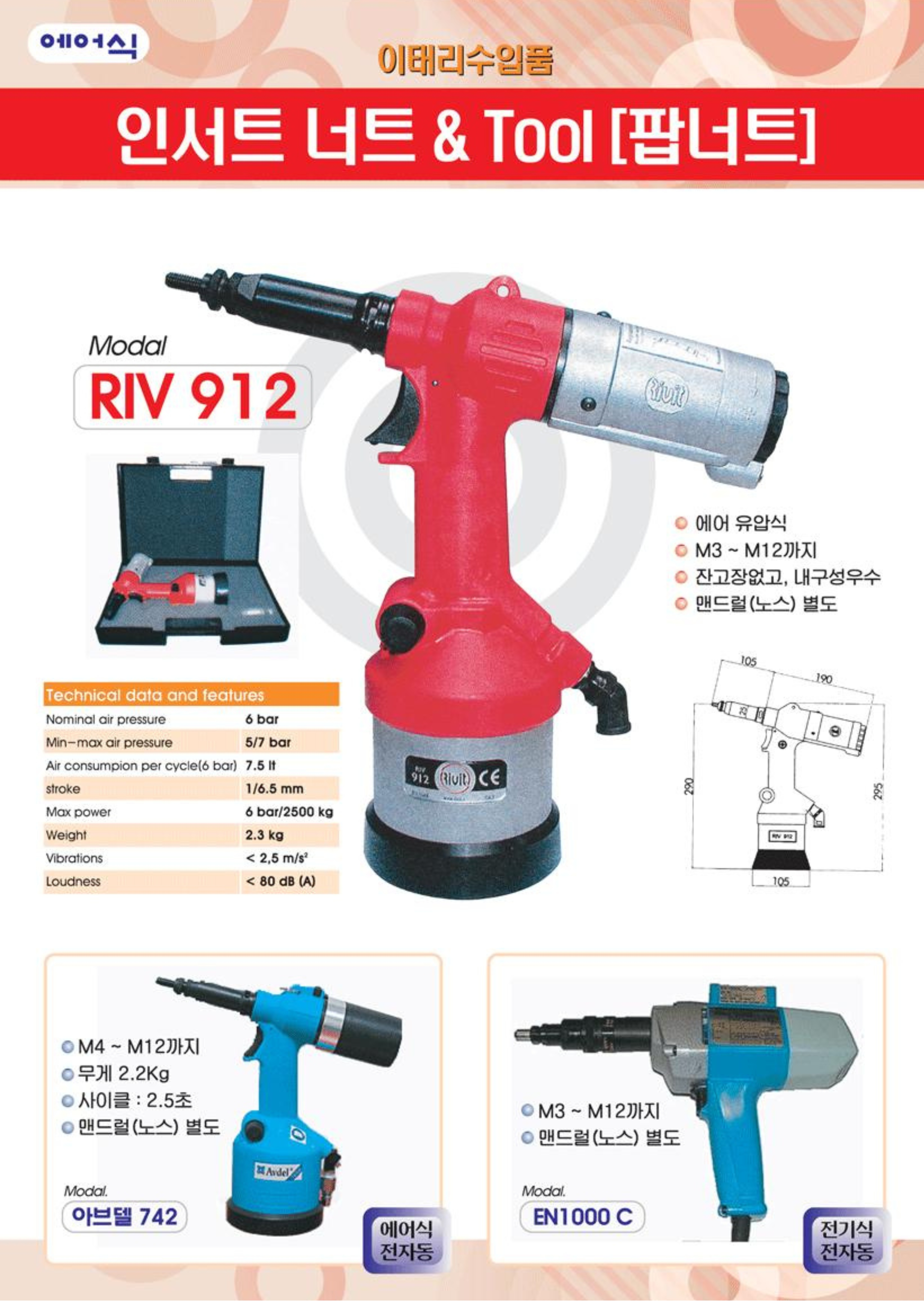

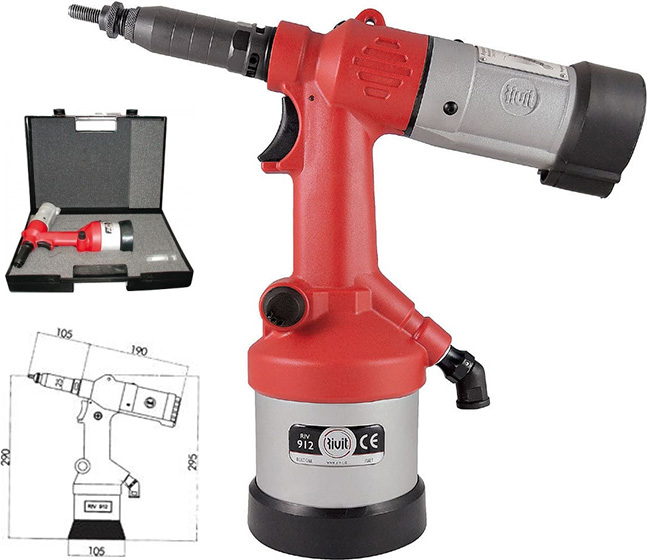

RIV912
에어 유압식 인서트 너트 & Tool (팝 너트)
- 이탈리아 수입품
- M3 ~ M12까지
- 잔고장 없고, 내구성 우수
- 맨드럴(노스) 별도
| 항목 |
사양 |
| Nomanal Air Pressure |
6 Bar |
| Min./Max. Air Pressure |
5/7 Bar |
| Air Consumption per cycle (6 Bar) |
7.5 lt |
| Stroke |
1/6.5㎜ |
| Max. Power |
6 Bar / 2,500㎏ |
| Weight |
2.3㎏ |
| Vibrations |
< 2.5m/s2 |
| Loudness |
< 80dB(A) |

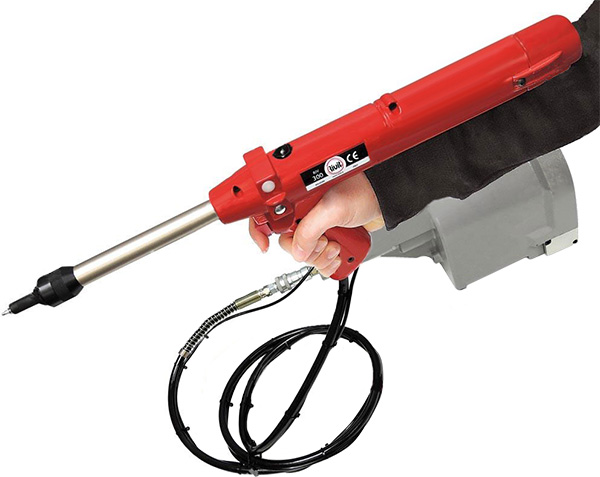

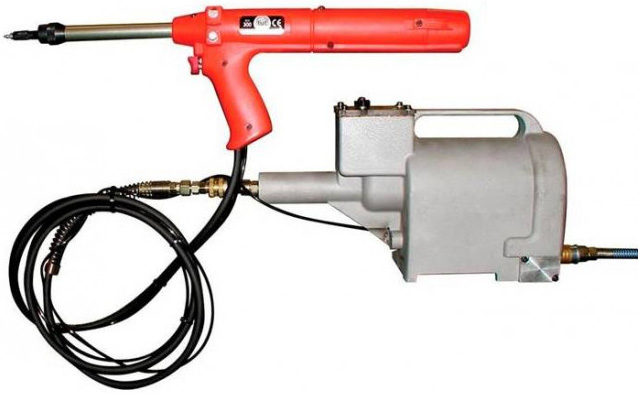

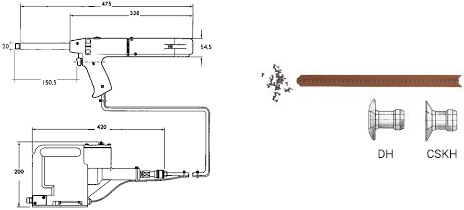

RIV300
Hydropneumatic Tool with oil compensator
컴퓨터/통신/전자기기 Case용 다연발 리벳트 & 공구
| 항목 |
사양 |
| Air Supply Pressure (min/max) |
5~7 Bar |
| Free Air Volume Required (@5.1bar) |
2.6 litres |
| Stroke |
30㎜ |
| Pull Force |
3.89kN |
| Cycle Time (approx) |
1 seconds |
| Noise Level (less than) |
70dB(A) |
| Total Weight (Handle + Compensator) |
9.0㎏ |
| Overall Length (without head) |
475㎜ |
| Vibration |
< 2.5m/s2 |
- 용도
- 엘리베이터, 건축물, 공조기(송풍기), 철도 레일, 냉동(탑) 차, 트레이드, 통신 전기배전반, 하역 운반설비, 오락시설, 광산 설비, 송전탑, 철 구조물 등

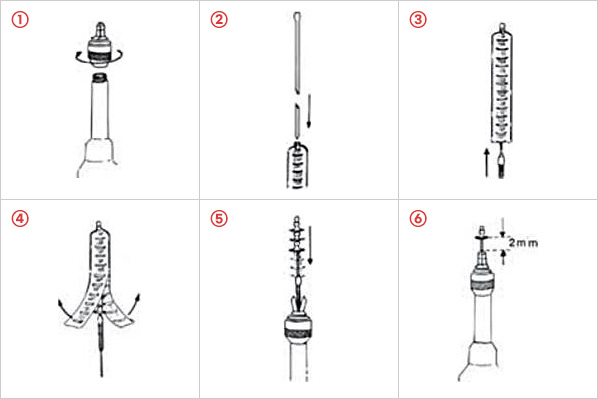

- Assembly Inductions
-
- Screw the head
- Insert the mandrel inside the blind rivet cartridge
- Insert the spring in the mandrel
- Take away the blind rivet wrapper
- Insert the mandrel in the tool, by opening the jaws of the head
- Lock the tool jaws on the mandrel

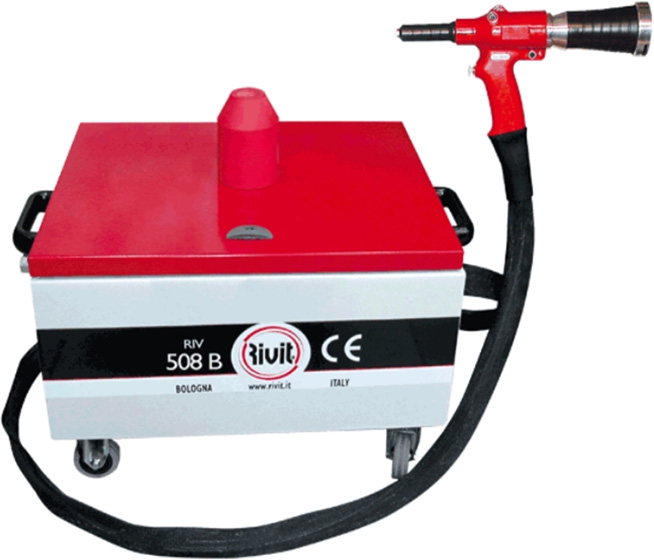

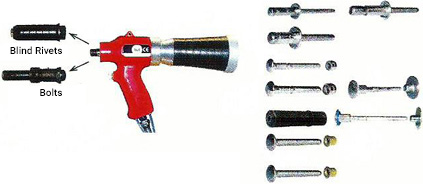

RIV508B
Hydropneumatic Tool for Rivets and Bolts
Fasteners, 리벳, 볼트 & 유압공구
| 항목 |
사양 |
| Nomanal Air Pressure |
4.9~6.9 Bar |
| Tensile Strength (4.9bar) |
360N |
| Cylinder Stroke |
26㎜ |
| Tool Speed (Depending on the installed valve-stroke/min) |
15~25 |
| Loudness Level |
78.1㏈(A) |
| Handle Weight |
1.8㎏ |
| Total Weight (Handle without head + control unit) |
37㎏ |
| Hoses Length |
2.5mt |
| Oil pressure (with 6bar of air pressure) |
300 Bar |
| Vibrations |
2.5m/s2 |
| Intensification Ratio |
50:1 |

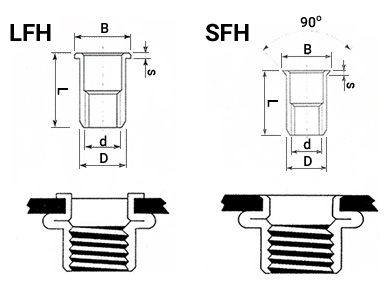

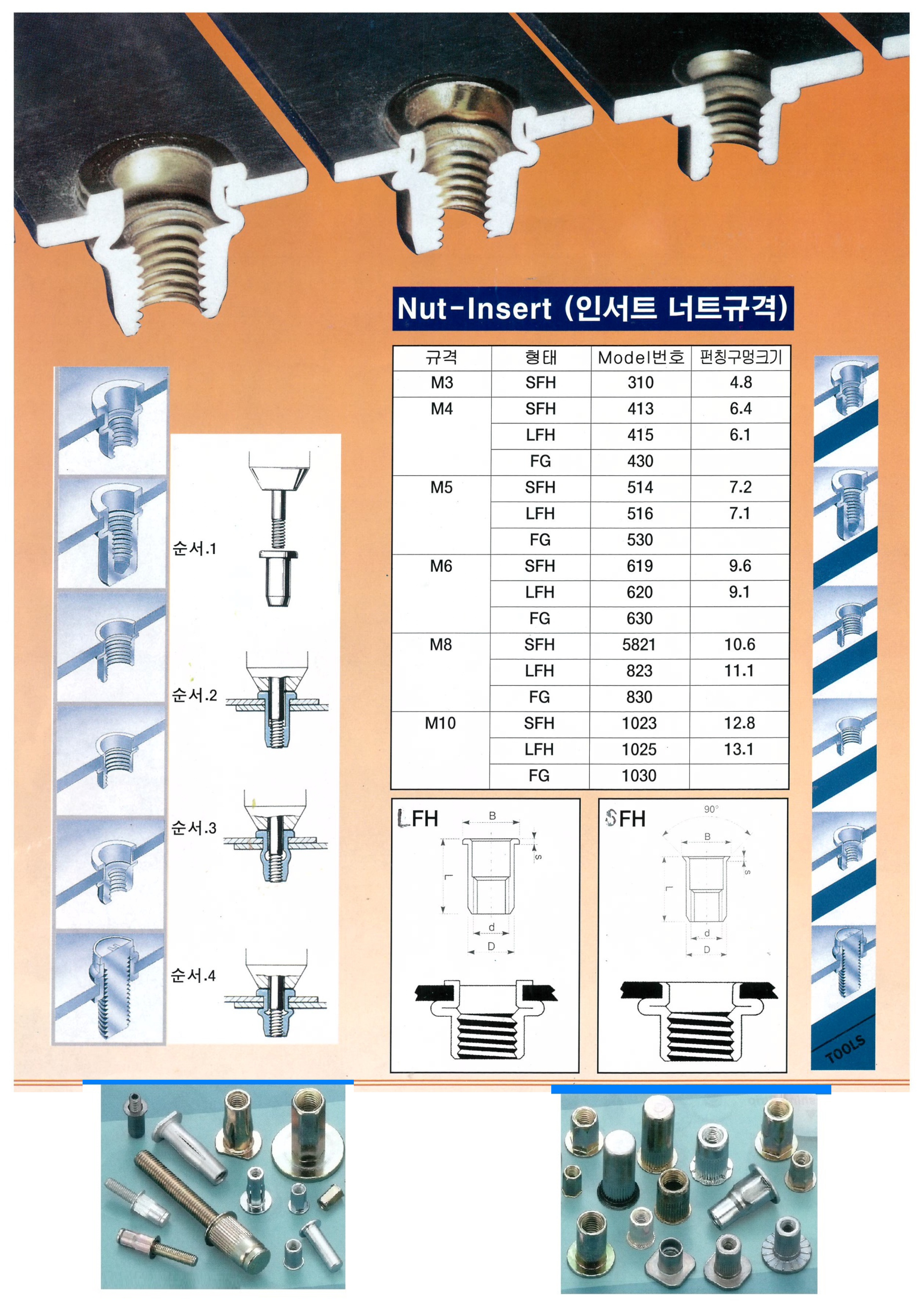

Nut-Insert (인서트 너트 규격)
- 형태
-
- 순서
-
- 규격
-
| 규격 |
형태 |
Model 번호 |
펀칭 구멍 크기 |
| M3 |
SFH |
310 |
4.8 |
| M4 |
SFH |
413 |
6.4 |
| LFH |
415 |
6.1 |
| FG |
430 |
|
| M5 |
SFH |
514 |
7.2 |
| LFH |
516 |
7.1 |
| FG |
530 |
|
| M6 |
SFH |
619 |
9.6 |
| LFH |
620 |
9.1 |
| FG |
630 |
|
| M8 |
SFH |
821 |
10.6 |
| LFH |
823 |
11.1 |
| FG |
830 |
|
| M10 |
SFH |
1023 |
12.8 |
| LFH |
1025 |
13.1 |
| FG |
1030 |
|

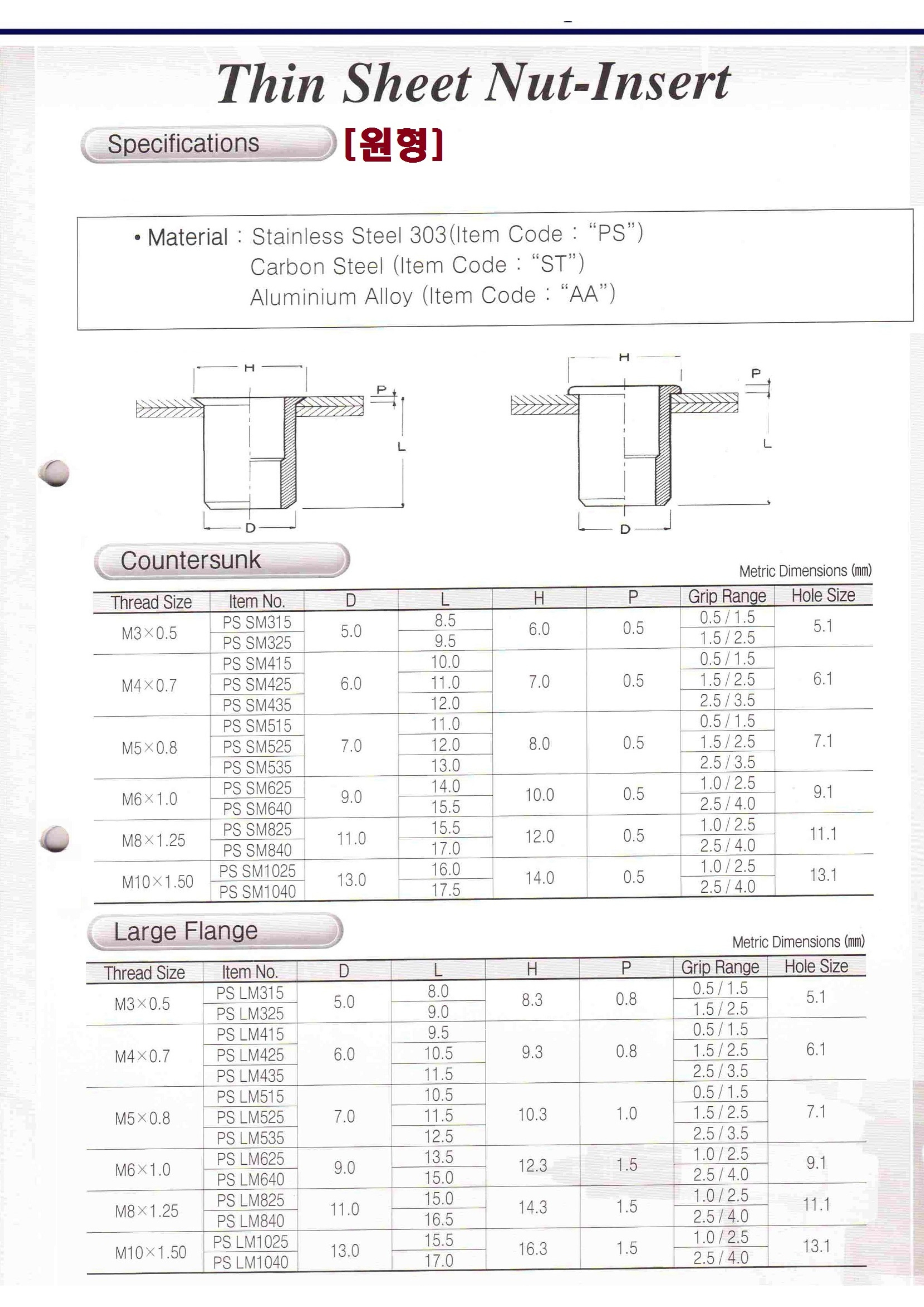

기술자료 1
원형
Circle Type
- Material
-
- Stainless Steel 303 (Item Code : "PS")
- Carbon Steel (Item Code : "ST")
- Aluminium Alloy (Item Code : "AA")
- Countersunk
-
Metric Dimensions (㎜)
| Thread Size |
Item No. |
D |
L |
H |
P |
Grip Range |
Hole Size |
| M3×0.5 |
PS SM315 |
5.0 |
8.5 |
6.0 |
0.5 |
0.5 / 1.5 |
5.1 |
| PS SM325 |
9.5 |
1.5 / 2.5 |
| M4×0.7 |
PS SM415 |
6.0 |
10.0 |
7.0 |
0.5 |
0.5 / 1.5 |
6.1 |
| PS SM425 |
11.0 |
1.5 / 2.5 |
| PS SM435 |
12.0 |
2.5 / 3.5 |
| M5×0.8 |
PS SM515 |
7.0 |
11.0 |
8.0 |
0.5 |
0.5 / 1.5 |
7.1 |
| PS SM525 |
12.0 |
1.5 / 2.5 |
| PS SM535 |
13.0 |
2.5 / 3.5 |
| M6×1.0 |
PS SM625 |
9.0 |
14.0 |
10.0 |
0.5 |
1.0 / 2.5 |
9.1 |
| PS SM640 |
15.5 |
2.5 / 4.0 |
| M8×1.25 |
PS SM825 |
11.0 |
15.5 |
12.0 |
0.5 |
1.0 / 2.5 |
11.1 |
| PS SM840 |
17.0 |
2.5 / 4.0 |
| M10×1.5 |
PS SM1025 |
13.0 |
16.0 |
14.0 |
0.5 |
1.0 / 2.5 |
13.1 |
| PS SM1040 |
17.5 |
2.5 / 4.0 |
- Large Flange
-
Metric Dimensions (㎜)
| Thread Size |
Item No. |
D |
L |
H |
P |
Grip Range |
Hole Size |
| M3×0.5 |
PS LM315 |
5.0 |
8.0 |
8.3 |
0.8 |
0.5 / 1.5 |
5.1 |
| PS LM325 |
9.0 |
1.5 / 2.5 |
| M4×0.7 |
PS LM415 |
6.0 |
10.5 |
9.3 |
0.8 |
0.5 / 1.5 |
6.1 |
| PS LM425 |
11.5 |
1.5 / 2.5 |
| PS LM435 |
12.5 |
2.5 / 3.5 |
| M5×0.8 |
PS LM515 |
7.0 |
10.5 |
10.3 |
1.0 |
0.5 / 1.5 |
7.1 |
| PS LM525 |
11.5 |
1.5 / 2.5 |
| PS LM535 |
12.5 |
2.5 / 3.5 |
| M6×1.0 |
PS LM625 |
9.0 |
13.5 |
12.3 |
1.5 |
1.0 / 2.5 |
9.1 |
| PS LM640 |
15.0 |
2.5 / 4.0 |
| M8×1.25 |
PS LM825 |
11.0 |
15.0 |
14.3 |
1.5 |
1.0 / 2.5 |
11.1 |
| PS LM840 |
16.5 |
2.5 / 4.0 |
| M10×1.5 |
PS LM1025 |
13.0 |
15.5 |
16.3 |
1.5 |
1.0 / 2.5 |
13.1 |
| PS LM1040 |
17.0 |
2.5 / 4.0 |

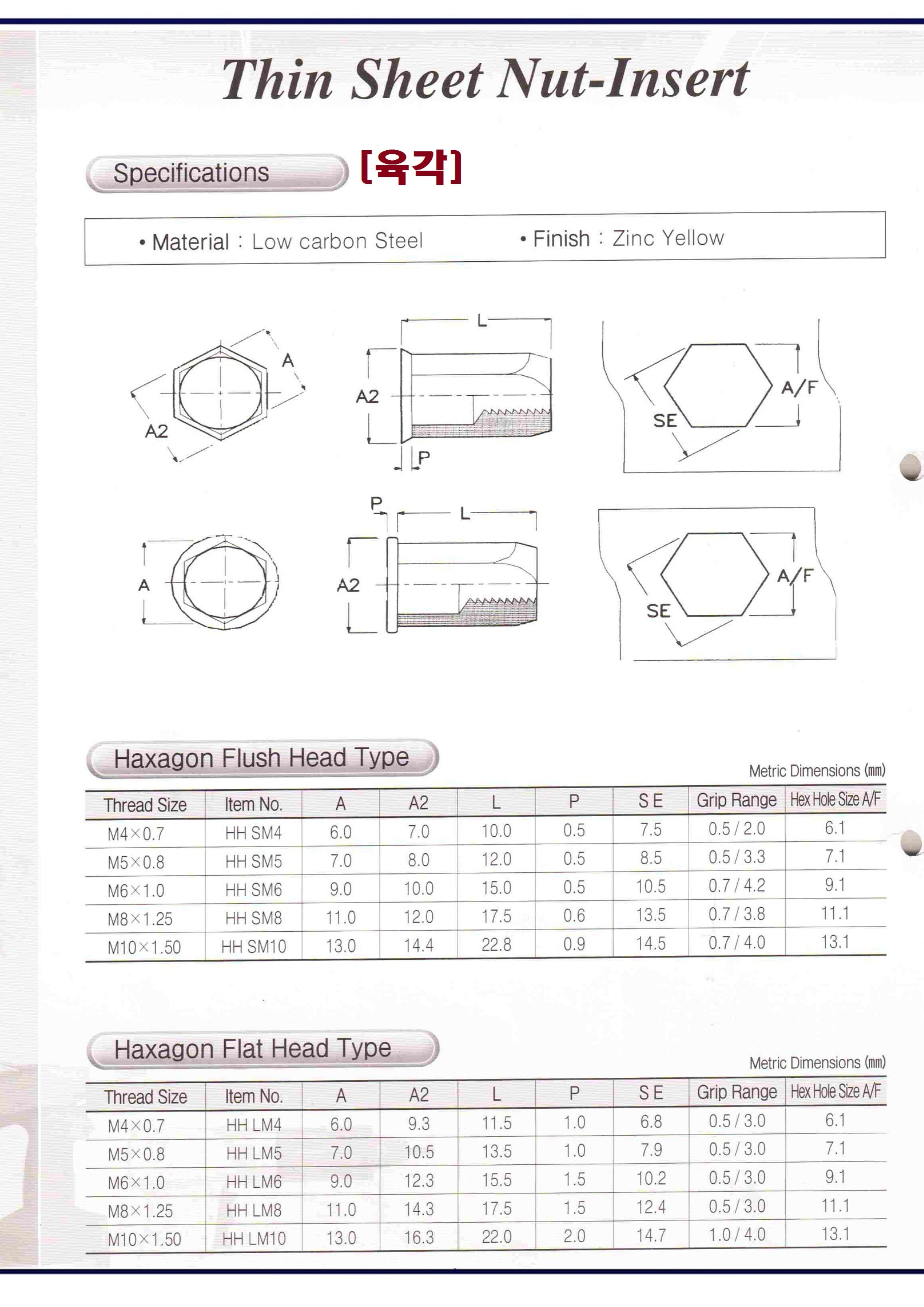

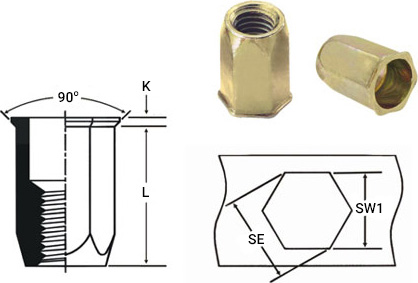

육각형
Hexagon Type
- Feature
-
- Material : Low Carbon Steel
- Finish : Zinc Yellow

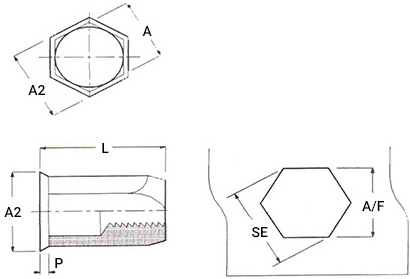

- Haxagon Flush Head Type
-
Metric Dimensions (㎜)
| Thread Size |
Item No. |
A |
A2 |
L |
P |
SE |
Grip Range |
Hole Size |
| M4×0.7 |
HH SM4 |
6.0 |
7.0 |
10.0 |
0.5 |
7.5 |
0.5 / 2.0 |
6.1 |
| M5×0.8 |
HH SM5 |
7.0 |
8.0 |
12.0 |
0.5 |
8.5 |
0.5 / 3.3 |
7.1 |
| M6×1.0 |
HH SM6 |
9.0 |
10.0 |
15.0 |
0.5 |
10.5 |
0.7 / 4.2 |
9.1 |
| M8×1.25 |
HH SM8 |
11.0 |
12.0 |
17.5 |
0.6 |
13.5 |
0.7 / 3.8 |
11.1 |
| M10×1.5 |
HH SM10 |
13.0 |
14.4 |
22.8 |
0.9 |
14.5 |
0.7 / 4.0 |
13.1 |

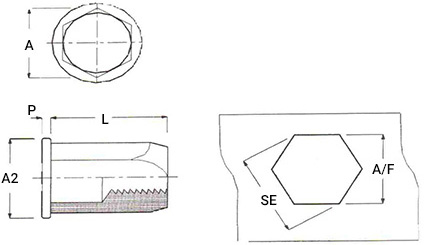

- Haxagon Flat Head Type
-
Metric Dimensions (㎜)
| Thread Size |
Item No. |
A |
A2 |
L |
P |
SE |
Grip Range |
Hole Size |
| M4×0.7 |
HH LM4 |
6.0 |
9.3 |
11.5 |
1.0 |
6.8 |
0.5 / 3.0 |
6.1 |
| M5×0.8 |
HH LM5 |
7.0 |
10.5 |
13.5 |
1.0 |
7.9 |
0.5 / 3.0 |
7.1 |
| M6×1.0 |
HH LM6 |
9.0 |
12.3 |
15.5 |
1.5 |
10.2 |
0.5 / 3.0 |
9.1 |
| M8×1.25 |
HH LM8 |
11.0 |
14.3 |
17.5 |
1.5 |
12.4 |
0.5 / 3.0 |
11.1 |
| M10×1.5 |
HH LM10 |
13.0 |
16.3 |
22.0 |
2.0 |
14.7 |
1.0 / 4.0 |
13.1 |

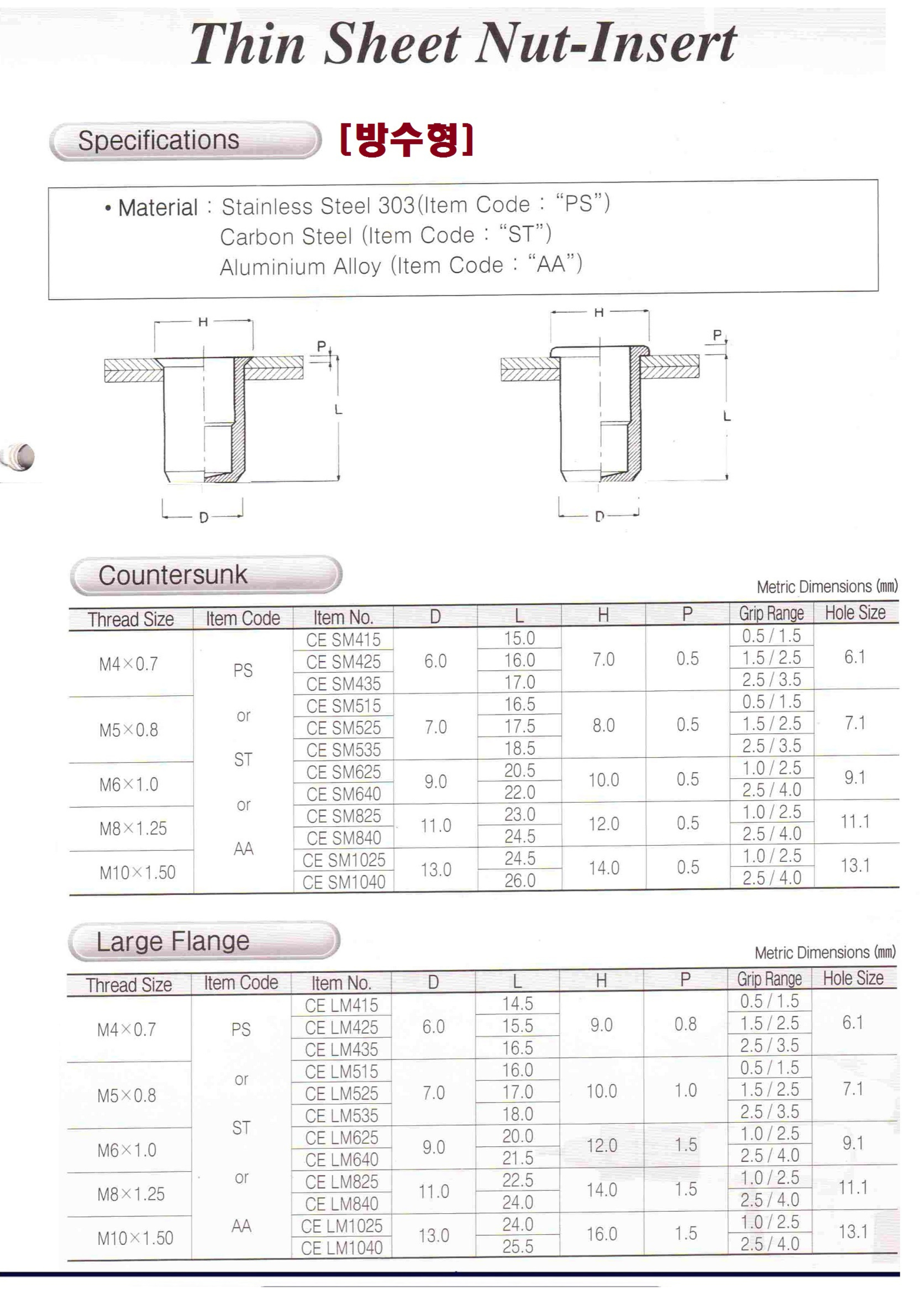

방수형
Waterproof Type
- Material
-
- Stainless Steel 303 (Item Code : "PS")
- Carbon Steel (Item Code : "ST")
- Aluminium Alloy (Item Code : "AA")
- Countersunk
-
Metric Dimensions (㎜)
| Thread Size |
Item Code |
Item No. |
D |
L |
H |
P |
Grip Range |
Hole Size |
| M4×0.7 |
PS
or
ST
or
AA |
CE SM415 |
6.0 |
15.0 |
7.0 |
0.5 |
0.5 / 1.5 |
6.1 |
| CE SM425 |
16.0 |
1.5 / 2.5 |
| CE SM435 |
17.0 |
2.5 / 3.5 |
| M5×0.8 |
CE SM515 |
7.0 |
16.5 |
8.0 |
0.5 |
0.5 / 1.5 |
7.1 |
| CE SM525 |
17.5 |
1.5 / 2.5 |
| CE SM535 |
18.5 |
2.5 / 3.5 |
| M6×1.0 |
CE SM625 |
9.0 |
20.5 |
10.0 |
0.5 |
1.0 / 2.5 |
9.1 |
| CE SM640 |
22.0 |
2.5 / 4.0 |
| M8×1.25 |
CE SM825 |
11.0 |
23.0 |
12.0 |
0.5 |
1.0 / 2.5 |
11.1 |
| CE SM840 |
24.5 |
2.5 / 4.0 |
| M10×1.5 |
CE SM1025 |
13.0 |
24.5 |
14.0 |
0.5 |
1.0 / 2.5 |
13.1 |
| CE SM1040 |
26.0 |
2.5 / 4.0 |
- Large Flange
-
Metric Dimensions (㎜)
| Thread Size |
Item Code |
Item No. |
D |
L |
H |
P |
Grip Range |
Hole Size |
| M4×0.7 |
PS
or
ST
or
AA |
CE LM415 |
6.0 |
14.5 |
9.0 |
0.8 |
0.5 / 1.5 |
6.1 |
| CE LM425 |
15.5 |
1.5 / 2.5 |
| CE LM435 |
16.5 |
2.5 / 3.5 |
| M5×0.8 |
CE LM515 |
7.0 |
16.0 |
10.0 |
1.0 |
0.5 / 1.5 |
7.1 |
| CE LM525 |
17.0 |
1.5 / 2.5 |
| CE LM535 |
18.0 |
2.5 / 3.5 |
| M6×1.0 |
CE LM625 |
9.0 |
20.0 |
12.0 |
1.5 |
1.0 / 2.5 |
9.1 |
| CE LM640 |
21.5 |
2.5 / 4.0 |
| M8×1.25 |
CE LM825 |
11.0 |
22.5 |
14.0 |
1.5 |
1.0 / 2.5 |
11.1 |
| CE LM840 |
24.0 |
2.5 / 4.0 |
| M10×1.5 |
CE LM1025 |
13.0 |
24.0 |
16.0 |
1.5 |
1.0 / 2.5 |
13.1 |
| CE LM1040 |
25.5 |
2.5 / 4.0 |

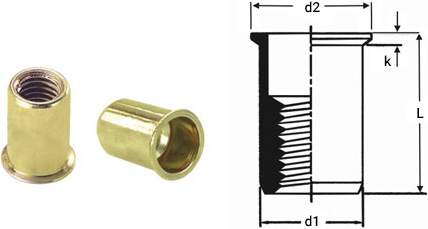

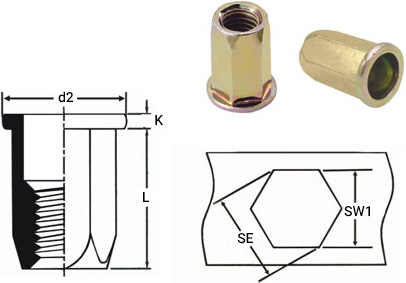

기술자료 2 : P 시리즈

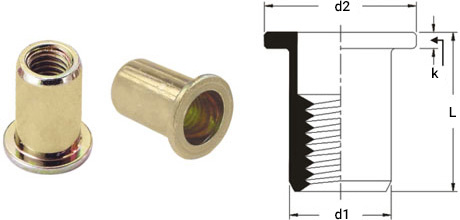

일반형 / Closed End Type

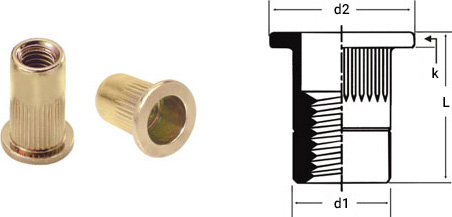

Cylindrical Head (Flat)
Yellow Zinc Plated
all size in mm
| Thread Size |
Item Code |
L |
G |
Hole Size |
d1 |
d2 |
k |
| M3 |
ANMF03095POP |
9.5 |
0.5~1.5 |
5.1 |
5.0 |
8.3 |
0.8 |
| ANMF03105POP |
10.5 |
1.5~2.5 |
| M4 |
ANMF04110POP |
11.0 |
0.5~1.5 |
6.1 |
6.0 |
9.3 |
0.8 |
| ANMF04120POP |
12.0 |
1.5~2.5 |
| ANMF04130POP |
13.0 |
2.5~3.5 |
| M5 |
ANMF05120POP |
12.0 |
0.5~1.5 |
7.1 |
7.0 |
10.3 |
1.0 |
| ANMF05130POP |
13.0 |
1.5~2.5 |
| ANMF05140POP |
14.0 |
2.5~3.5 |
| M6 |
ANMF06155POP |
15.5 |
1.0~2.5 |
9.1 |
9.0 |
12.3 |
1.5 |
| ANMF06170POP |
17.0 |
2.5~4.0 |
| M8 |
ANMF08170POP |
17.0 |
1.0~2.5 |
11.1 |
11.0 |
14.3 |
1.5 |
| ANMF08185POP |
18.5 |
2.5~4.0 |
| M10 |
ANMF10175POP |
17.5 |
1.0~2.5 |
13.1 |
13.0 |
16.3 |
1.5 |
| ANMF10190POP |
19.0 |
2.5~4.0 |
- Stainless Steel & Aluminum are available.
- Serration style is available.

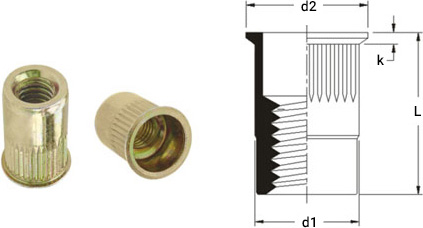

Countersunk Head (CSK)
Yellow Zinc Plated
all size in mm
| Thread Size |
Item Code |
L |
G |
Hole Size |
d1 |
d2 |
k |
| M3 |
ANMC03090POP |
9.5 |
0.5~1.5 |
5.1 |
5.0 |
6.0 |
0.5 |
| ANMC03100POP |
10.5 |
1.5~2.5 |
| M4 |
ANMC04105POP |
10.5 |
0.5~1.5 |
6.1 |
6.0 |
7.0 |
0.5 |
| ANMC04115POP |
11.5 |
1.5~2.5 |
| ANMC04125POP |
12.5 |
2.5~3.5 |
| M5 |
ANMC05110POP |
11.0 |
0.5~1.5 |
7.1 |
7.0 |
8.0 |
0.5 |
| ANMC05120POP |
12.0 |
1.5~2.5 |
| ANMC05130POP |
13.0 |
2.5~3.5 |
| M6 |
ANMC06140POP |
14.0 |
1.0~2.5 |
9.1 |
9.0 |
10.0 |
0.5 |
| ANMC06155POP |
15.5 |
2.5~4.0 |
| M8 |
ANMC08155POP |
15.5 |
1.0~2.5 |
11.1 |
11.0 |
12.0 |
0.5 |
| ANMC08170POP |
17.0 |
2.5~4.0 |
| M10 |
ANMC10165POP |
16.5 |
1.0~2.5 |
13.1 |
13.0 |
14.0 |
0.5 |
| ANMC10180POP |
18.0 |
2.5~4.0 |
- Stainless Steel & Aluminum are available.
- Serration style is available.
Cylindrical Head (Flat) with Serration
Yellow Zinc Plated
all size in mm
| Thread Size |
Item Code |
L |
G |
Hole Size |
d1 |
d2 |
k |
| M4 |
ANMF04110POR |
11.0 |
0.5~1.5 |
6.1 |
6.0 |
9.3 |
0.8 |
| ANMF04120POR |
12.0 |
1.5~2.5 |
| ANMF04130POR |
13.0 |
2.5~3.5 |
| M5 |
ANMF05120POR |
12.0 |
0.5~1.5 |
7.1 |
7.0 |
10.3 |
1.0 |
| ANMF05130POR |
13.0 |
1.5~2.5 |
| ANMF05140POR |
14.0 |
2.5~3.5 |
| M6 |
ANMF06155POR |
15.5 |
1.0~2.5 |
9.1 |
9.0 |
12.3 |
1.5 |
| ANMF06170POR |
17.0 |
2.5~4.0 |
| M8 |
ANMF08170POR |
17.0 |
1.0~2.5 |
11.1 |
11.0 |
14.3 |
1.5 |
| ANMF08185POR |
18.5 |
2.5~4.0 |
- Stainless Steel & Aluminum are available.
- Serration style is available.
Countersunk Had (CSK) with Serration
Yellow Zinc Plated
all size in mm
| Thread Size |
Item Code |
L |
G |
Hole Size |
d1 |
d2 |
k |
| M3 |
ANMC030100POR |
10.0 |
1.5~2.5 |
5.1 |
5.0 |
6.0 |
0.5 |
| M4 |
ANMC04105POR |
10.5 |
0.5~1.5 |
6.1 |
6.0 |
7.0 |
0.5 |
| ANMC04115POR |
11.5 |
1.5~2.5 |
| ANMC04125POR |
12.5 |
2.5~3.5 |
| M5 |
ANMC05110POR |
11.0 |
0.5~1.5 |
7.1 |
7.0 |
8.0 |
0.5 |
| ANMC05120POR |
12.0 |
1.5~2.5 |
| ANMC05130POR |
13.0 |
2.5~3.5 |
| M6 |
ANMC06140POR |
14.0 |
1.0~2.5 |
9.1 |
9.0 |
10.0 |
0.5 |
| ANMC06155POR |
15.5 |
2.5~4.0 |
| M8 |
ANMC08155POR |
15.5 |
1.0~2.5 |
11.1 |
11.0 |
12.0 |
0.5 |
| ANMC08170POR |
17.0 |
2.5~4.0 |
| M10 |
ANMC10160POR |
16.0 |
1.0~2.5 |
13.1 |
13.0 |
14.0 |
0.5 |
- Stainless Steel & Aluminum are available.
- Serration style is available.
기술자료 3 : A 시리즈
완전육각형 / Closed End Type
Cylindrical Head (Flat)
Yellow Zinc Plated
all size in mm
| Thread Size |
Code No |
L |
G |
Sw1 |
SE |
d2 |
k |
| M4 SW 6.0 |
ANMF04115HS |
11.5 |
0.5~2.5 |
6.1 |
6.8 |
9.3 |
1.0 |
| M5 SW 7.0 |
ANMF05135HS |
13.5 |
0.5~3.0 |
7.1 |
7.9 |
10.3 |
1.0 |
| M6 SW 9.0 |
ANMF06155HS |
15.5 |
0.5~3.0 |
9.1 |
10.2 |
12.3 |
1.5 |
| M8 SW 11.0 |
ANMF08175HS |
17.5 |
0.5~3.0 |
11.1 |
12.4 |
14.3 |
1.5 |
| M10 SW 13.0 |
ANMF10220HS |
22.0 |
0.5~4.0 |
13.1 |
14.7 |
16.3 |
2.0 |
- Stainless Steel & Aluminum are available.
- Serration style is available.
Reduced Countersunk Head (Small)
Yellow Zinc Plated
all size in mm
| Thread Size |
Code No |
L |
G |
Sw1 |
SE |
D |
k |
| M4 SW 6.0 |
ANMC04120HSF |
12.0 |
0.5~3.0 |
6.1 |
6.8 |
7.0 |
0.8 |
| M5 SW 7.0 |
ANMC05140HSF |
14.0 |
0.5~2.5 |
7.1 |
7.9 |
8.0 |
0.8 |
| M6 SW 9.0 |
ANMC06160HSF |
16.0 |
0.5~2.5 |
9.1 |
10.2 |
10.0 |
0.8 |
| M8 SW 11.0 |
ANMC08180HSF |
18.0 |
0.5~2.5 |
11.1 |
12.4 |
12.0 |
0.8 |
| M10 SW 13.0 |
ANMC10220HSF |
22.0 |
0.5~4.0 |
13.1 |
14.7 |
14.0 |
0.8 |
- Stainless Steel & Aluminum are available.
- Serration style is available.
