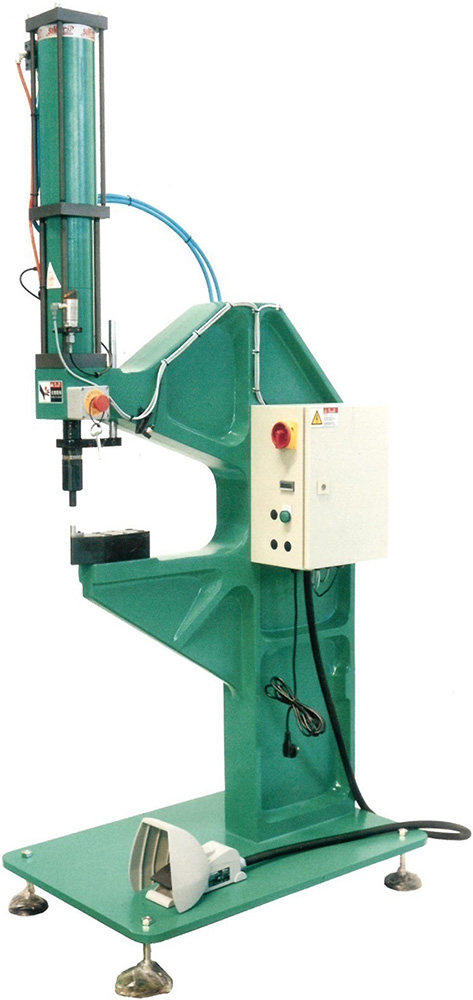

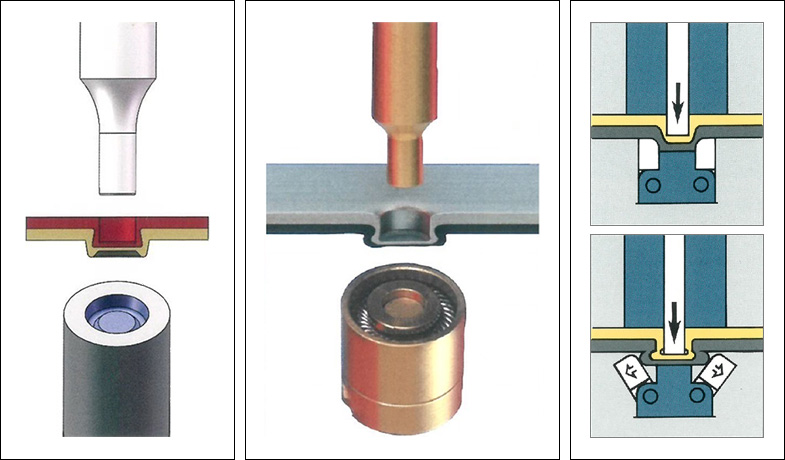

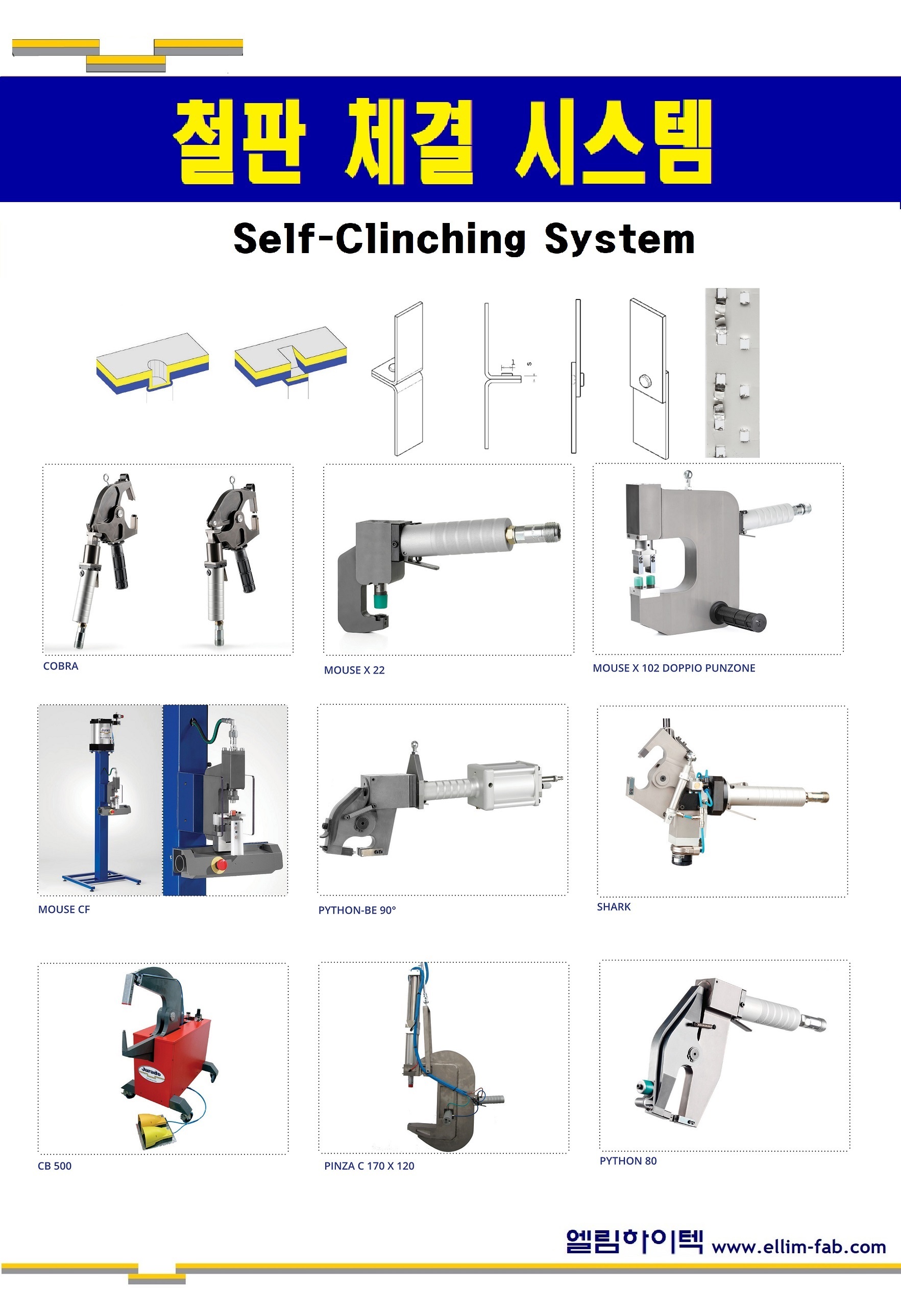

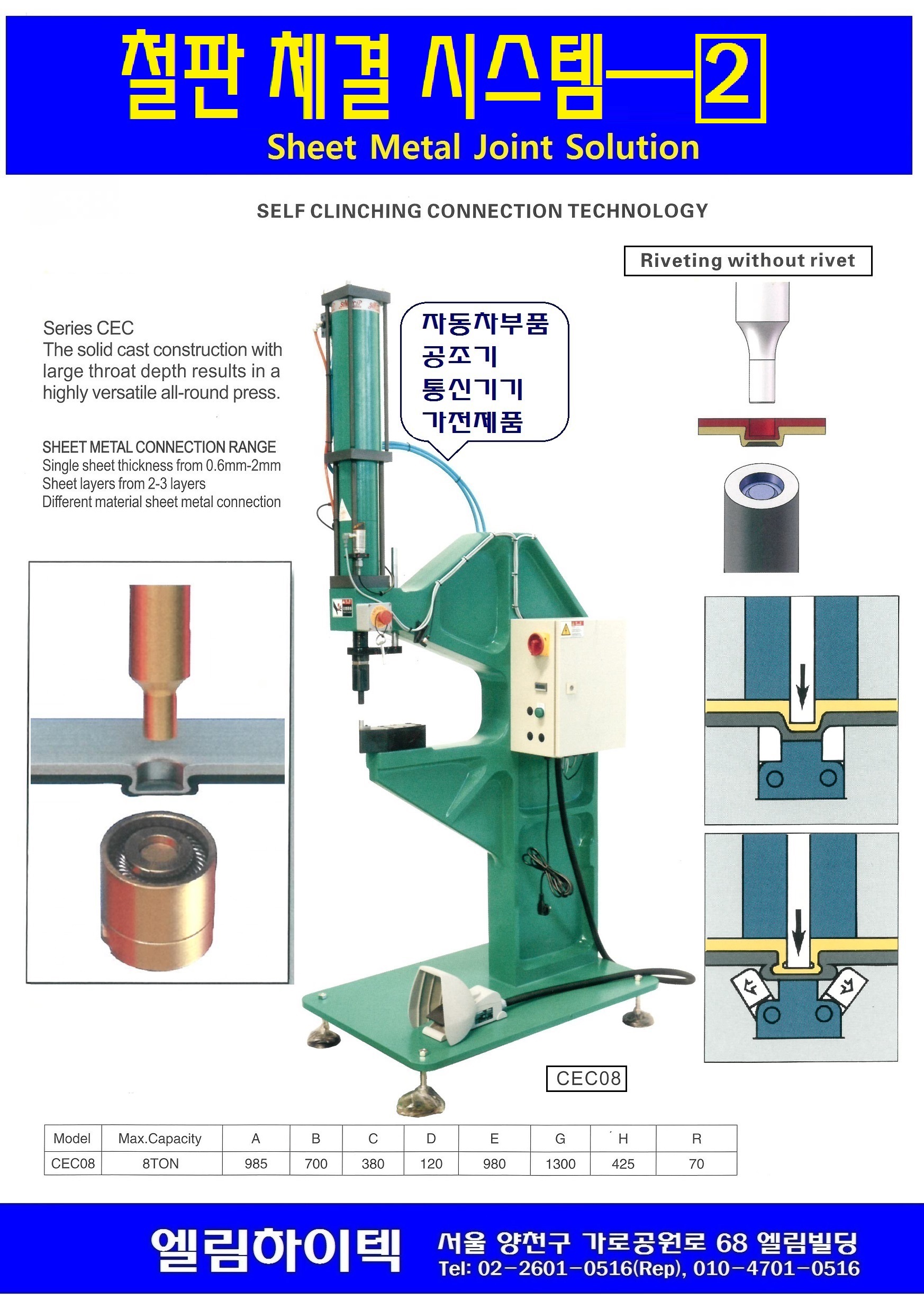

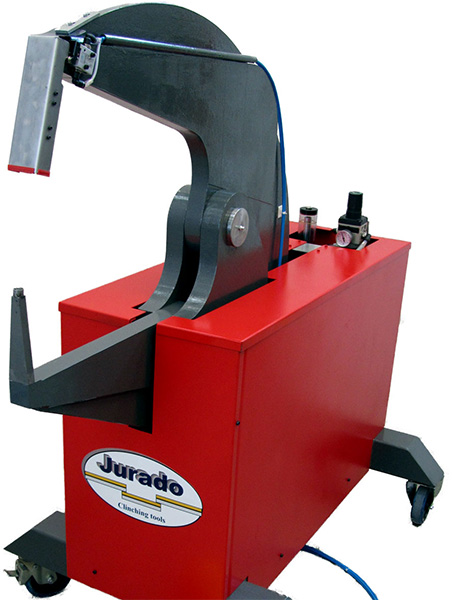

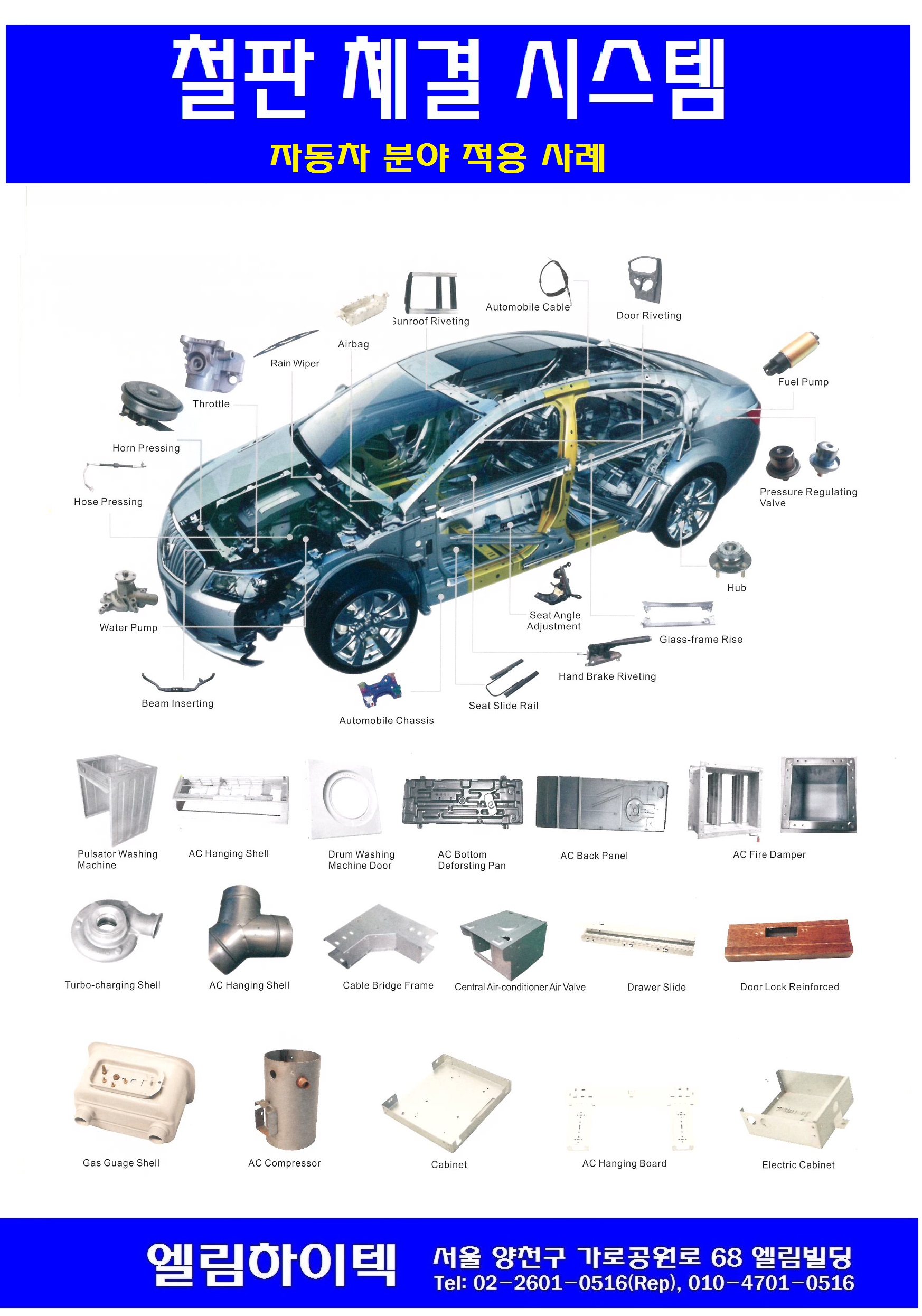

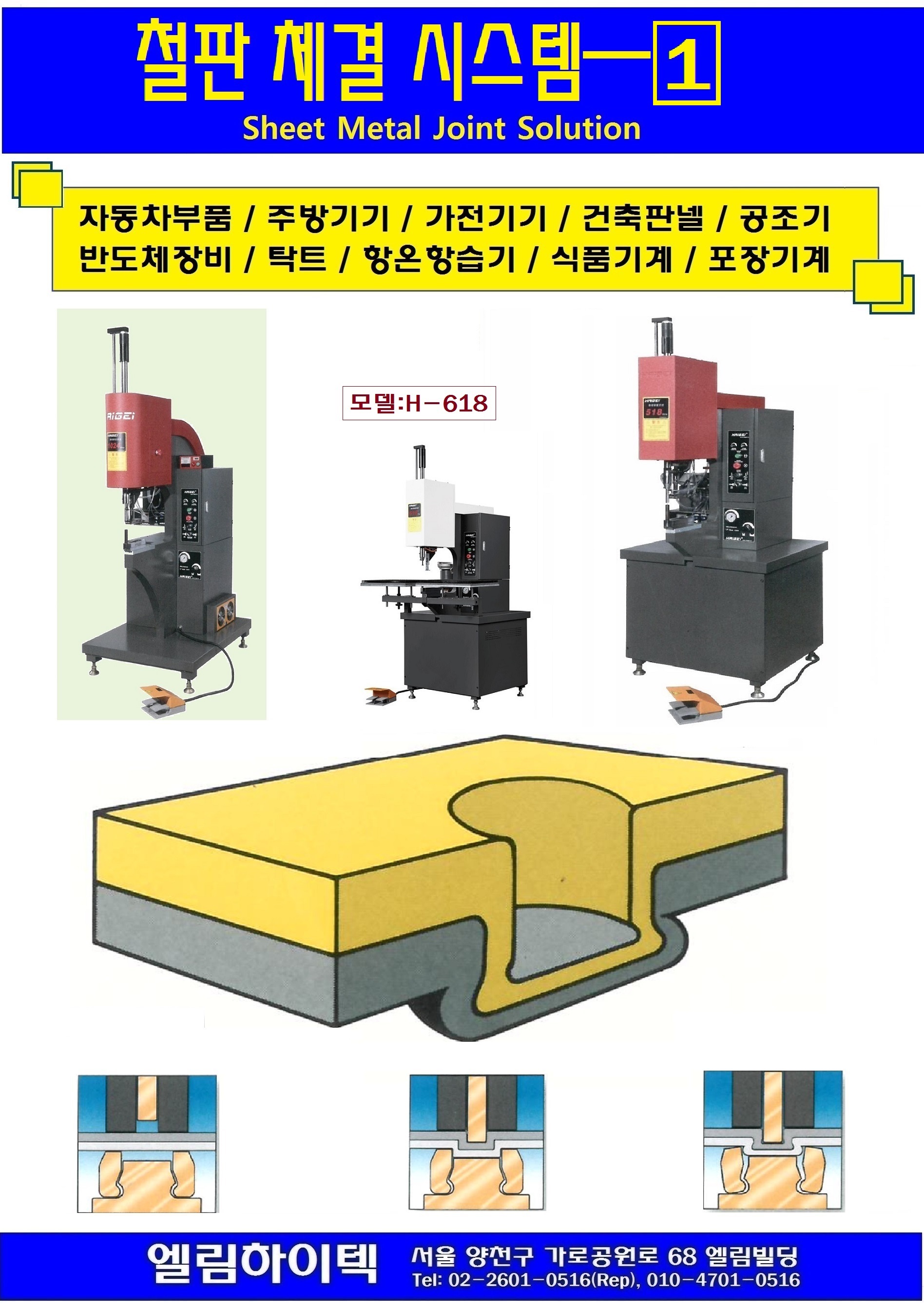

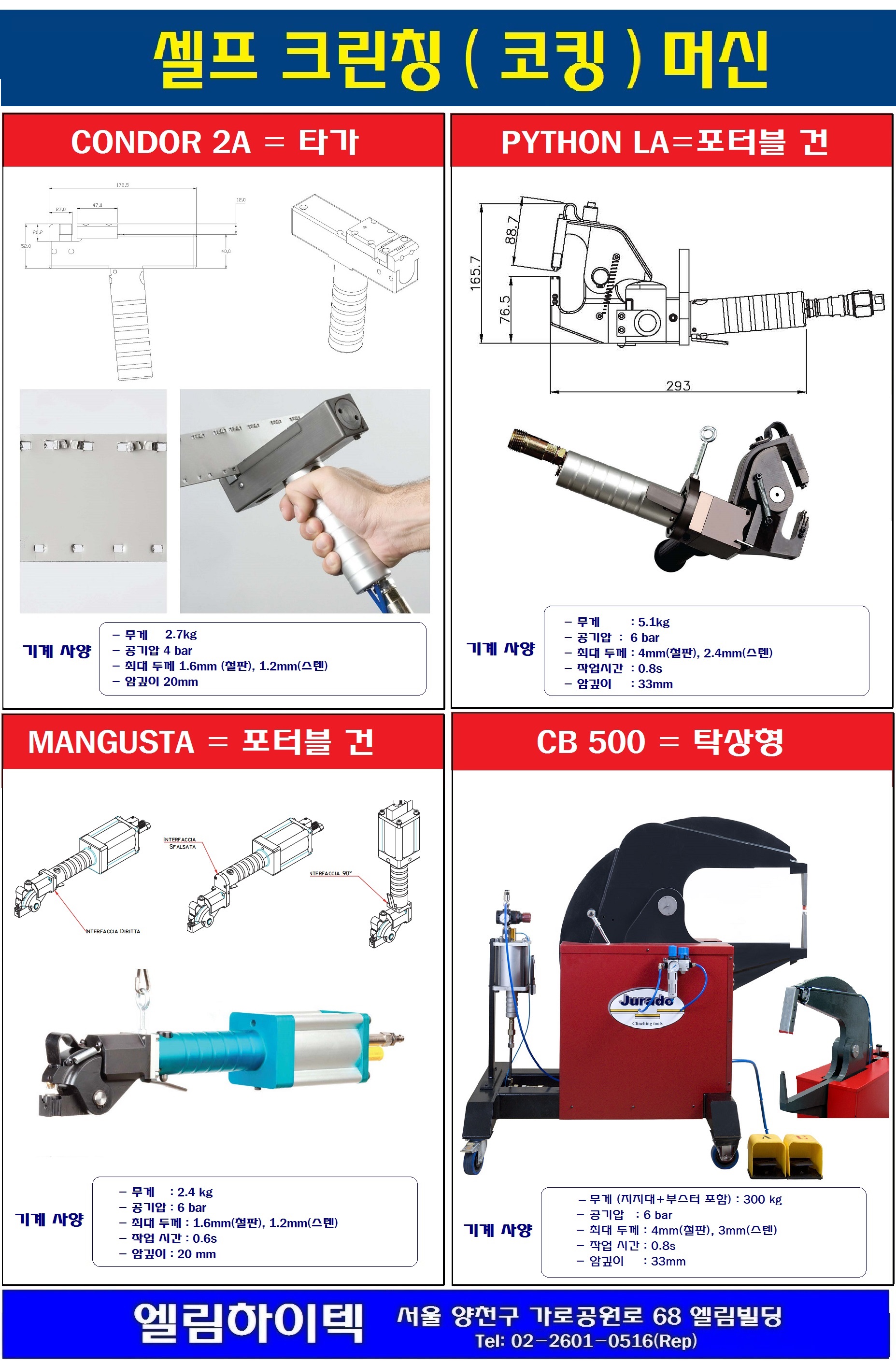

셀프 크린칭 (코킹) 머신

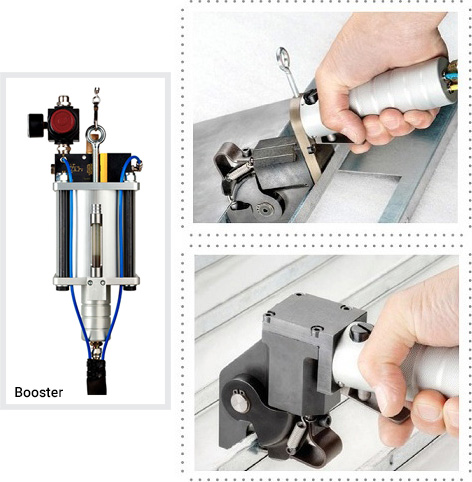

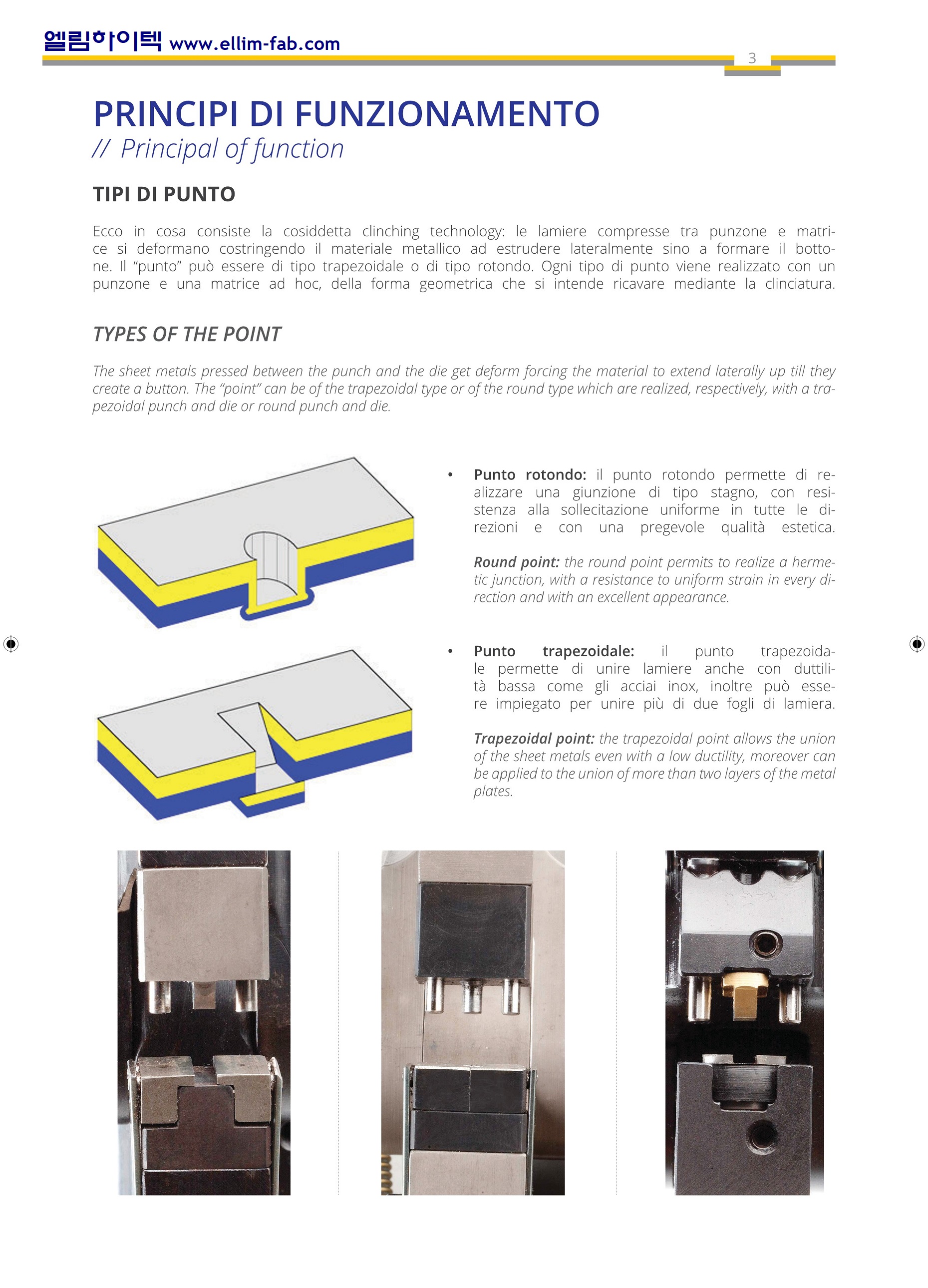

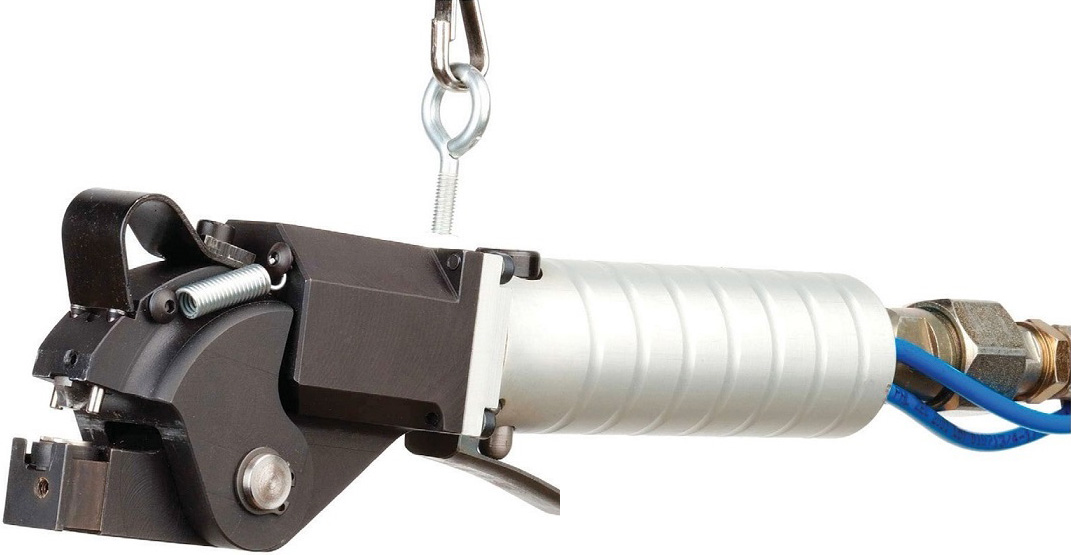

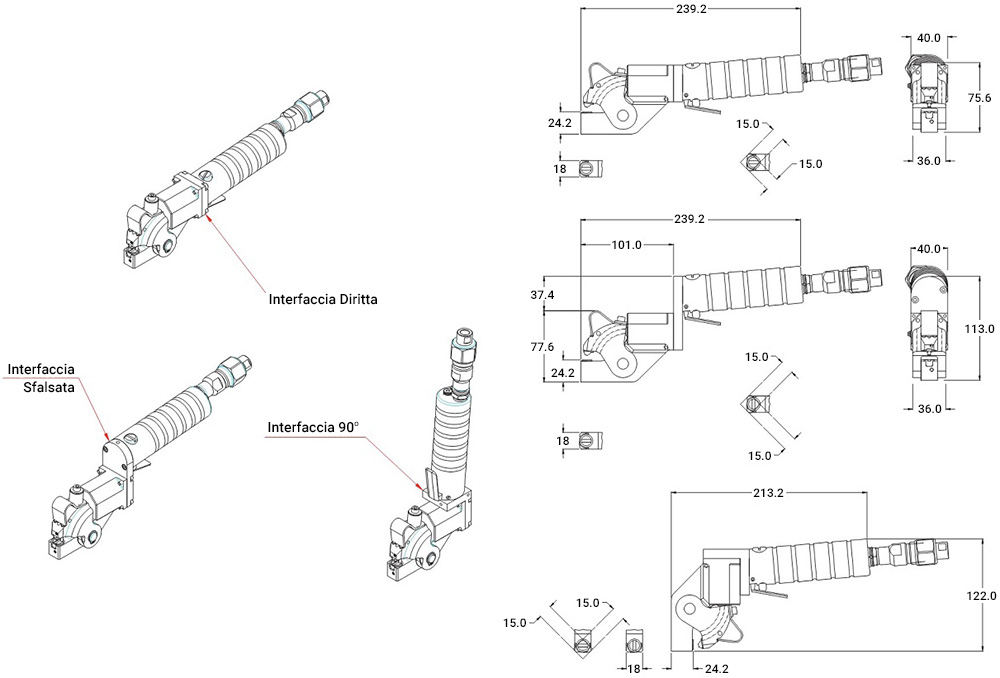

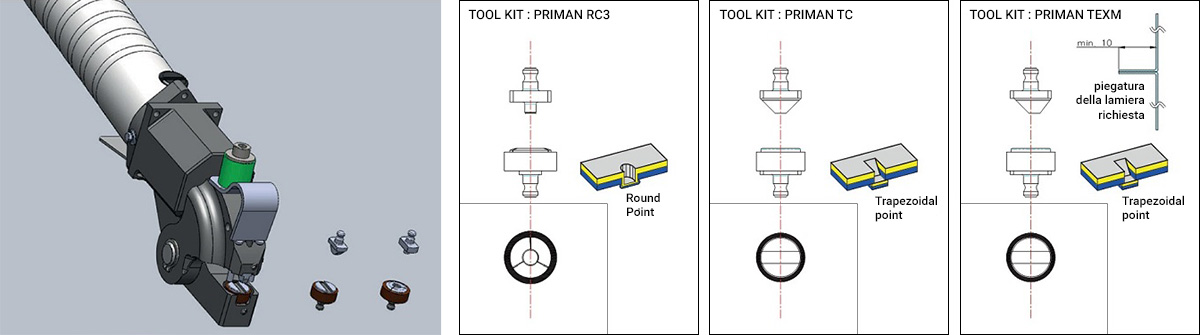

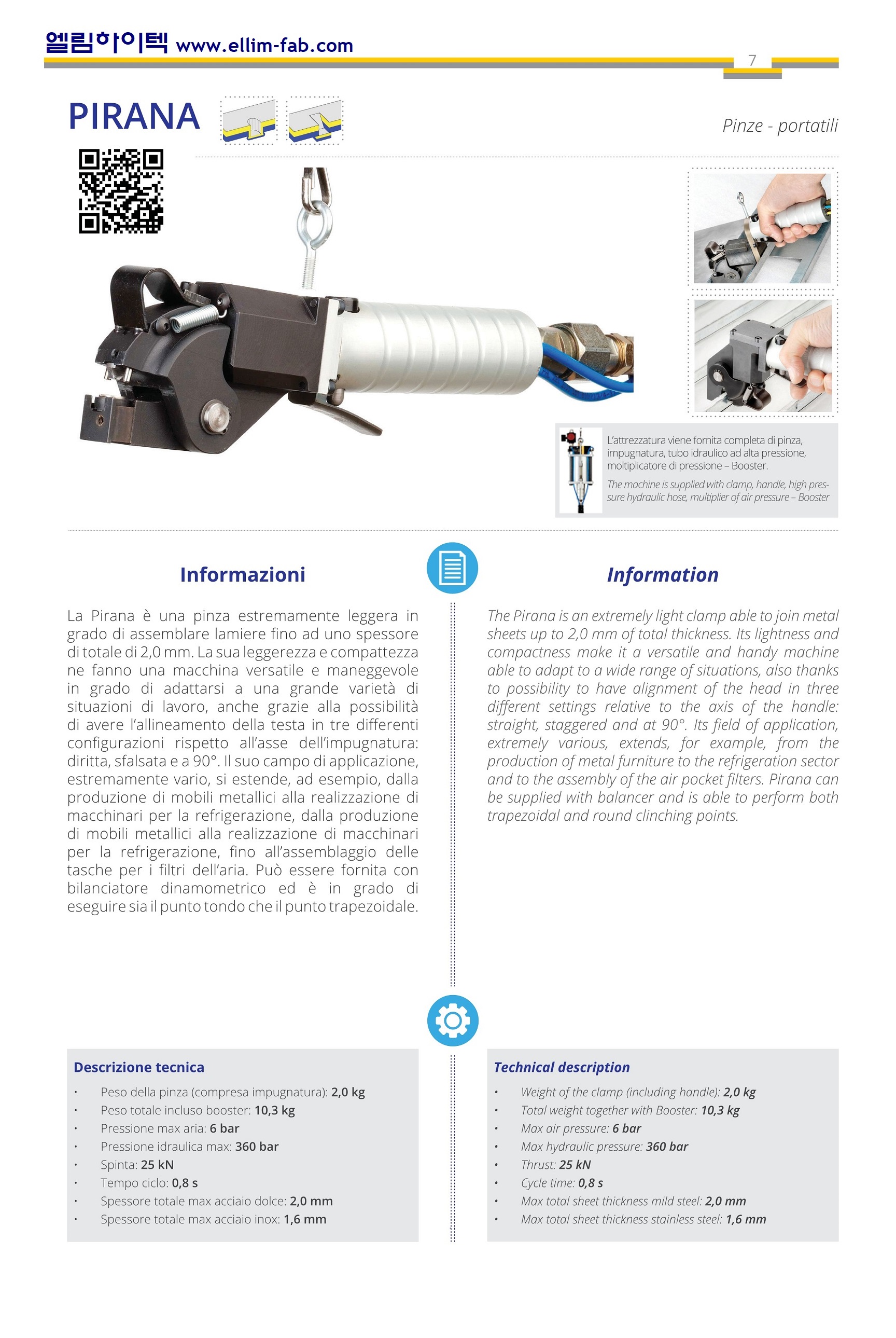

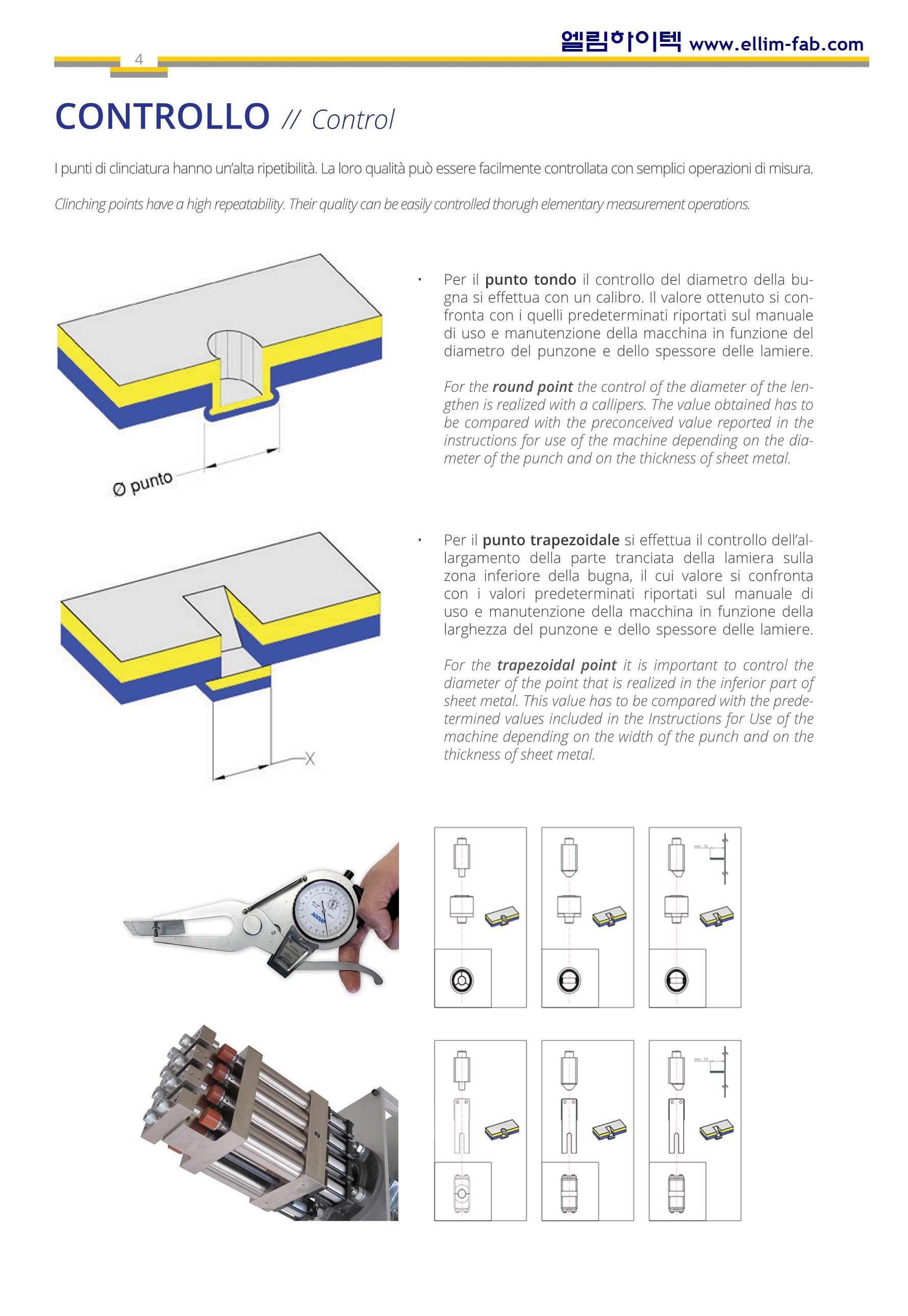

The Pirana is an extremely light clamp able to join metal sheets up to 2.0㎜ of total thickness. Its lightness and compactness make it a versatile and handy machine able to adapt to a wide range ofsituations, also thanks to possibility to have alignment of the head in three different settings relative to the axis of the handle: straight, staggered and at 90°. Its field of application, extremely various, extends, for example, from the production of metal furniture to the refrigeration sector and to the assembly of the air pocket filters. Pirana can be supplied with balancer and is able to perform both trapezoidal and round clinching points.

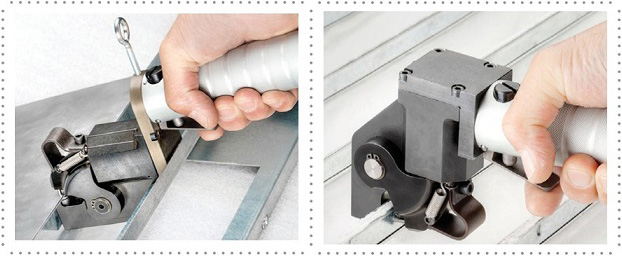

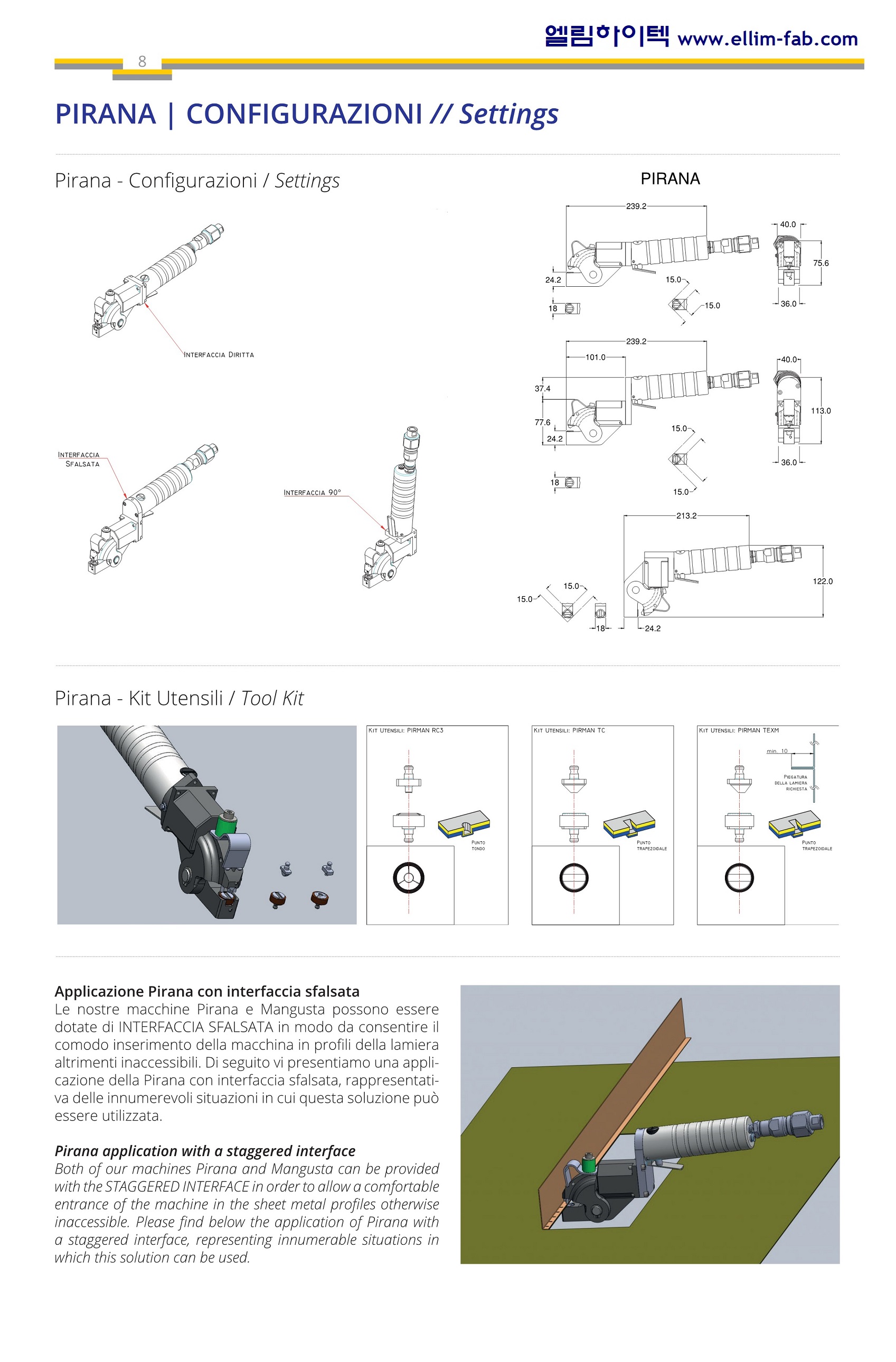

Pirana application with a staggered interface

Both of our machines Pirana and Mangusta can be provided with the STAGGERED INTERFACE in order to allow a comfortable entrance of the machine in the sheet metal profiles otherwise inaccessible. Please find below the application of Pirana with a staggered interface, representing innumerable situations in which this solution can be used.

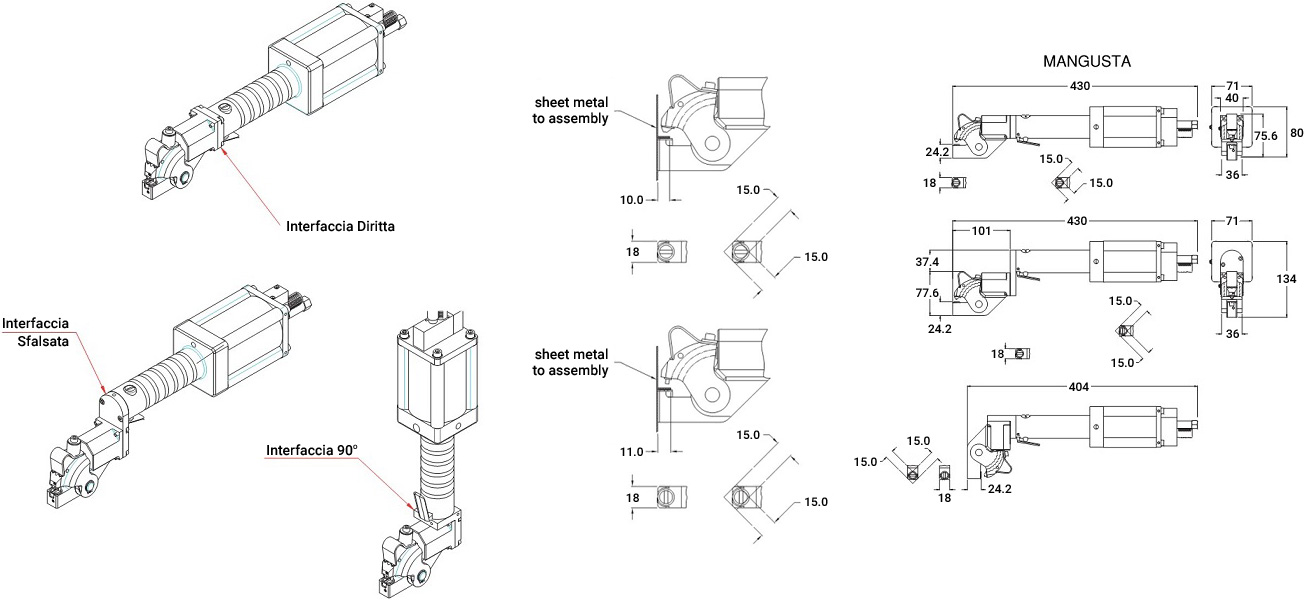

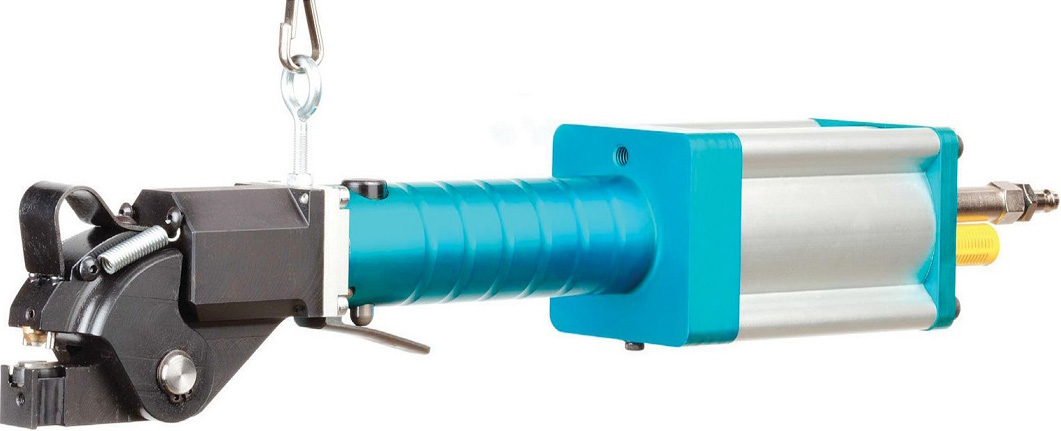

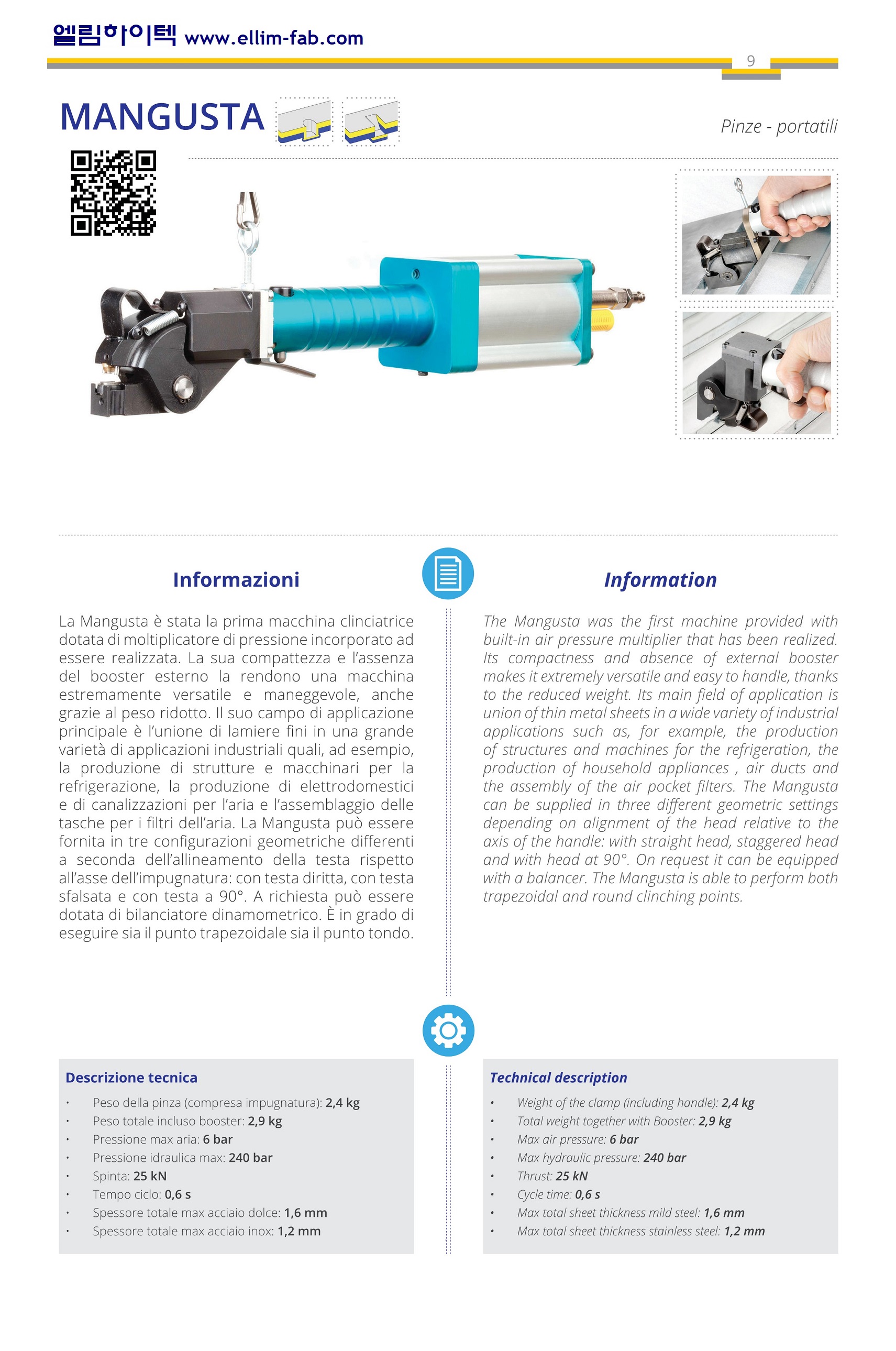

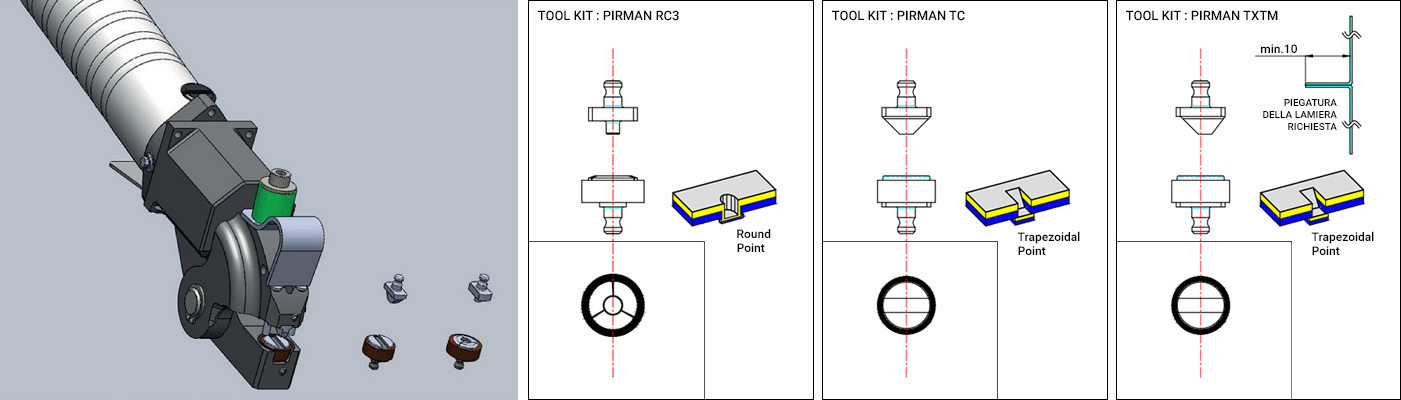

The Mangusta was the first machine provided with built-in air pressure multiplier that has been realized. Its compactness and absence of external booster makes it extremely versatile and easy to handle, thanks to the reduced weight. Its main field ofapplication is union ofthin metal sheets in a wide variety ofindustrial applications such as, for example, the production of structures and machines for the refrigeration, the production of household appliances air ducts and the assembly of the air pocket filters. The Mangusta can be supplied in three different geometric settings depending on alignment of the head relative to the axis of the handle: with straight head, staggered head and with head at 90°. On request it can be equipped with a balancer. The Mangusta is able to perform both trapezoidal and round clinching points.

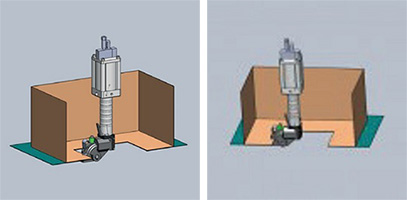

Mangusta application with 90° interface

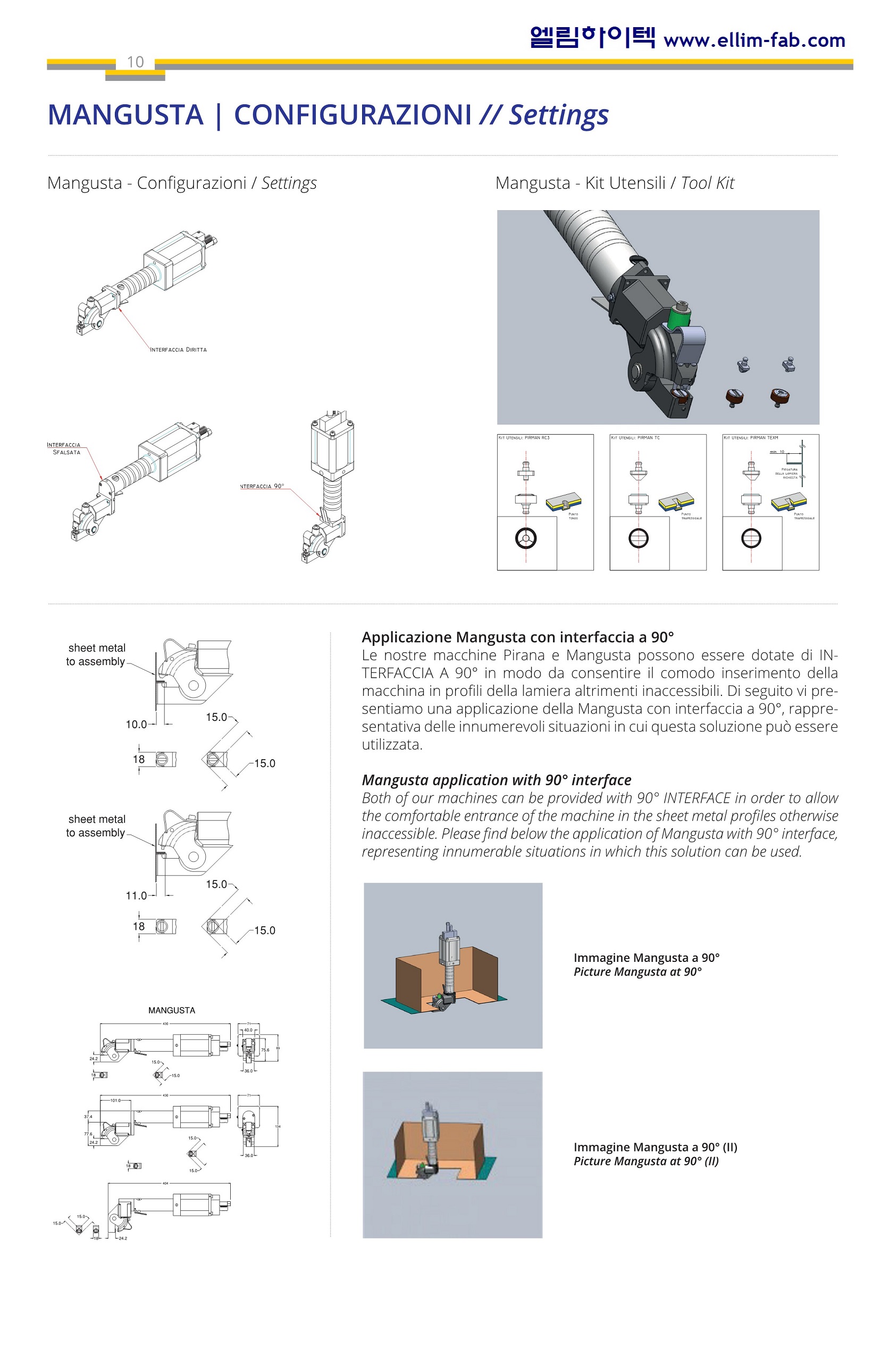

Both of our machines can be provided with 90° INTERFACE in order to allow the comfortable entrance of the machine in the sheet metal profiles otherwise inaccessible. Please find below the application of Mangusta with 90° interface, representing innumerable situations in which this solution can be used.

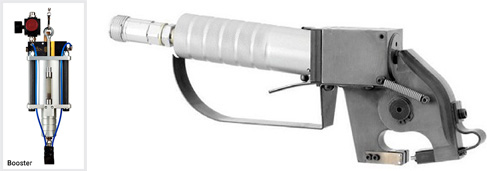

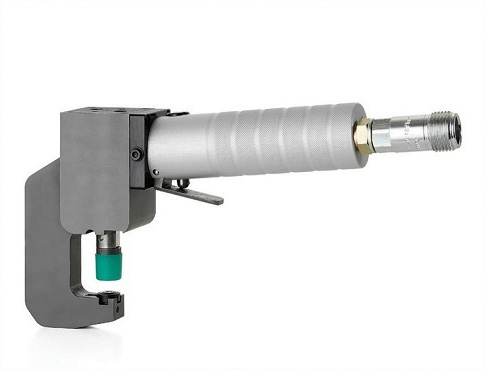

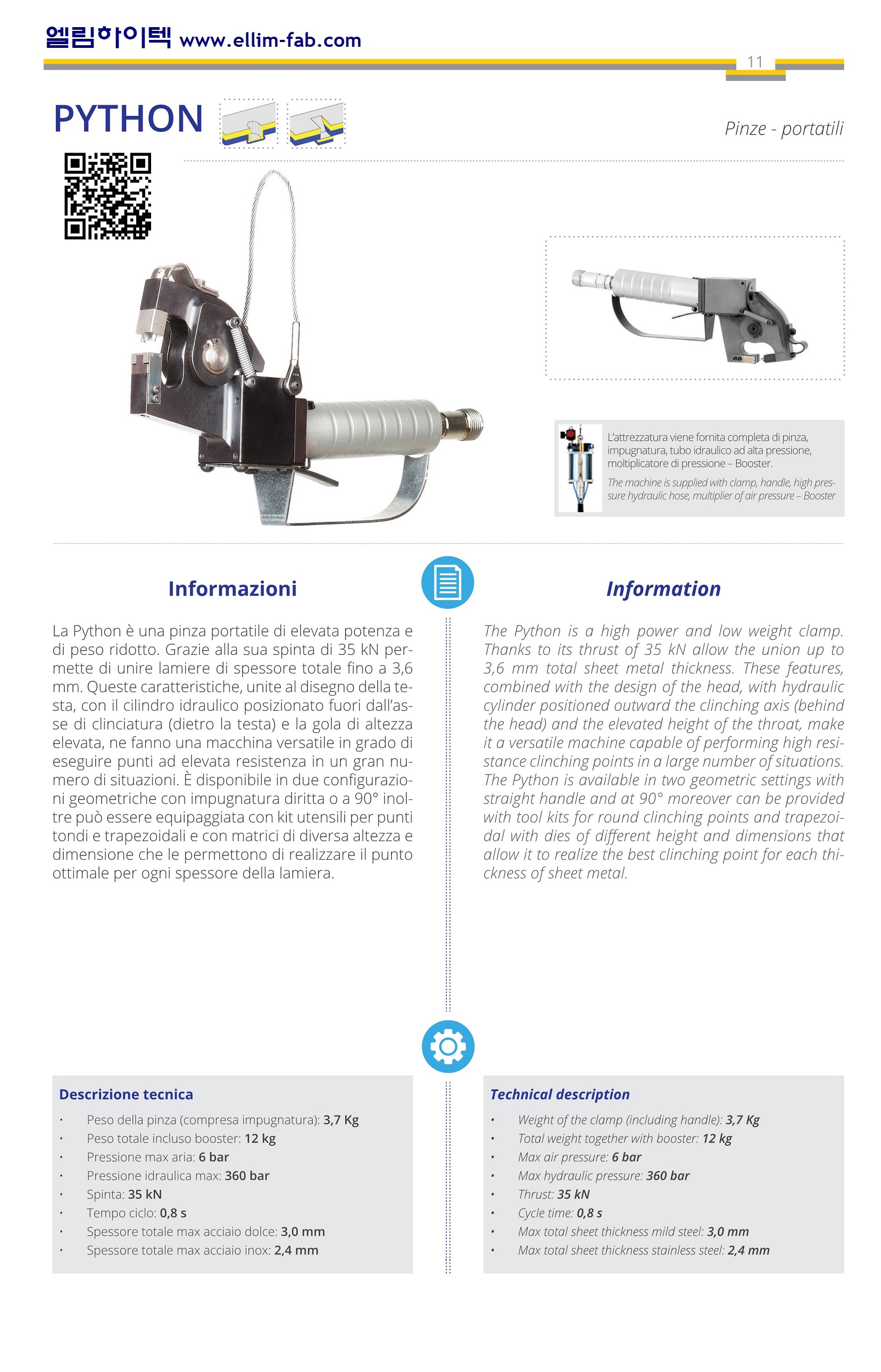

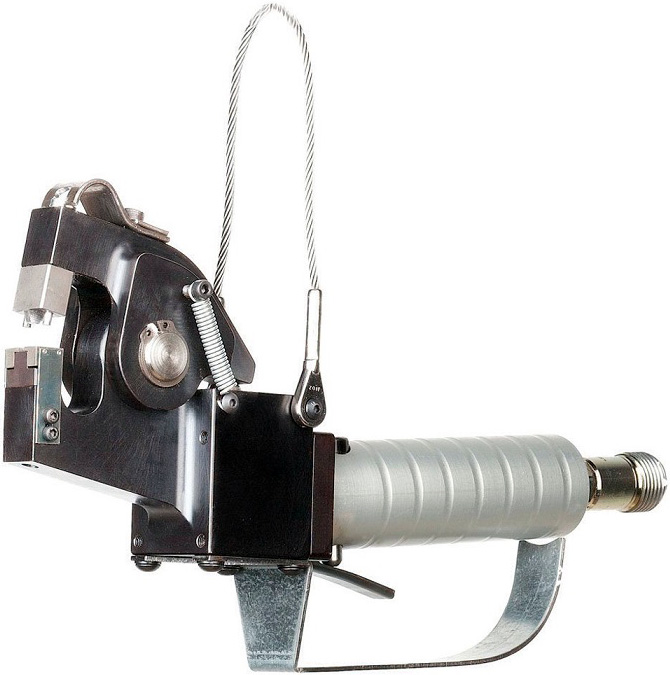

The Python is a high power and low weight clamp. Thanks to its thrust of 35 kN allow the union up to 3,6 mm total sheet metal thickness. These features, combined with the design of the head, with hydraulic cylinder positioned outward the clinching axis (behind the head) and the elevated height of the throat, make it a versatile machine capable ofperforming high resistance clinching points in a large number ofsituations. The Python is available in two geometric settings with straight handle and at 90° moreover can be provided with tool kits for round clinching points and trapezoidal with dies of different height and dimensions that allow it to realize the best clinching point for each thickness of sheet metal.

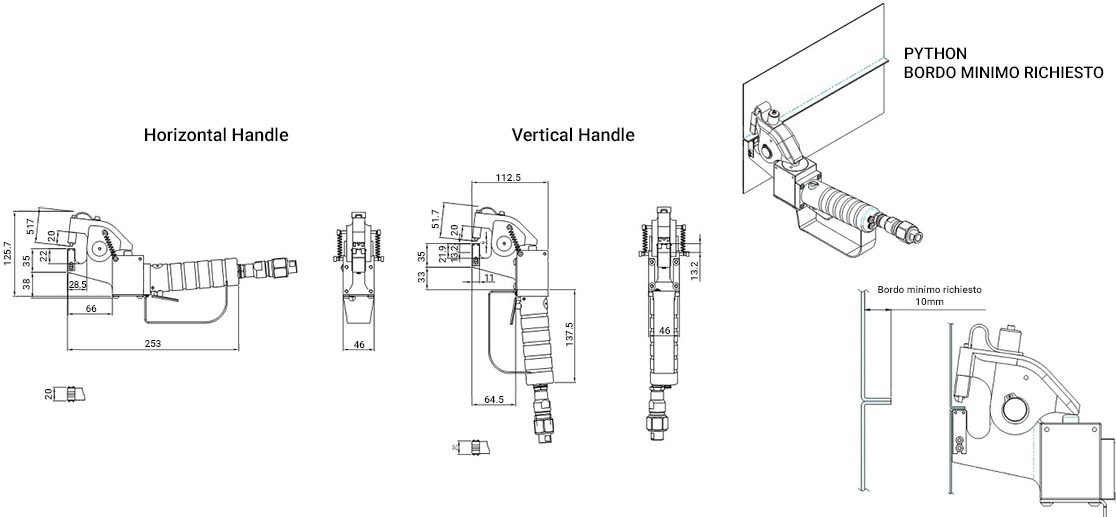

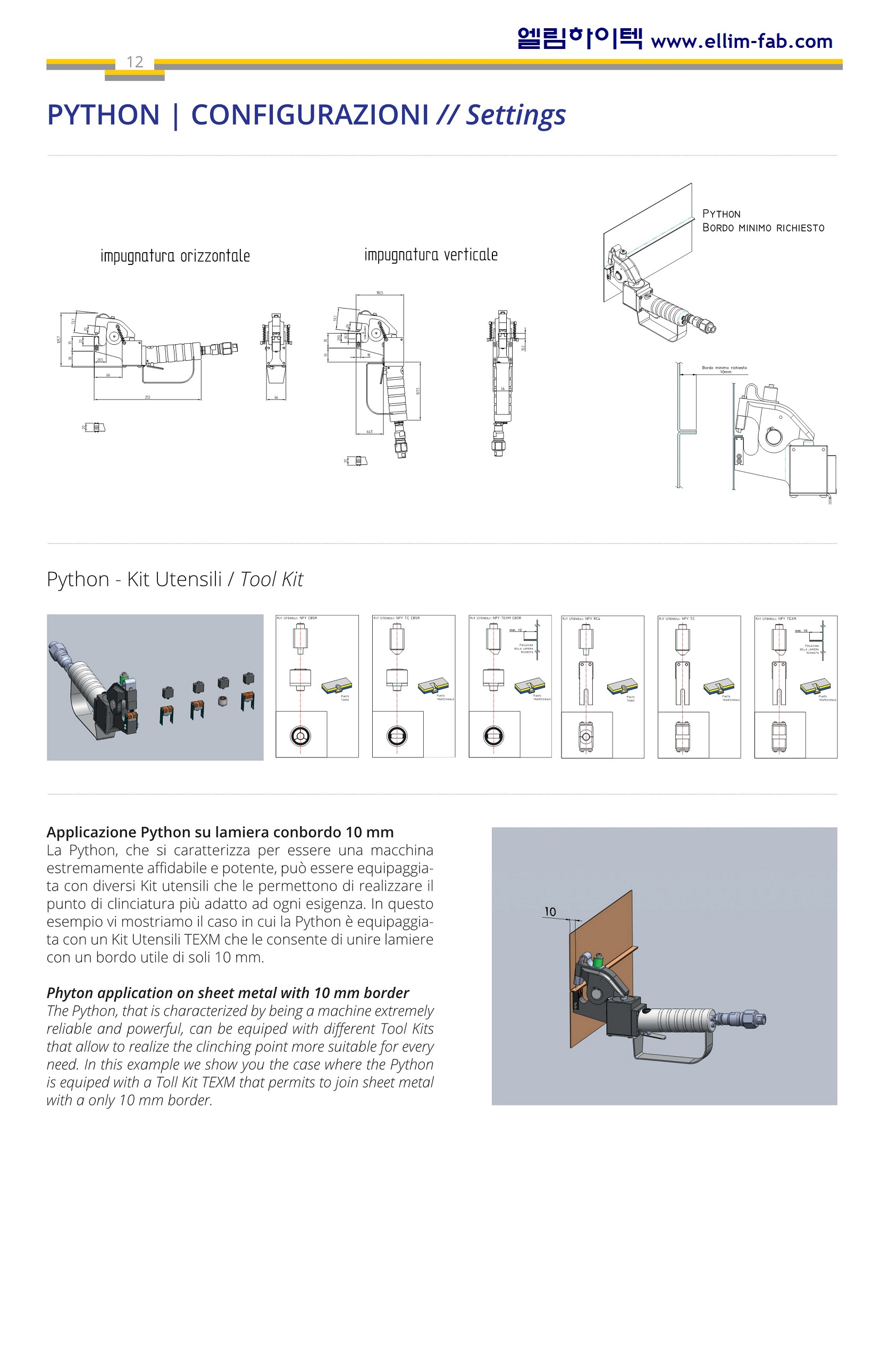

Phyton application on sheet metal with 10 mm border

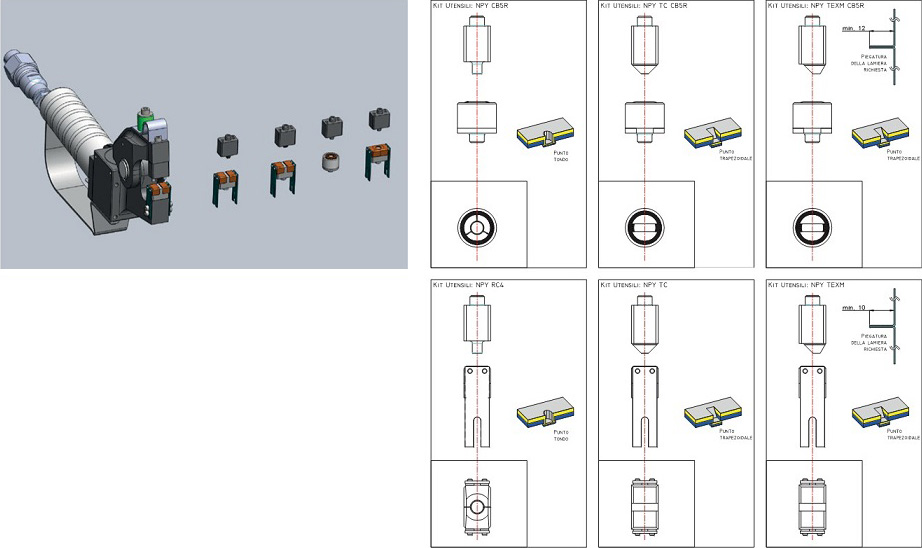

The Python, that is characterized by being a machine extremely reliable and powerful, can be equiped with different Tool Kits that allow to realize the clinching point more suitable for every need. In this example we show you the case where the Python is equiped with a Toll Kit TEXM that permits to join sheet metal with a only 10 mm border.

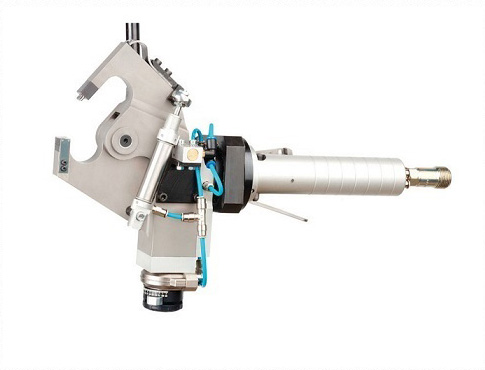

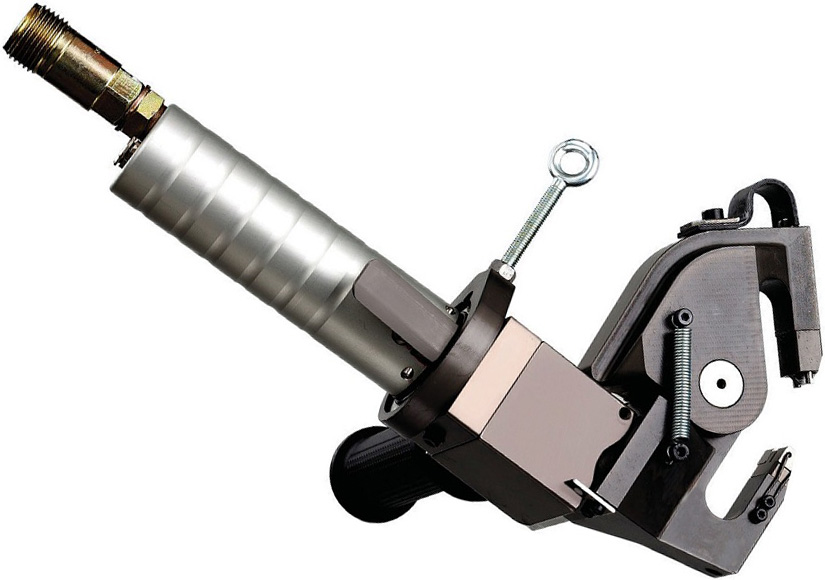

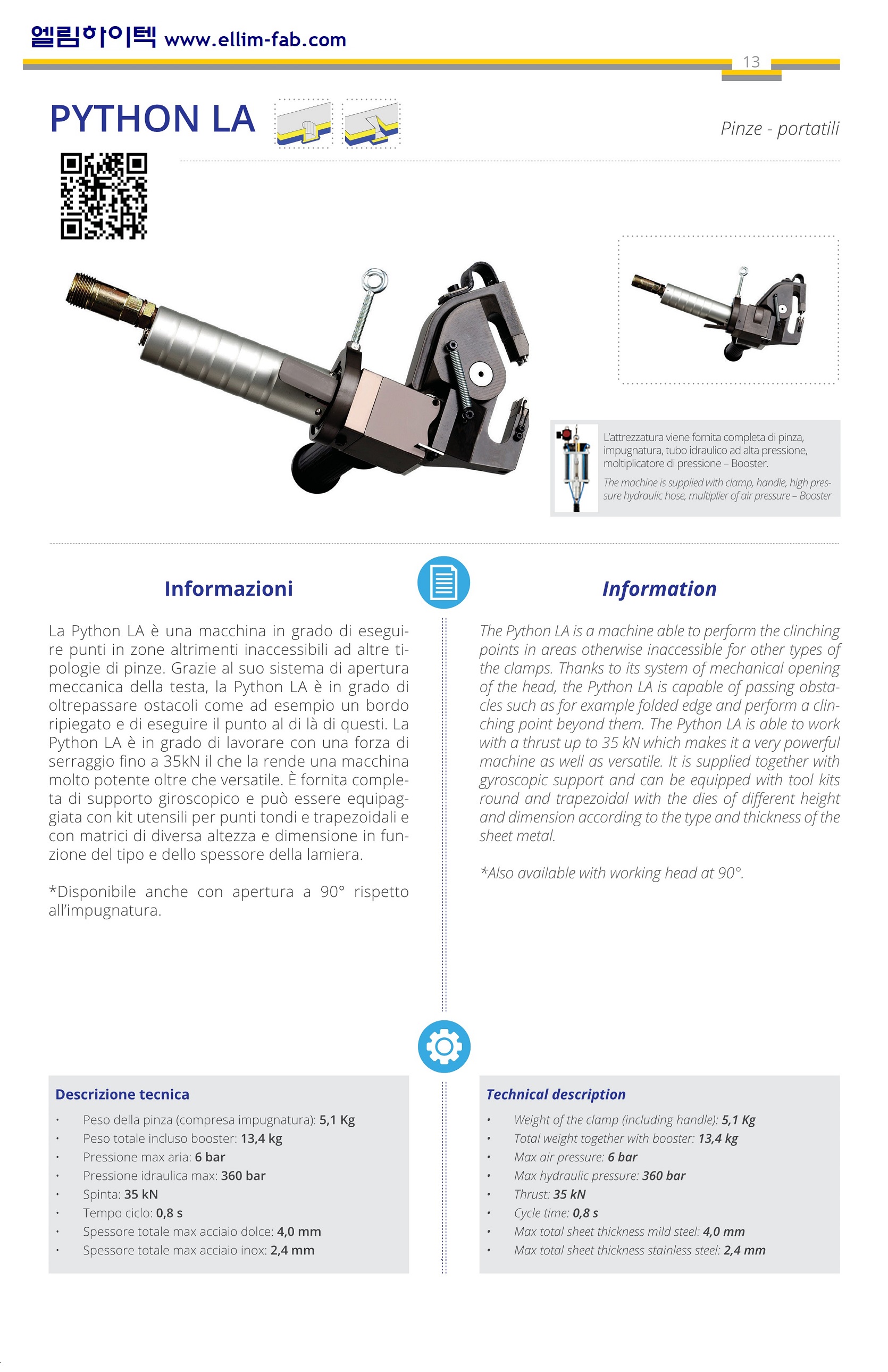

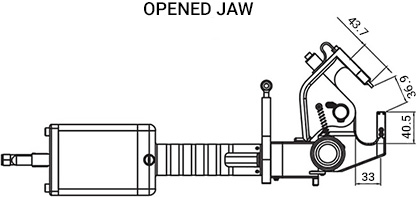

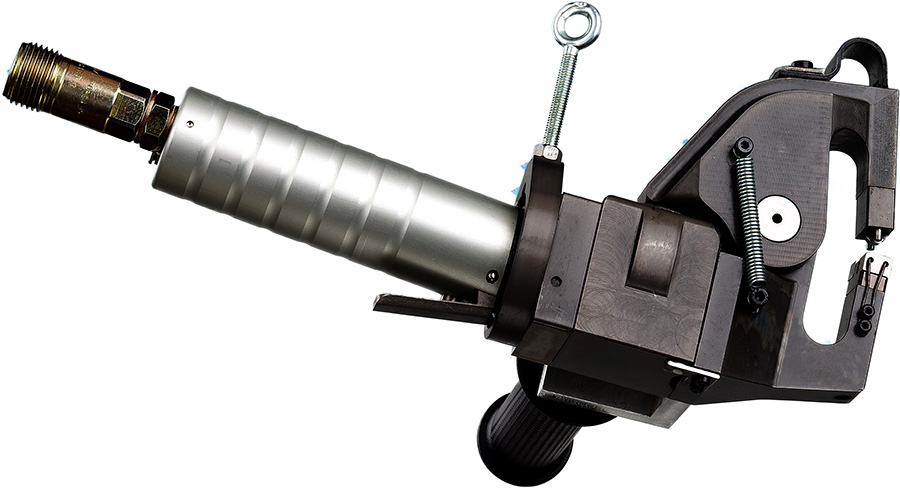

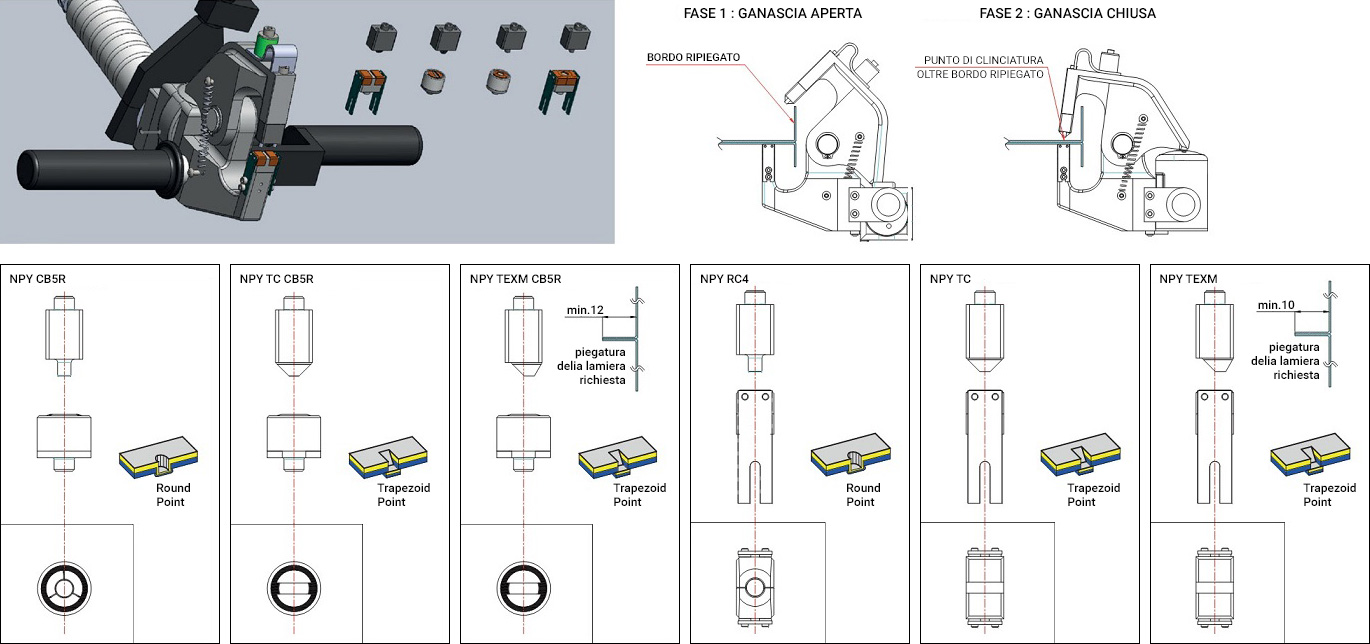

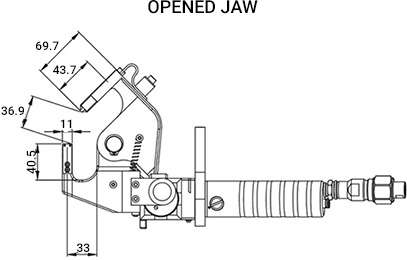

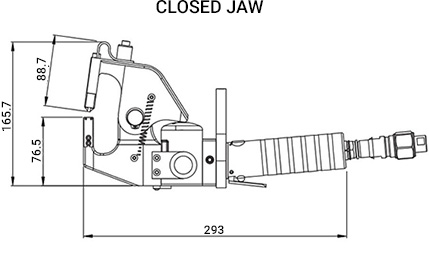

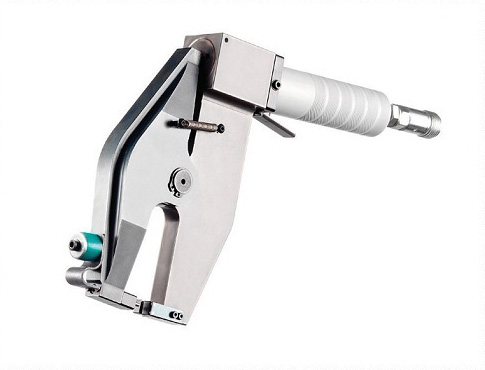

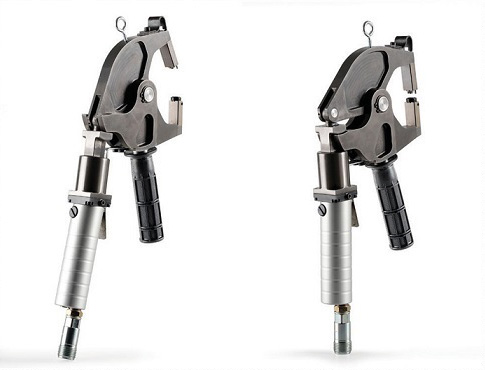

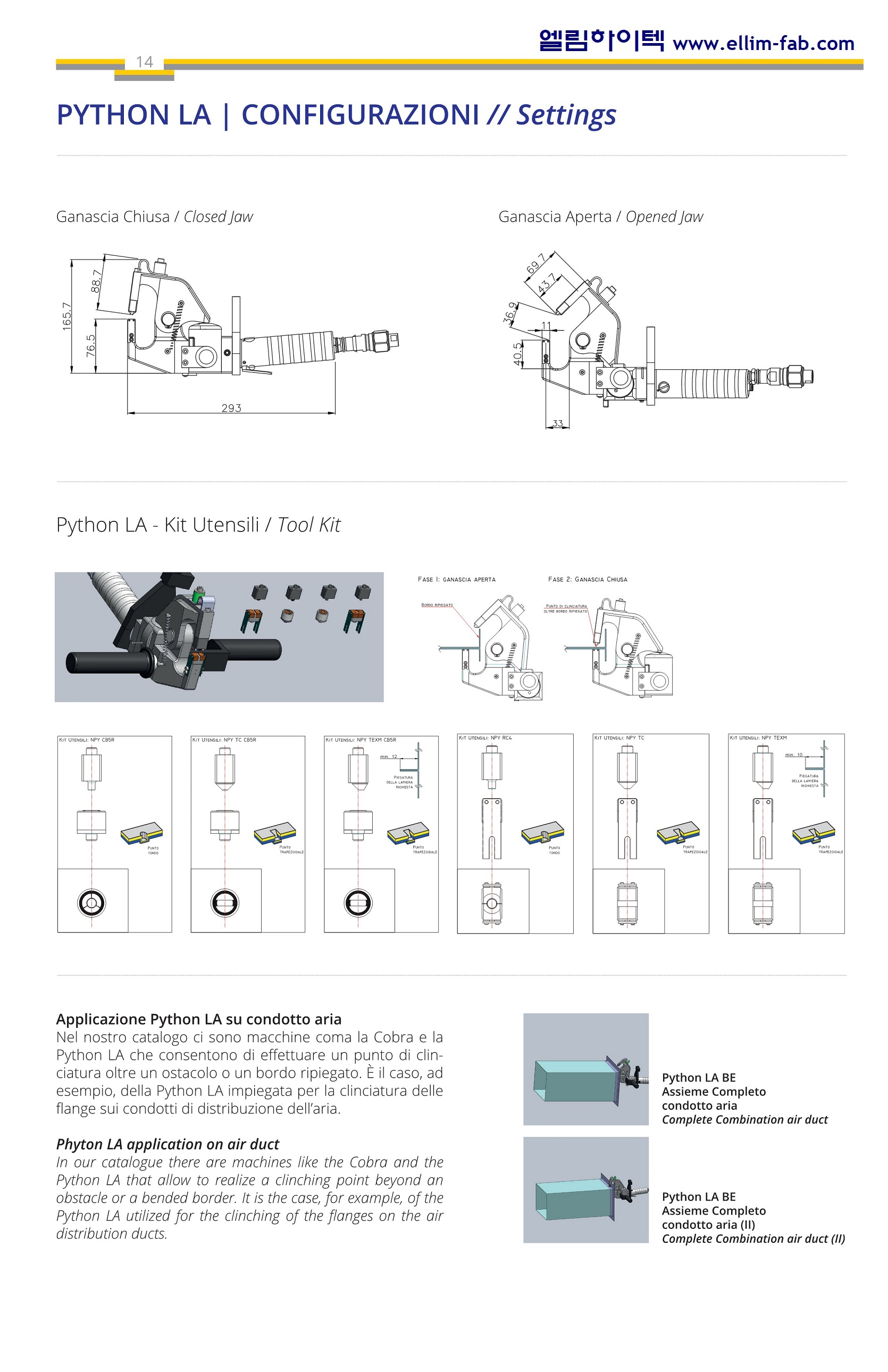

The Python LA is a machine able to perform the clinching points in areas otherwise in accessible for other types of the clamps. Thanks to its system of mechanical opening of the head, the Python LA is capable of passing obstacles such as for example folded edge and perform a clinching point beyond them. The Python LA is able to work with a thrust up to 35 kN which makes it a very powerful machine as well as versatile. It is supplied together with gyroscopic support and can be equipped with tool kits round and trapezoidal with the dies of different height and dimension according to the type and thickness of the sheet metal.
* Also available with working head at 90°.

Phyton LA application on air duct

In our catalogue there are machines like the Cobra and the Python LA that allow to realize a clinching point beyond an obstacle or a bended border. It is the case, for example, of the Python LA utilized for the clinching of the flanges on the air distribution ducts.

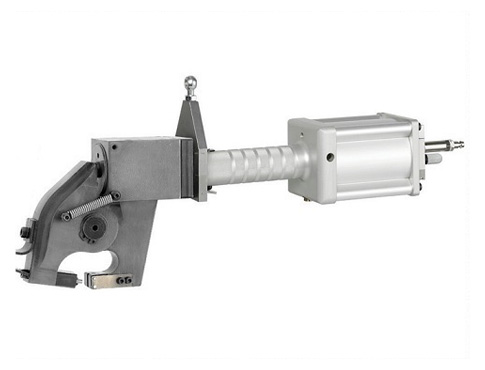

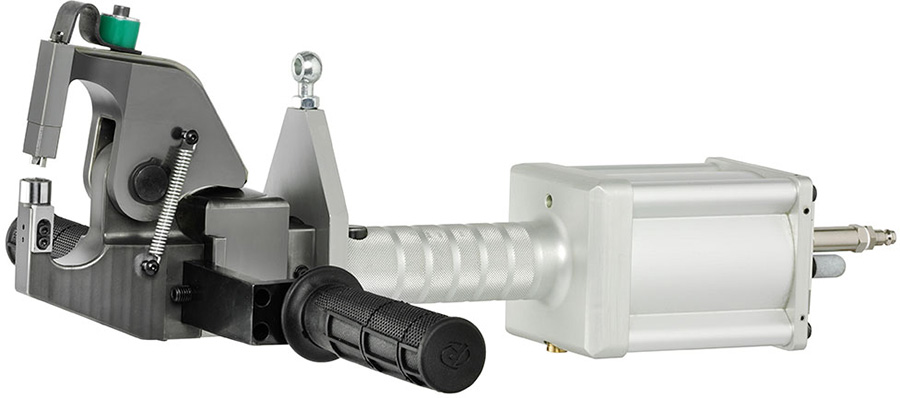

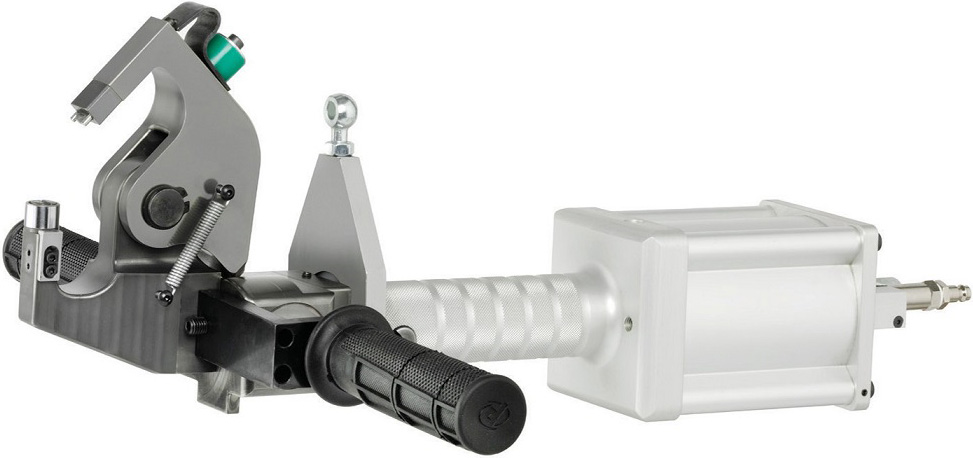

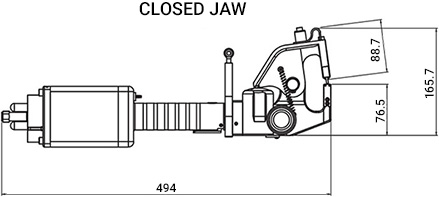

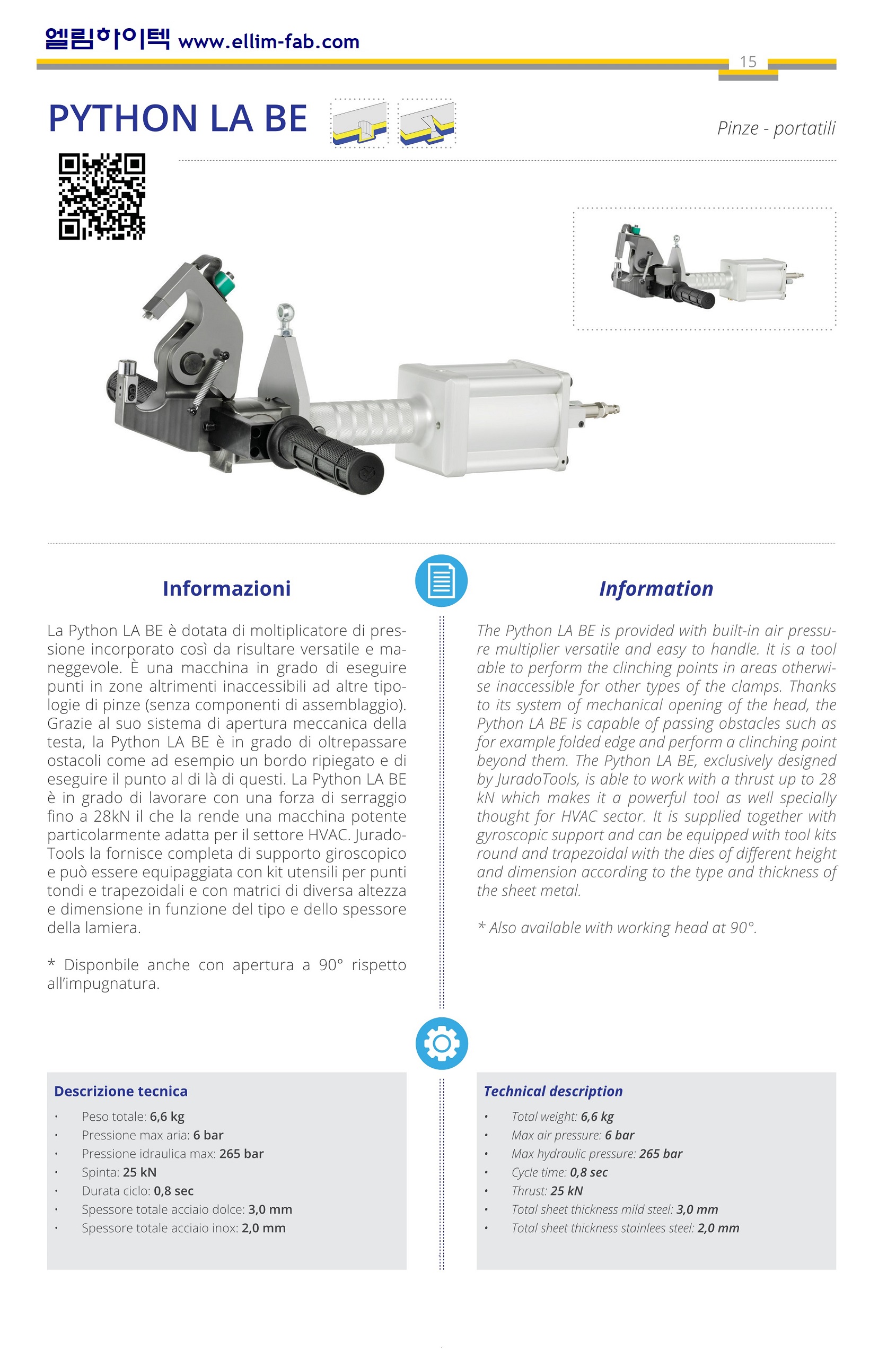

The Python LA BE is provided with built-in air pressure multiplier versatile and easy to handle. It is a tool able to perform the clinching points in areas otherwise inaccessible for other types of the clamps. Thanks to its system of mechanical opening of the head, the Python LA BE is capable of passing obstacles such as for example folded edge and perform a clinching point beyond them. The Python LA BE, exclusively designed by JuradoTools, is able to work with a thrust up to 28 kN which makes it a powerful tool as well specially thought for HVAC sector. It is supplied together with gyroscopic support and can be equipped with tool kits round and trapezoidal with the dies of different height and dimension according to the type and thickness of the sheet metal.
* Also available with working head at 90°.

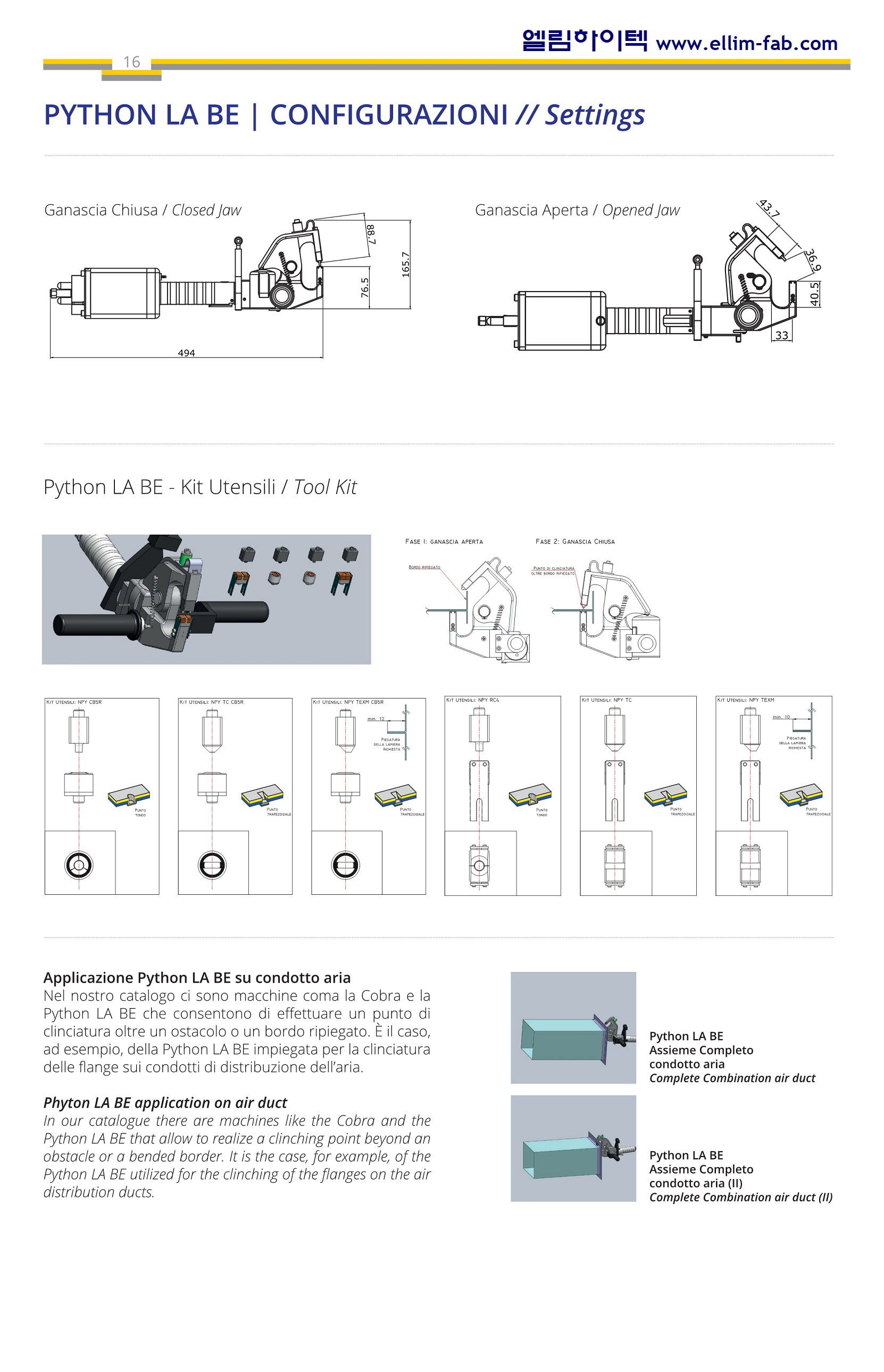

Phyton LA BE application on air duct

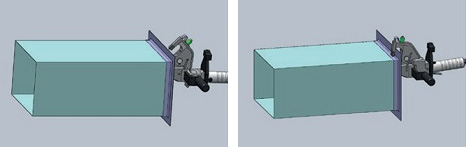

In our catalogue there are machines like the Cobra and the Python LA BE that allow to realize a clinching point beyond an obstacle or a bended border. It is the case, for example, of the Python LA BE utilized for the clinching of the flanges on the air distribution ducts.

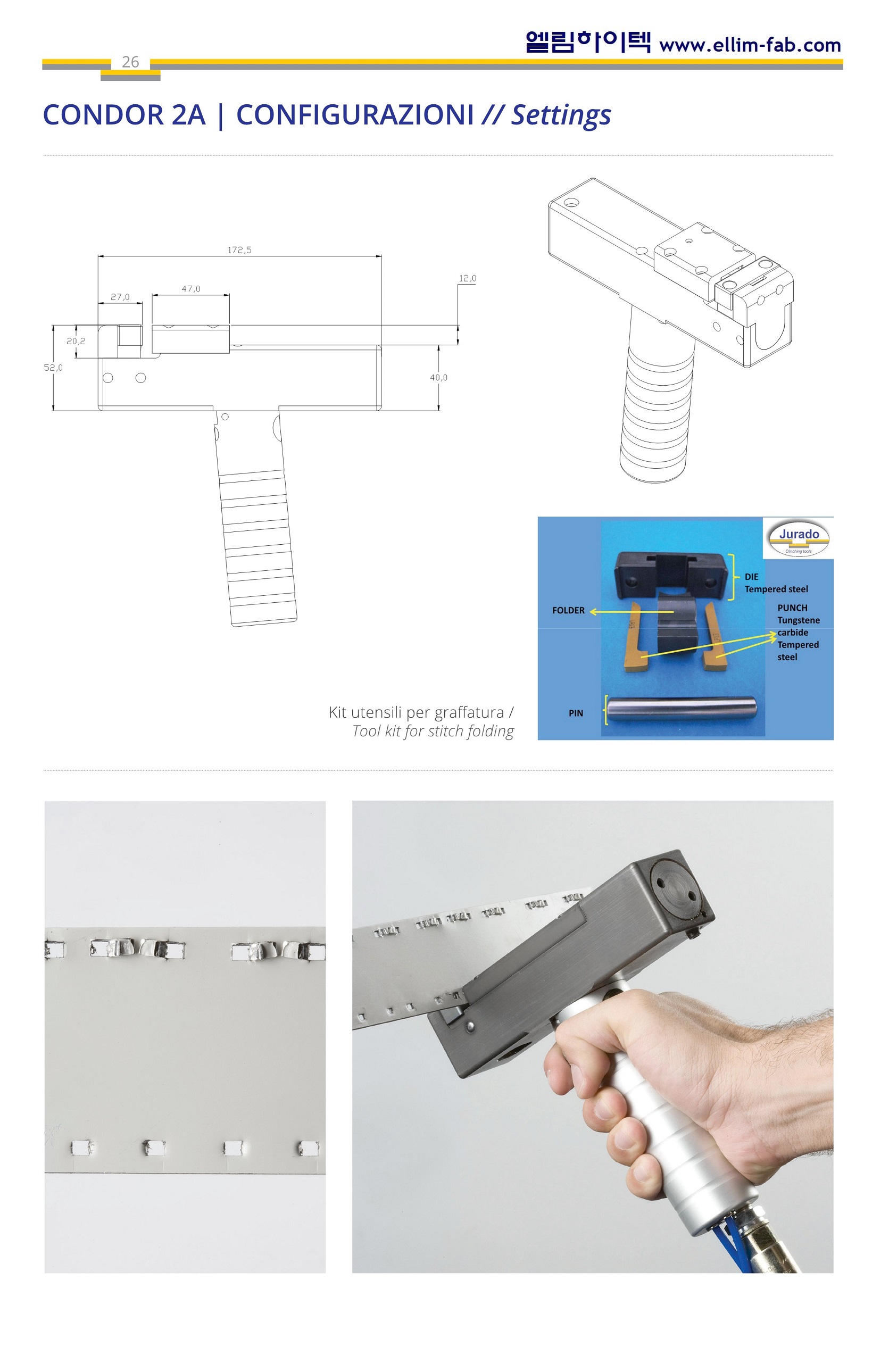

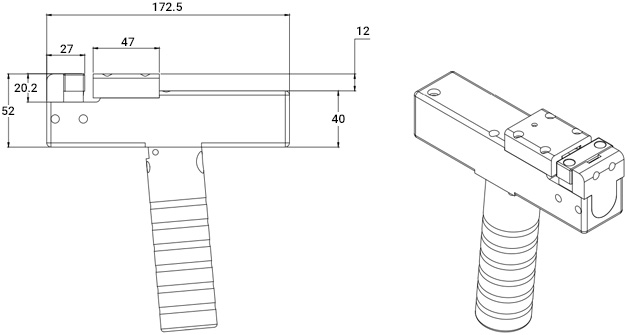

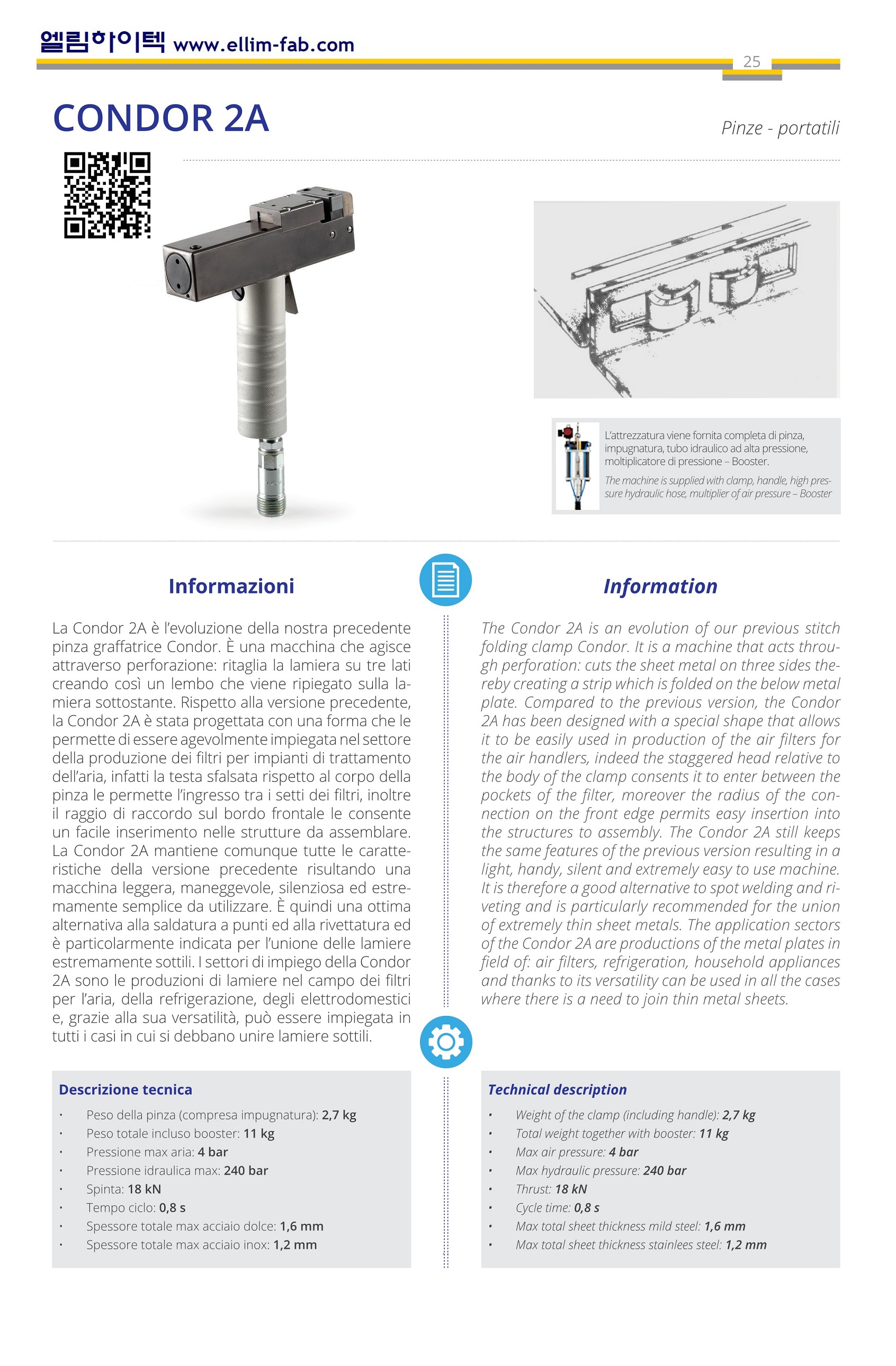

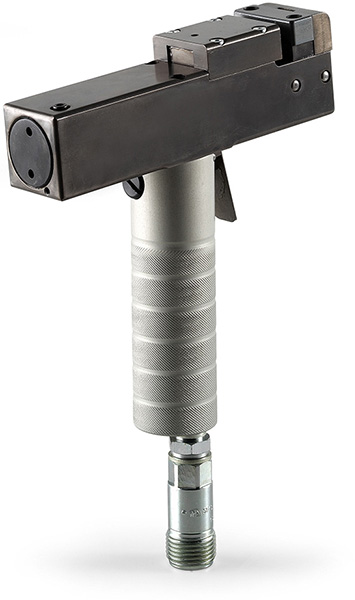

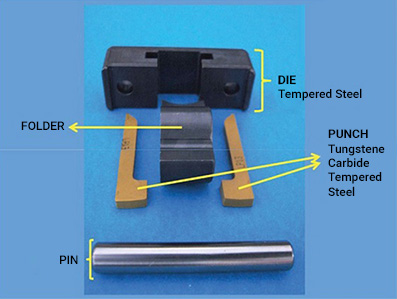

The Condor 2A is an evolution of our previous stitch folding clamp Condor. It is a machine that acts through perforation: cuts the sheet metal on three sides thereby creating a strip which is folded on the below metal plate. Compared to the previous version, the Condor 2A has been designed with a special shape that allows it to be easily used in production of the air filters for the air handlers, indeed the staggered head relative to the body of the clamp consents it to enter between the pockets of the filter, moreover the radius of the connection on the front edge permits easy insertion into the structures to assembly. The Condor 2A still keeps the same features of the previous version resulting in a light, handy, silent and extremely easy to use machine. It is therefore a good alternative to spot welding and riveting and is particularly recommended for the union of extremely thin sheet metals. The application sectors of the Condor 2A are productions of the metal plates in field of: air filters, refrigeration, household appliances and thanks to its versatility can be used in all the cases where there is a need to join thin metal sheets.

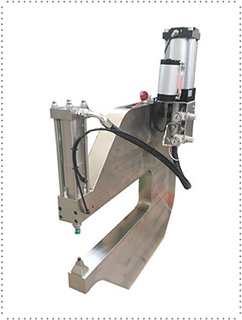

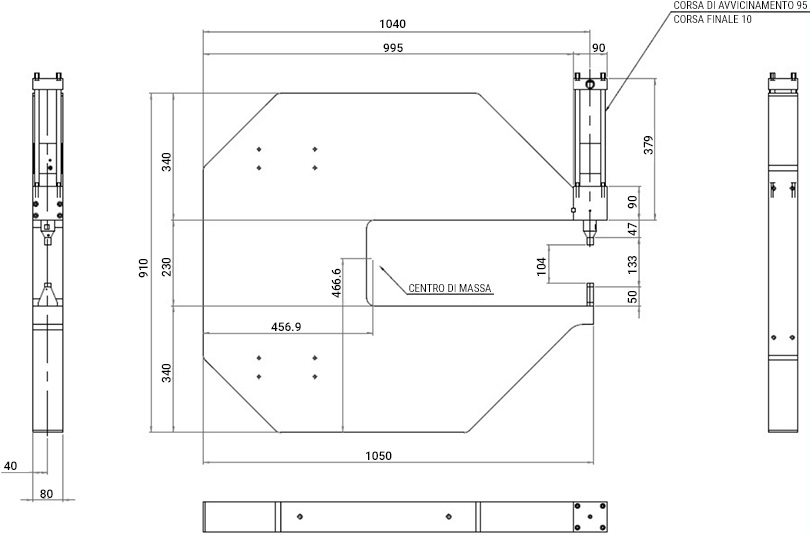

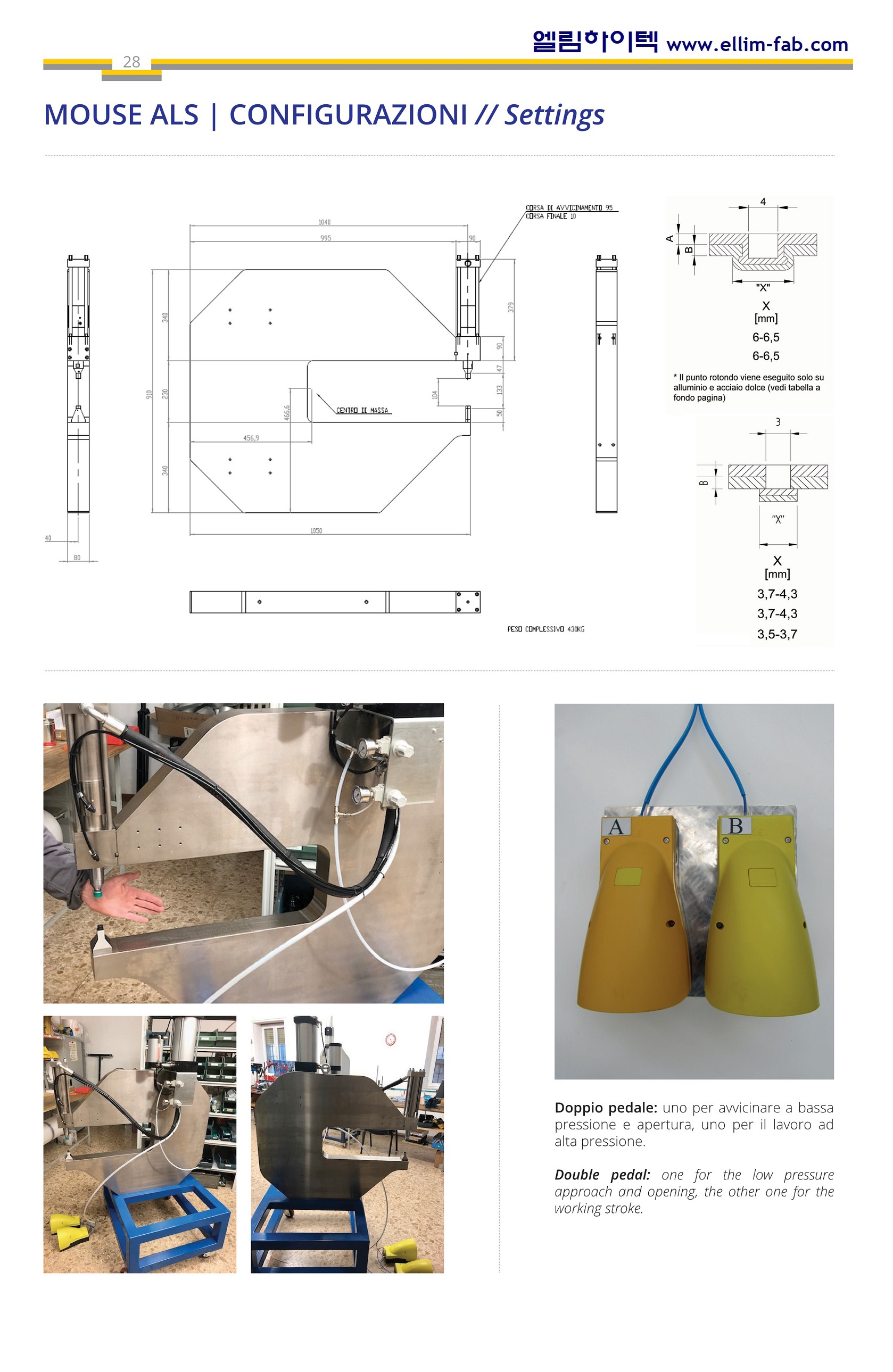

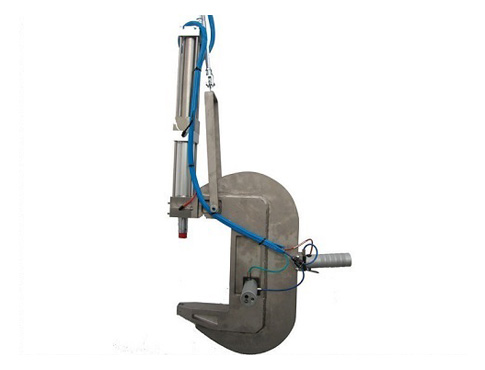

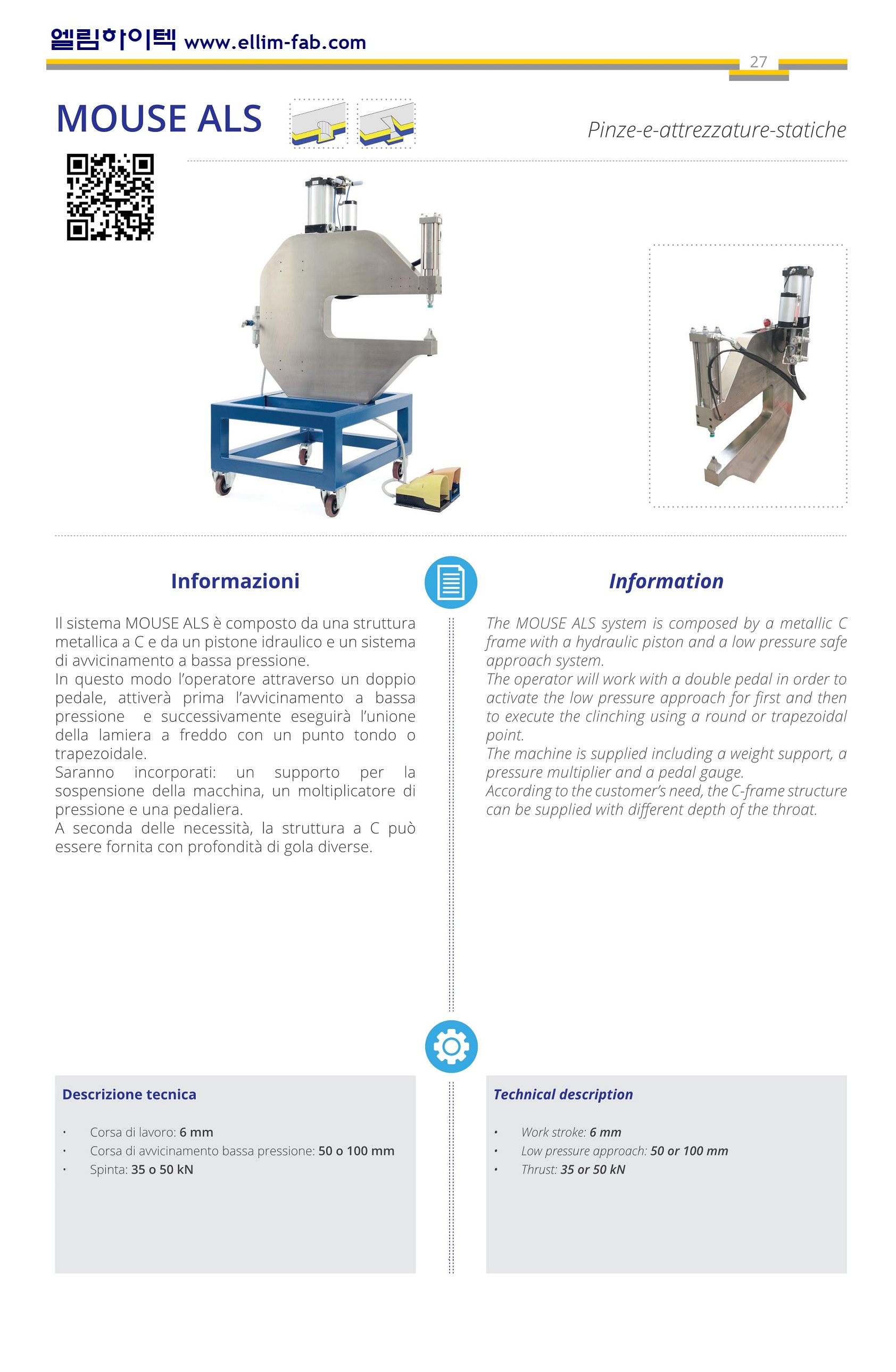

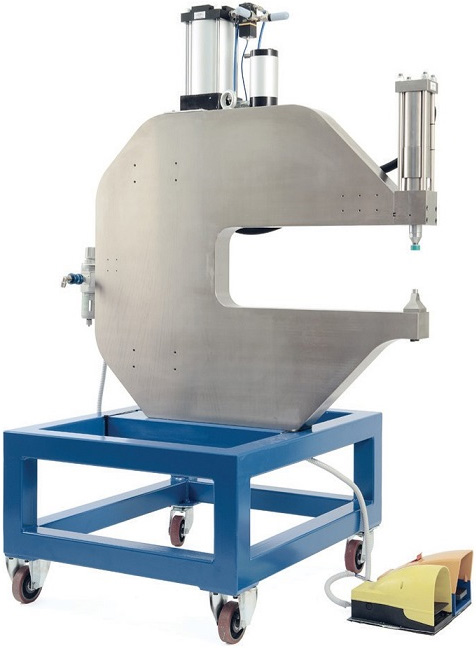

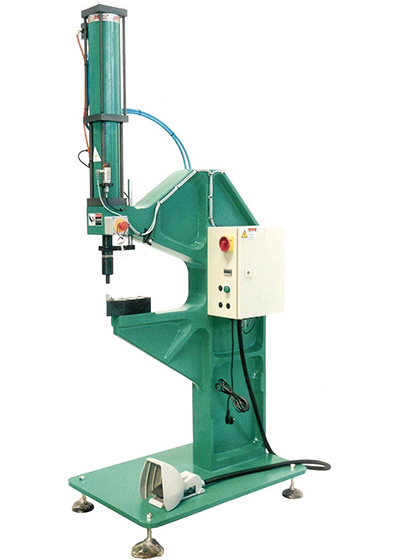

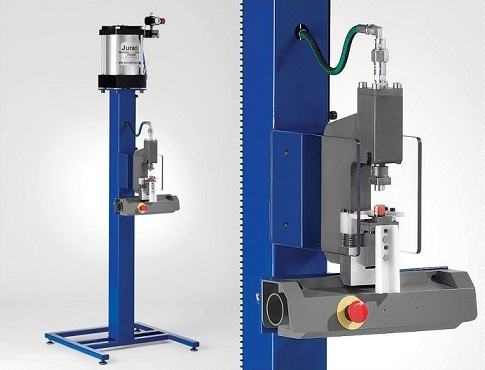

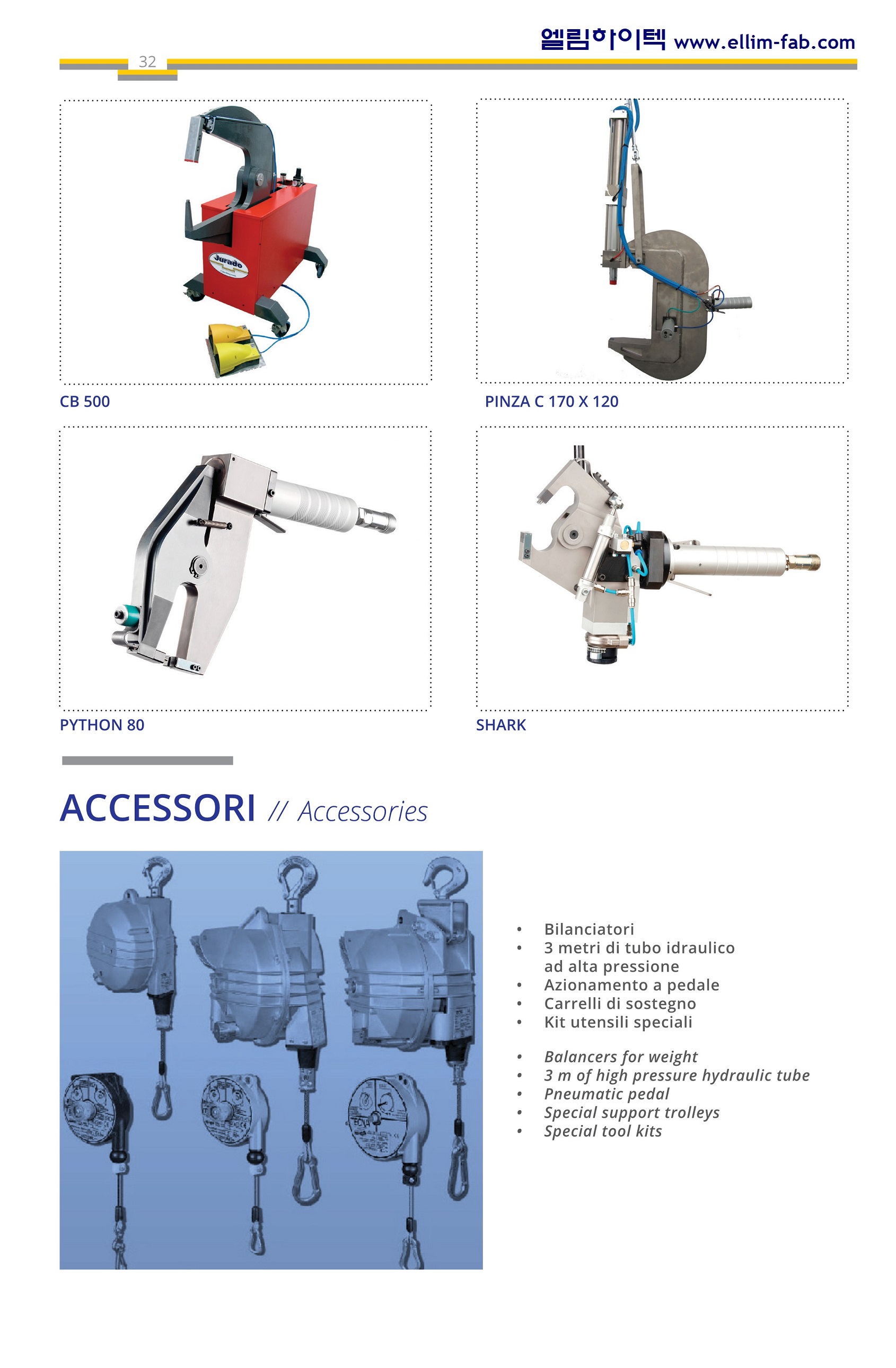

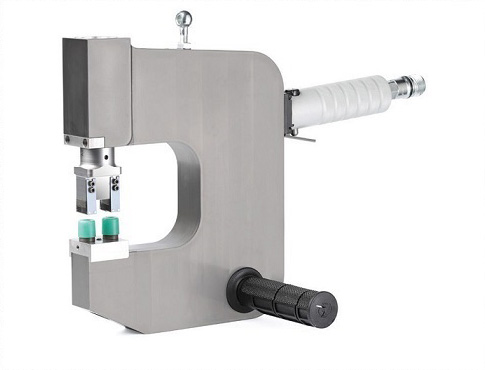

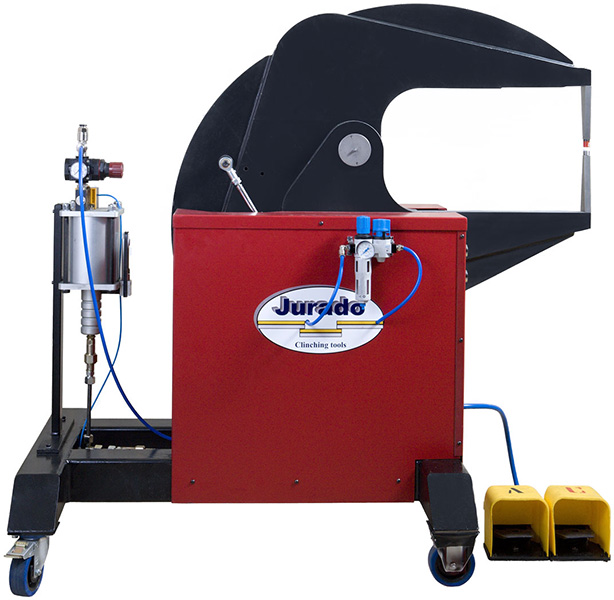

The MOUSE ALS system is composed by a metallic C frame with a hydraulic piston and a low pressure safe approach system. The operator will work with a double pedal in order to activate the low pressure approach for first and then to execute the clinching using a round or trapezoidal point. The machine is supplied including a weight support, a pressure multiplier and a pedal gauge. According to the customer’s need, the C-frame structure can be supplied with different depth of the throat.
